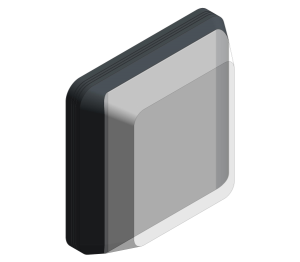

TPB

by Lightronics

Download Add to collection

Description

The TPB is a versatile and compact surface-mounted luminaire with very high light output. The TPB luminaire's housing is impactproof and flame-retardant. It can be fitted with up to three light sources. The TPB can also be easily used as emergency lighting.

Object Data

1 Revision

Last Updated

14/03/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Apparent Load0 VA
Assembly CodeD5020200
Asset TypeFixed
BIM Object NameLightronics_LightingFixture_WallAndCeiling_TPB
Classification NameUniclass 2015
Classification ValuePr_70_70_48_85
Code Performancen/a
ColorHousing: impactproof, flame-retardent, UV-stabilised polycarbonate in white RAL 9010, black RAL 9005 or anthracite RAL7016. Cover: polycarbonate lens, clear prismatic, opal or frosted
Color Filter16777215
Constituentsn/a
Created Byinfo@lightronics.nl
Created On2018-03-06T09:00:00
Default Elevation1219 mm
Depth314 mm
DescriptionThe TPB is a versatile and compact surface-mounted luminaire with very high light output. The TPB luminaire's housing is impactproof and flame-retardant. It can be fitted with up to three light sources. The TPB can also be easily used as emergency lighting.
Dimming Lamp Color Temperature Shift<None>
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2437
Documentation Maintenancen/a
Documentation Technicaln/a
Duration Unit20 Years
Emit from Rectangle Length250 mm
Emit from Rectangle Width250 mm
Emit Shape Visible in RenderingNo
Expected Life10
Featuresn/a
Finishn/a
Graden/a
Height100 mm
Ifc Export AsIfcLightFixtureTypeEnum.POINTSOURCE
Ifc Export TypeIfcLightFixture
KeynoteV90/510
Length314 mm
ManufacturerLightronics
Manufacturer NameLightronics
MaterialImpact proof, flame-retardant, UV-stabilised polycarbonate
ModelTPB
Model NumberTPB
Model ReferenceIP 65
NBS DescriptionSurface luminaires
NBS Object NameLightronics - General purpose luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/405
Nominal Depth314 mm
Nominal Height100 mm
Nominal Length314 mm
Number Of Poles1
Photometric Web FileTPB-OL4-32-6-180-D-F-650-230-X-W.ies
Production Year2018
Referenced Standardn/a
ShapeSquare
Size314x314x100
Spare Partsn/a
Tilt Angle90.00 °
Type CommentsWall and ceiling lighting – Impactproof. Functional and stylishly designed
Type NameTPB
URLwww.lightronics.nl/en/
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@lightronics.nl
Warranty Guarantor Partsinfo@lightronics.nl
