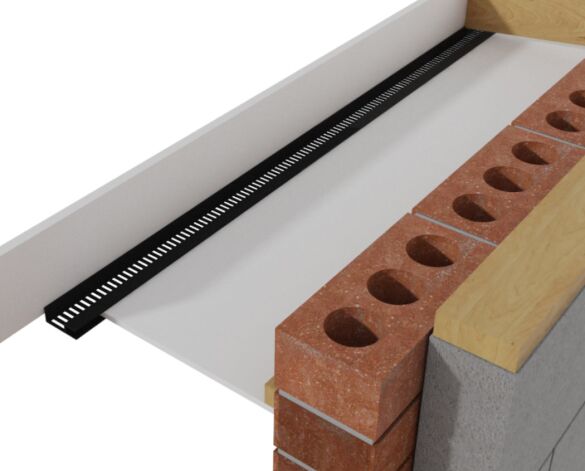

Soffit Vent Type C

Description

Efficient strip type eaves ventilator for use on roofs where the eaves incorporate a soffit board of between 6 and 9mm in thickness.

Uses:

For roof eaves ventilation
On roofs where the eaves incorporate a soffit board
With soffit boards of between 6mm and 9mm in thickness

Free Airflow	Vent Type	Colour	Product Code
10,000mm² per meter	Slot	White	1137WH
10,000mm² per meter	Slot	Brown	1137BR
10,000mm² per meter	Slot	Black	1137BL
25,000mm² per meter	Slot	White	1138WH
25,000mm² per meter	Slot	Brown	1138BR

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

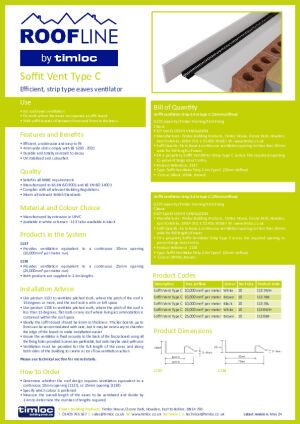

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/7e13ecf1-472c-4f48-ba97-aba269a044e8/document/object-user-guide
1137Yes
1138No
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_SoffitVentTypeC
Classification NameUniclass2015
Classification ValuePr_30_59_94_78
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-12-18T09:00:00
Default Elevation0 mm
DescriptionEfficient strip type eaves ventilator for use on roofs where the eaves incorporate a soffit board of between 6 and 9mm in thickness.
Documentation Certificateswww.bimstore.co/products/7e13ecf1-472c-4f48-ba97-aba269a044e8/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/7e13ecf1-472c-4f48-ba97-aba269a044e8/document/installation-guide
Documentation Literaturewww.bimstore.co/products/7e13ecf1-472c-4f48-ba97-aba269a044e8/document/product-literature
Documentation Maintenancewww.bimstore.co/products/7e13ecf1-472c-4f48-ba97-aba269a044e8/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/7e13ecf1-472c-4f48-ba97-aba269a044e8/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height23 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteG20/900
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialUPVC
ModelSoffit Vent Type C
Model Number1137BL
Model ReferenceSoffit Vent Type C
NBS DescriptionSoffit grilles
NBS Object NameTimloc - Soffit grilles
NBS Office Master Tagn/a
NBS Reference45-20-75/400
Nominal Depth50 mm
Nominal Height23 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardBS EN ISO 9001 and BS EN ISO 14001
Replacement Costn/a
ShapeAngle
Size23mmx50mm
Spare Partsn/a
Type Comments1137BL
Type Name1137BL
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width50 mm
