RTV-ADS | Standard Roof Tile Vent Adapter

Object metadata

• _AuthorRW
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/timloc-rtv-ads/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD3060400
• Asset TypeFixed
• BIM Object NameTimloc_RoofTileVent_StandardAdapter
• Classification NameUniclass2015
• Classification ValuePr_30_59_29
• Code Performancen/a
• ColorBlack
• Constituentsn/a
• Created Bysales@timloc.co.uk
• Created On2023-07-25T09:00:00
• Default Elevation0 mm
• Depth65 mm
• DescriptionDuct adapter for Timloc Large Format Inline Roof Tile Vents.
• Diameter110 mm
• Documentation Certificateswww.bimstore.co/products/timloc-rtv-ads/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/timloc-rtv-ads/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/timloc-rtv-ads/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/timloc-rtv-ads/document/maintenance-information

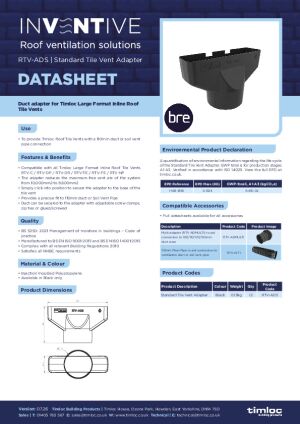

• Documentation Technicalwww.bimstore.co/products/timloc-rtv-ads/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• FeaturesCompatible with all Timloc Large Format Inline Roof Tile Vents RTV-C / RTV-DP / RTV-DR / RTV-TE / RTV-FE / RTV-NP
• Finishn/a
• Graden/a
• Height140 mm
• Ifc Export AsIfcBuildingElementProxyType
• Ifc Export TypeUSERDEFINED
• KeynoteH60
• ManufacturerTimloc Building Products
• Manufacturer NameTimloc Building Products
• MaterialPolypropylene
• ModelRTV-ADS
• Model NumberRTV-ADS
• Model ReferenceBlack
• NBS DescriptionFixed roof ventilators, terminals and accessories
• NBS Object NameTimloc - Fixed roof ventilators, terminals and accessories
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth65 mm
• Nominal Height140 mm
• Nominal Length232 mm
• Production Year2023
• Referenced StandardBS EN 490:2011
• Replacement Costn/a
• ShapeRectangular
• Size140mm x 232mm x 64.5mm x 110mm (dia)
• Spare Partsn/a
• Type CommentsStandard Roof Tile Vent Adapter
• Type NameStandard Roof Tile Vent Adapter
• URLtimloc.co.uk/
• Vent MaterialTimloc_VentTile_Black
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@timloc.co.uk
• Warranty Guarantor Partssales@timloc.co.uk
• Width232 mm
