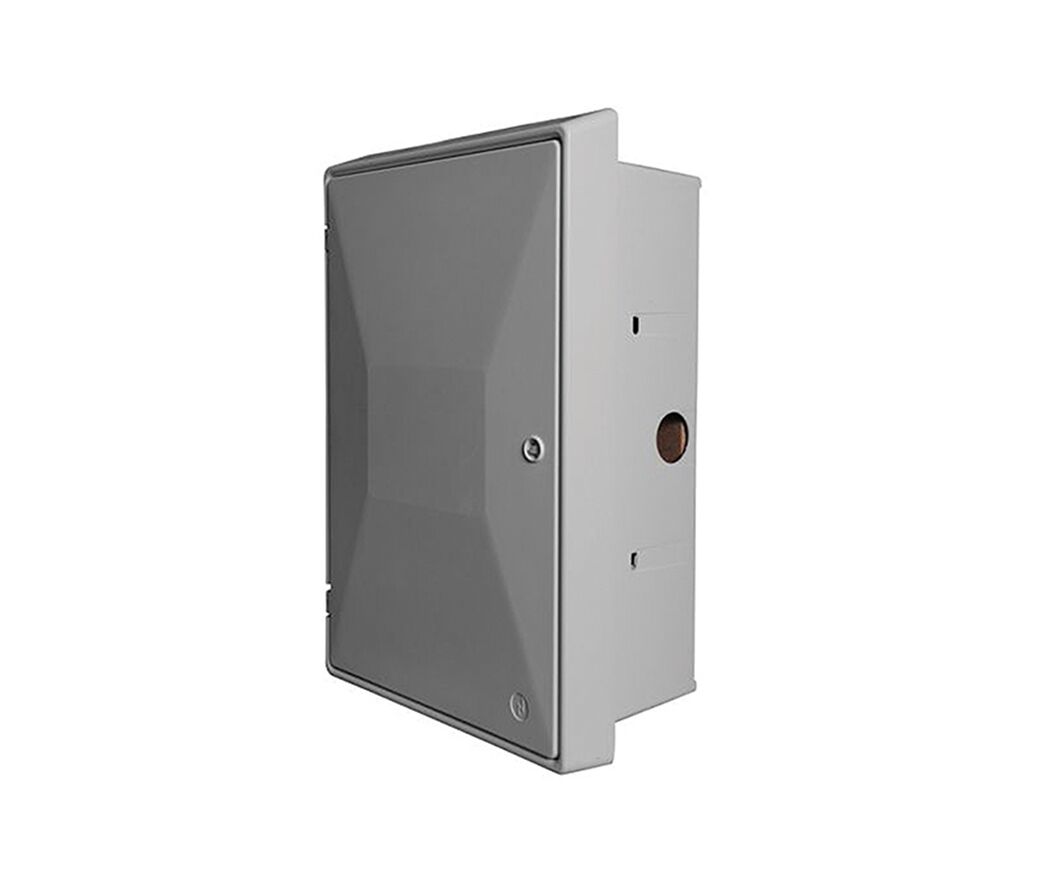

Recessed Electric Meter Box

by Timloc Building Products

Download Add to collection

Description

Recessed electric meter boxes by Timloc are designed to house UK standard domestic electric meters.

Available in single quantities and individually boxed, Meter Boxes by Timloc are available on next-day delivery with no minimum order number required.

Compliant with British Standard BS 8567:2012 and fire retardant to BS 476 Part 7 1997 Class 2.

Uses:

Designed to house UK standard domestic electric meters

Description	Colour	Product Code
Electric meter box – recessed	Off-white	30011
Replacement door - 549 x 383mm	Off-white	30008

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

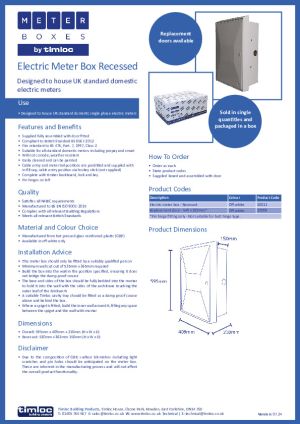

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-recessed-electric-meter-box/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameTimloc_RecessedElectricMeterBox
Classification NameUniclass2015
Classification ValuePr_80_77_28_52
Code Performancen/a
ColorOff-White
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-12-10T09:00:00
Default Elevation1219 mm
Depth210 mm
DescriptionRecessed electric meter boxes by Timloc are designed to house UK standard domestic electric meters. Available in single quantities and individually boxed, Meter Boxes by Timloc are available on next-day delivery with no minimum order number required. Compliant with British Standard BS 8567:2012 and fire retardant to BS 476 Part 7 1997 Class 2.
Documentation Certificateswww.bimstore.co/products/timloc-recessed-electric-meter-box/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-recessed-electric-meter-box/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-recessed-electric-meter-box/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-recessed-electric-meter-box/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-recessed-electric-meter-box/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesSupplied fully assembled with door fitted, Compliant to British Standard BS 8567:2012, Fire retardant to BS 476, Part. 7, 1997, Class 2, Suitable for all standard domestic meters including prepay and smart, Will not corrode, weather resistant, Easily cleaned and can be painted, Cable entry and meter tail positions are predrilled and supplied with in-fill cap, cable entry position via hockey stick (not supplied), Complete with timber backboard, lock and key, Pin hinges on left
Finishn/a
Graden/a
Height595 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialHot Pressed Glass Reinforced Plastic (GRP)
ModelRecessed Electric Meter Box
Model Number30011
Model ReferenceRecessed Electric Meter Box
NBS DescriptionMeter Cabinets
NBS Noten/a
NBS Object NameTimloc - Meter Cabinets
NBS Office Master Tagn/a
NBS Reference90-65-55/405
Nominal Depth210 mm
Nominal Height595 mm
Nominal Length409 mm
Offset100 mm
Primary MaterialTimloc_White
Production Year2024
Referenced StandardBS 8567: 2012
Replacement Costn/a
ShapeRectangle
Size595mm x 409mm x 210mm (H x W x D)
Spare Partssales@timloc.co.uk
Type CommentsRecessed Electric Meter Box
Type NameRecessed Electric Meter Box
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width409 mm
