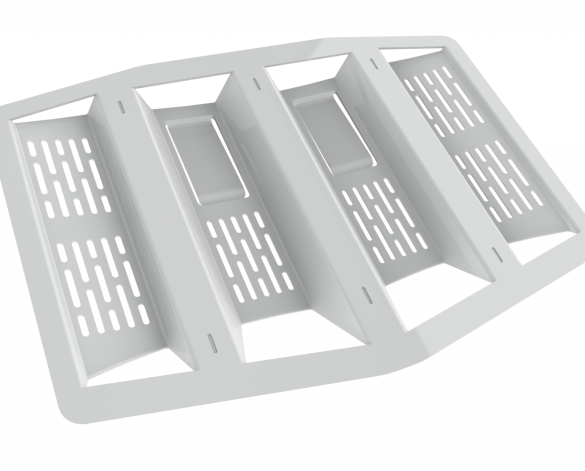

Lap Vent

by Timloc Building Products

Download Add to collection

Description

Refurbishment ventilator for existing roof spaces to increase the level of ventilation in a roof space by separating lap joints in the roofing felt/membrane. Also a remedial solution for combating condensation in cold roof voids and can be fitted retrospectively after increased loft insulation.

Height	Width	Length	Airflow	Colour	Pack Quantity	Product code
19mm	280mm	205mm	3000mm2	White	10	5560

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

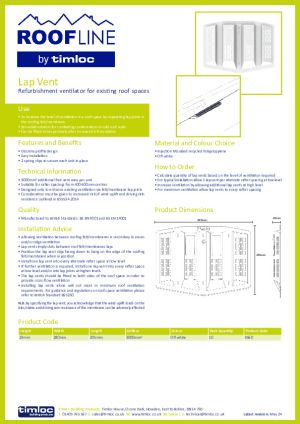

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-lap-vent/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameTimloc_LapVent
Classification NameUniclass2015
Classification ValuePr_30_59_29_82
Code Performancen/a
ColorOff-White
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-12-10T09:00:00
Default Elevation1219 mm
DescriptionRefurbishment ventilator for existing roof spaces to increase the level of ventilation in a roof space by separating lap joints in the roofing felt/membrane. Also a remedial solution for combating condensation in cold roof voids and can be fitted retrospectively after increased loft insulation.
Documentation Certificateswww.bimstore.co/products/timloc-lap-vent/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-lap-vent/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-lap-vent/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-lap-vent/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-lap-vent/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesDiscrete profile design, Easy installation, 2 spring clips to secure each unit in place
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelLap Vent
Model Number5560
Model ReferenceLap Vent
NBS DescriptionStrip ventilators
NBS Noten/a
NBS Object NameTimloc - Strip ventilators
NBS Office Master Tagn/a
NBS Reference45-20-75/410
Nominal Depth280 mm
Nominal Height19 mm
Nominal Length205 mm
Primary MaterialTimloc_White
Production Year2024
Referenced StandardBS EN 9001 and BS EN 14001
Replacement Costn/a
ShapeRectangle
Size19mm x 280mm x 205mm (H x W x L)
Spare Partssales@timloc.co.uk
Type CommentsLap Vent
Type NameLap Vent
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
