Everdry Stepped Cavity Trays for Brickwork - Lead Attached

Description

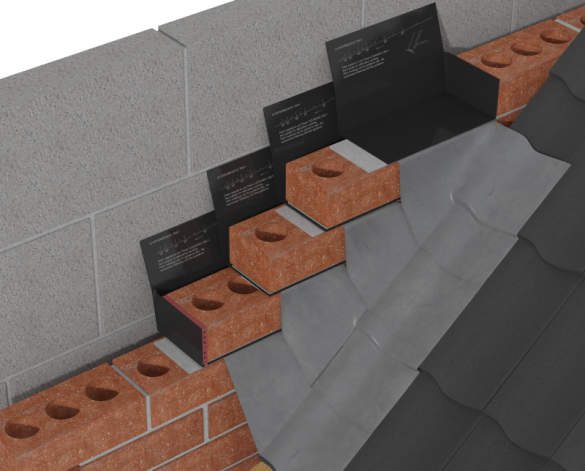

BBA-approved stepped leaded cavity tray system for multi cavity options in brick wall construction of 75mm coursing heights.

Everdry preformed cavity trays are a range of DPC products for installation at the abutment of a pitched roof with a cavity wall to prevent water penetration. All Everdry cavity tray components are designed to comply fully with the requirements set out in Building Regulations, British Standards and the NHBC.

Uses:

At the abutment of a pitched roof with a cavity wall
On external walls – not exceeding 120mm thickness – built from standard brickwork or similar sized components with regular course heights, including mortar of approx. 75mm
On roof pitches of 15 degrees and above
Clear cavity widths of between 50mm-110mm

Description	Length	Handing	Product codes
Intermediate tray	Varies	RH	20001
Intermediate tray	Varies	LH	20002
Stopend starter tray	225mm	RH/LH	20031/32
Corner starter tray	225mm	RH/LH	20041/42
Ridge tray	225mm	N/A	20061
Ridge tray	420mm	N/A	20062

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

28/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

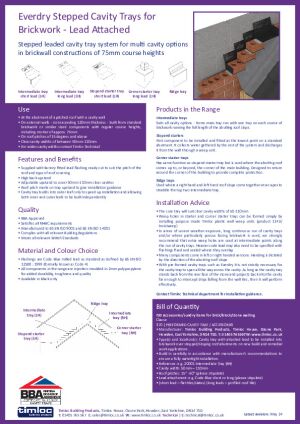

Technical Data Sheet
