Everdry Stepped Cavity Trays for Blockwork - Lead Attached

Description

BBA-approved stepped leaded cavity tray system for blockwork or stonework construction of 225mm coursing heights.

Everdry preformed cavity trays are a range of DPC products for installation at the abutment of a pitched roof with a cavity wall to prevent water penetration. All Everdry cavity tray components are designed to comply fully with the requirements set out in Building Regulations, British Standards and the NHBC.

Uses:

At the abutment of a pitched roof with a cavity wall
Clear cavity widths of between 50mm-125mm

Description	Length	50-74mm (W)	75-99mm (W)	100-125mm (W)
Intermediate tray RH	Varies	8201	8203	8205
Intermediate tray LH	Varies	8202	8204	8206
Stopend starter tray RH	450mm	8231	8233	8235
Stopend starter tray LH	450mm	8232	8234	8236
Corner starter tray RH*	550mm	7241	7243	7245
Corner starter tray LH	550mm	7242	7244	7246
Ridge tray	450mm	8261	8262	8263

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

28/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

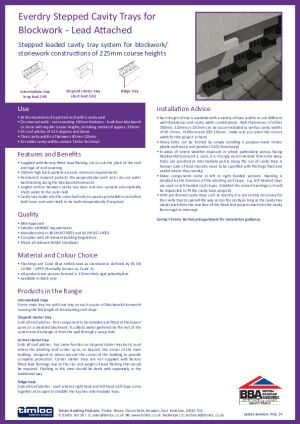

Technical Data Sheet
