Everdry Adjustable Stepped Cavity Trays for Brickwork

Description

BBA-approved stepped cavity tray system for multi cavity options in brick wall construction of 75mm coursing heights.

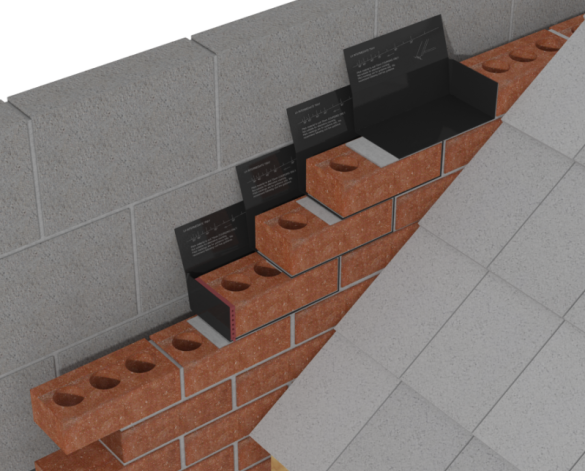

Everdry preformed cavity trays are a range of DPC products for installation at the abutment of a pitched roof with a cavity wall to prevent water penetration. All Everdry cavity tray components are designed to comply fully with the requirements set out in Building Regulations, British Standards and the NHBC.

Uses:

At the abutment of a pitched roof with a cavity wall
On external walls – not exceeding 120mm thickness – built from standard brickwork or similar sized components with regular course heights, including mortar of approximately 75mm
On roof pitches of 15 degrees and above
Clear cavity widths of between 50mm-110mm

Description	Length	Handing	Product Codes
Intermediate tray	225mm	RH	10001
Intermediate tray	225mm	LH	10002
Intermediate tray	420mm*	RH	10011
Intermediate tray	420mm*	LH	10012
Stopend starter tray	225mm	RH/LH	10031
Corner starter tray	225mm	RH/LH	10041
Ridge tray	225mm	N/A	10061
Ridge tray	420mm	N/A	10062

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

28/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

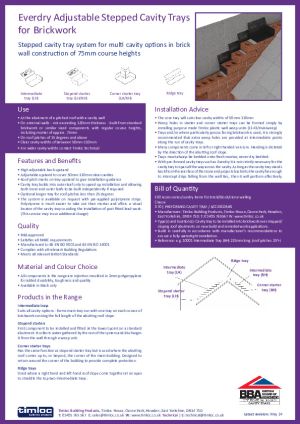

Technical Data Sheet
