bimstore - Timloc Building Products - 4001 | Universal Hooded Slate Vent

234
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

01/09/2023

Download BIM

Add to collection

Available for:

For use on new build and existing roof applications. Intended to replace one normal roof slate and suits slate sizes of either 600mm x 300mm or 500mm x 250mm.

Use:

For replacement of one normal roof slate to provide a ventilator
Ventilating a roof space at low level or high level
Connection to mechanical extraction from kitchen/bathrooms
Ventilation outlet for soil vent pipe

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-4001/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3060400
Asset TypeFixed
BIM Object NameTimloc_RoofTileVent_UniversalHoodedSlateVent
Classification NameUniclass2015
Classification ValuePr_30_59_29_73
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2023-07-25T09:00:00
Default Elevation0 mm
Depth45 mm
DescriptionFor use on new build and existing roof applications. Intended to replace one normal roof slate and suits slate sizes of either 600mm x 300mm or 500mm x 250mm.
Documentation Certificateswww.bimstore.co/products/timloc-4001/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-4001/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-4001/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-4001/document/maintenance-information

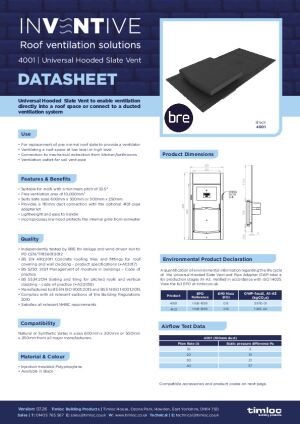

Documentation Technicalwww.bimstore.co/products/timloc-4001/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesSuitable for roofs with a minimum pitch of 22.5°
FinishTextured
Graden/a
Height600 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH60/840
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
Model4001
Model Number4001
Model ReferenceBlack
NBS DescriptionRoof slope ventilator tiles
NBS Object NameTimloc - Roof slope ventilator tiles
NBS Office Master Tagn/a
NBS Reference45-20-75/375
Nominal Depth45 mm
Nominal Height600 mm
Nominal Length300 mm
Production Year2023
Referenced StandardBS EN 490:2011
Replacement Costn/a
ShapeRectangular
Size600mm x 300mm x 45mm
Spare Partsn/a
Type CommentsUniversal Hooded Slate Vent
Type NameUniversal Hooded Slate Vent
URLtimloc.co.uk/
Vent MaterialTimloc_VentTile_Black
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width300 mm
