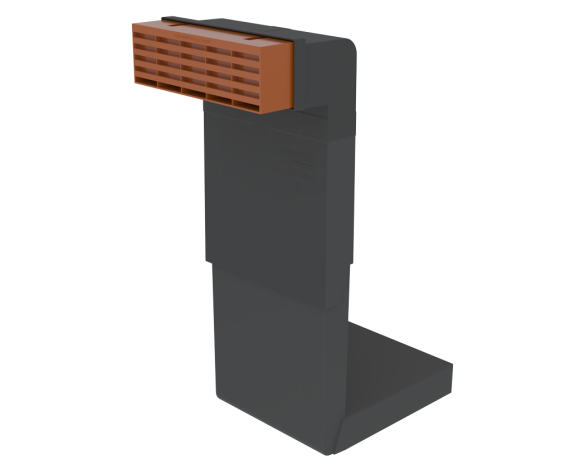

1201XL+ Telescopic Underfloor Vent 5-7 Courses 150mm+ Cavities

by Timloc Building Products

Download Add to collection

Description

Adjustable ventilator to provide ventilation beneath suspended ground floors between 5-7 brick courses.

The vertical height of the ventilator unit adjusts to suit between 5 and 7 brick courses (375mm-525mm) with a minimum cavity width of 50mm.

We have an extensive range of easy-to-fit horizontal and vertical extension accessories, that do not restrict airflow, to adapt the unit for various applications.

Uses:

To provide ventilation below suspended ground floors
Suited for 150mm+ cavity width construction
Also compatible down to 50mm clear cavity width

Product Description	Free Airflow	Pack Quantity	Product Code
1201XL+ Telescopic Underfloor Ventilator	8000mm²	10	1201XLPLUS

Click here to visit the product page on Timloc

Object Data

1 Revision

Last Updated

19/12/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

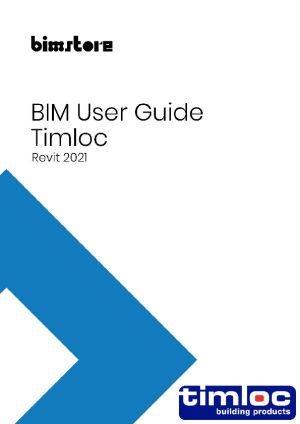

Object User Guide

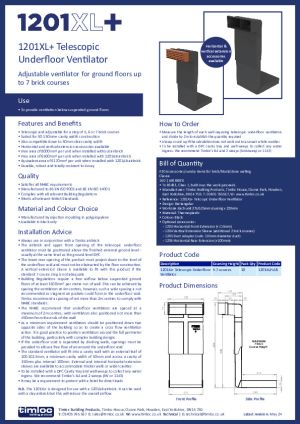

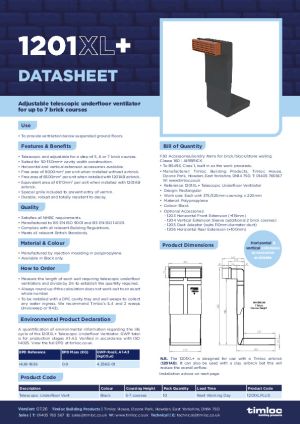

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRW
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-1201xl/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB2010
Asset TypeFixed
BIM Object NameTimloc_TelescopicUnderfloorVent_1201XL
Classification NameUniclass2015
Classification ValuePr_35_90_50_03
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2023-07-25T09:00:00
Default Elevation0 mm
Depth60 mm
DescriptionAdjustable ventilator to provide ventilation beneath suspended ground floors between 5-7 brick courses. With incorporated grille to prevent vermin entry.
Documentation Certificateswww.bimstore.co/products/timloc-1201xl/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-1201xl/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-1201xl/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-1201xl/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-1201xl/document/technical-data-sheet
Duration UnitYear
Expected Life0
FeaturesTelescopic and adjustable for a step of 3, 4 or 5 brick courses
Finishn/a
Graden/a
Height69 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteF30/175
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolypropylene
ModelTelescopic Underfloor Ventilator
Model Number1201XL
Model ReferenceTelescopic Underfloor Ventilator
NBS DescriptionAirbricks
NBS Object NameTimloc - Airbricks
NBS Office Master Tagn/a
NBS Reference45-80-50/370
Nominal Depth60 mm
Nominal Height69 mm
Nominal Length215 mm
Production Year2023
Referenced StandardBS EN ISO 9001 and BS EN ISO 14001
Replacement Costn/a
ShapeRectangular
Size220mm x 150mm x 375/525mm
Spare Partsn/a
Type Comments1201 XL
Type Name1201XL Telescopic Underfloor Ventilator
URLtimloc.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width215 mm
