1201 Top Hat

Description

Top hat collar for sealing telescopic underfloor vent, where gas protection is required. Designed for use with 1201 and 1201XL Telescopic Underfloor Ventilators.

Uses:

When gas protection is required
Suitable for Radon, Hydrocarbon, Methane and CO2

Description	Colour	Product Code
1201 top hat	Black	77120
Gastite sealing tape 10m x 100mm	-	GTAPE01
Girth tape 50m x 72mm	-	GTAPE02

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

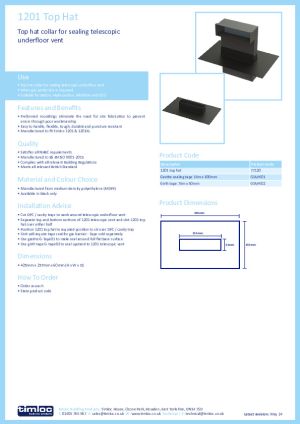

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-1201-top-hat/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB2010
Asset TypeFixed
BIM Object NameTimloc_TopHatCollar_TelescopicUnderfloorVent_1201
Classification NameUniclass2015
Classification ValuePr_35_90_30_64
Code Performancen/a
Collar Height46 mm
Collar Width220 mm
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
Depth60 mm
DescriptionTop hat collar for sealing telescopic underfloor vents where gas protection is required.
Documentation Certificateswww.bimstore.co/products/timloc-1201-top-hat/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-1201-top-hat/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-1201-top-hat/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-1201-top-hat/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-1201-top-hat/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height257 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteJ42/480
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialPolyethylene
Model1201 Top Hat
Model Number1201
Model Reference1201 Top Hat
NBS DescriptionPolyethylene (PE)-based flashings
NBS Object NameTimloc - Polyethylene (PE)-based flashings
NBS Office Master Tagn/a
NBS Reference45-75-35/360
Nominal Depth60 mm
Nominal Height257 mm
Nominal Length425 mm
Plate Tk2 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardSatisfies all NHBC requirements. Manufactured to BS EN ISO 9001-2015. Complies with all relevant Building Regulations. Meets all relevant British Standard.
Replacement Costn/a
ShapeRectangular
Size425 (W) x 257 (H) x 60 (D)
Spare Partsn/a
Type Comments1201 Top Hat
Type Name1201 Top Hat
URLtimloc.co.uk/products/1201-top-hat/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
Width425 mm
