Thermatile Plus Radiant Panel

  • Thermatile Plus Radiant Panel
  • Thermatile Plus Radiant Panel
  • Thermatile Plus Radiant Panel
  • Thermatile Plus Radiant Panel
  • Thermatile Plus Radiant Panel
  • Thermatile Plus Radiant Panel
  • Views 5.4k
  • Comments 1
  • Rating3.5 / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

3 Revision

Last Updated

05/06/2019

Available for:
  • Logo: Autodesk Revit

The ThermaTile Plus is a radiant ceiling panel consisting of a special corrugated aluminium panel of patented design and a continuous copper tube fixed in a serpentine arrangement upon the upper surface. Low pressure hot water feeds through the circuit and transfers heat to the lower, emission surface for comfort heating via radiant transmission.

This download is for the Thermatile Plus Radiant Panel components and includes the following range types;

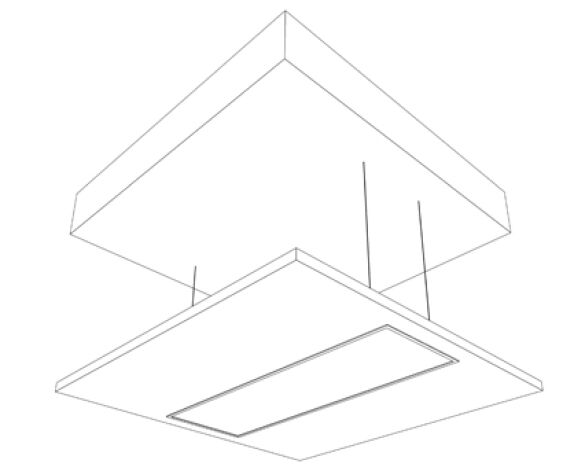

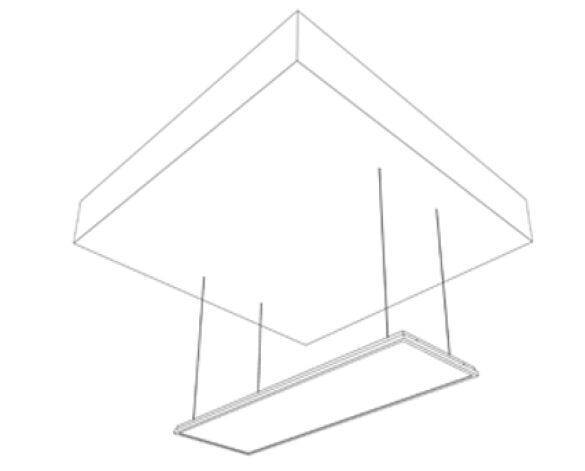

Ceiling Grid & Free Hanging.

Rev 02 - Parameter update.

Rev 03 - Connector position amended.

Read more

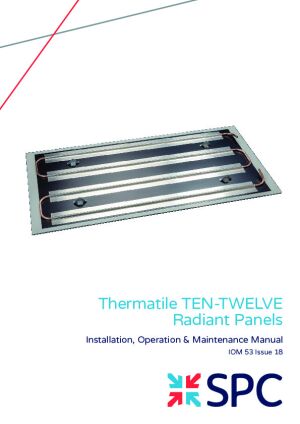

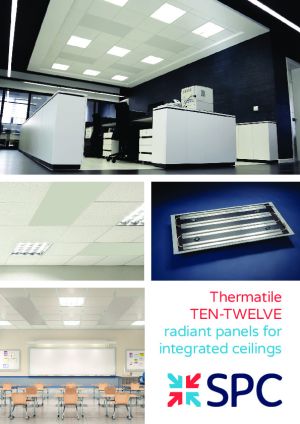

Accompanying literature
