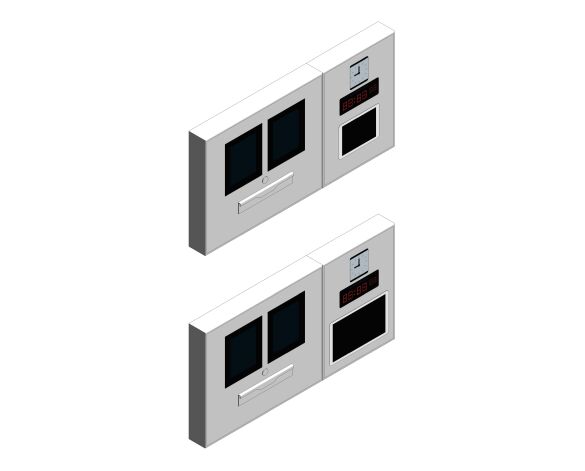

TCP Touch Control Panel

Description

Displaying and visualizing system status, warning and alarm messages. Control and parameterize equipment from a central location. Output of visible and audible alarms. Display of actual values and programming of limit values for the purpose of monitoring.

Object Data

1 Revision

Last Updated

31/07/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
0-10 V Analogue Electrical Isolation500 V system to supply
0-10 V Analogue Internal Resistance> 100 kΩ
0-10 V Analogue Max.Input Voltage40 V
0-10 V Analogue Resolution12 bit
0-10 V Analogue Signal Voltage0…10 V
Accessibility Performancen/a
Assembly CodeD3010
Asset TypeFixed
Back Ground Lightn/a
Bezel Frame Depth Adjustmentmax. +20 mm
Bezel Heightmin. 400…650 mm
Bezel Widthmin. 615…950 mm
BIM Object NameBenderUK_ElectricalEquipment_TPCTouchControlPanel
Brightness328 cd/m² min
Classification NameUniclass2015
Classification ValuePr_60_70
Code Performancen/a
ColorRAL 7035 (light grey)
Connection Typecage clamp
Constituentsn/a
Contrast700:1
CPUAtom 1,1 GHz
Created Byinfo@bender-uk.com
Created OnSeptember2016
DC24 V Digital Inputs Electrical Isolation500 V system to supply
DC24 V Digital Inputs Input Current2.8 mA
DC24 V Digital Inputs Signal Voltage 0DC -3…+5 V
DC24 V Digital Inputs Signal Voltage 1DC 15…30 V
DC24 V Digital Outputs Electrical Isolation500 V system to supply
DC24 V Digital Outputs Loadohmic, inductive, lamp load
DC24 V Digital Outputs Output Currentmax. 0.5 A short circuit proof
DC24 V Digital Outputs Voltage Across ContactsDC 24 V (-25…+30 %)
Default Elevation0 mm
Depth150 mm
DescriptionAll Bender UK floor-standing IPS systems are supplied as complete factory tested systems, including incoming isolator, isolation transformer, insulation monitor, Earth Fault Detection System and all of the outgoing breakers.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/1826
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/1826
Duration UnitMonths
Expected Life0
Extidentifiern/a
FeaturesIncoming isolator, isolation transformer, insulation monitor, Earth Fault Detection System
Finishn/a
Frame14 mm
Frequency Range50…60 Hz
Graden/a
GraphicDVI (1024x768)
Height900 mm
Input Current700 mA
Interfaces4 x USB, HD Audio
Internal Voltage DC24 V
KeynoteV12
LAN1 x 10/100/1000 Mbit/s
ManufacturerBender UK
Manufacturer NameBender UK
Mass Storage2 GB, Compact Flash Type I, Ind. Grade
MaterialSheet Steel
Max.Cable Length100 m between hub and controller; max. network length limited accord. to ETHERNET specs
Max.Image Area304 x 228 mm
ModelTouch Control Panel
Model Number15" TCP - Touch Control Panel
Model ReferenceTouch Control Panel
Monitor 1x 19MonitorSystem : 1x19"
Monitor 1x 21MonitorSystem : 1x21"
Monitor 1x 42MonitorSystem : 1x42"
Monitor 2x 19MonitorSystem : 2x19"
Monitor 2x 21MonitorSystem : 2x21"
NBS DescriptionPower supply products
NBS Object NameBender UK Power supply products
NBS Office Master Tagn/a
Nominal Depth150 mm
Nominal Height900 mm
Nominal Length1912 mm
Number Of Coloursn/a
Offset150 mm
Pixel0.297 x 0.297 mm
Power Consumption≤ 30 VA
Power SupplyWide Range DC 5…25 V
Production Year2016
ProgrammingWAGO-I/O-PRO CAA, IEC 61131-3 AWL, KOP, FUP, ST, AS
ProtocolsModbus TCP (UDP), ETHERNET/IP, HTTP, BootP, DHCP, DNS, SNTP, FTP, SNMP
Qty Of Controllers W/A Masteraccord. to ETHERNET specs
RAM2 GB
Referenced Standardn/a
Replacement Cost0
Resolution1024 x 768 max. Pixel
Response Timen/a
ShapeRectangular (Vertical)
Size1912 x 900 x 232
Size 15"Yes
Size 22"No
Spare Partsn/a
Speakers Offset180 mm
Speed10/100 Mbit/s
Supply Voltage AC230 V
Tag Numbern/a
TCP MaterialBenderUK-Steel-LightGrey
Type Comments15" TCP - Touch Control Panel
Type Name15" TCP - Touch Control Panel
URLwww.bender-uk.com/
Viewing Anglehor./ver.: 80° / 70°
Wall Box Depthmin.150 mm
Warranty Descriptionn/a
Warranty Duration Laborinfo@bender-uk.com
Warranty Duration Partsinfo@bender-uk.com
Warranty Duration UnitMonths
Warranty Guarantor Labor12
Warranty Guarantor Parts12
Width1912 mm
Wire Cross Section0.08 mm²…2.5mm²/AWG 28…14
Wire Stripping Length8…9 mm
WiringTwisted Pair S-UTP 100Ω Cat 5
