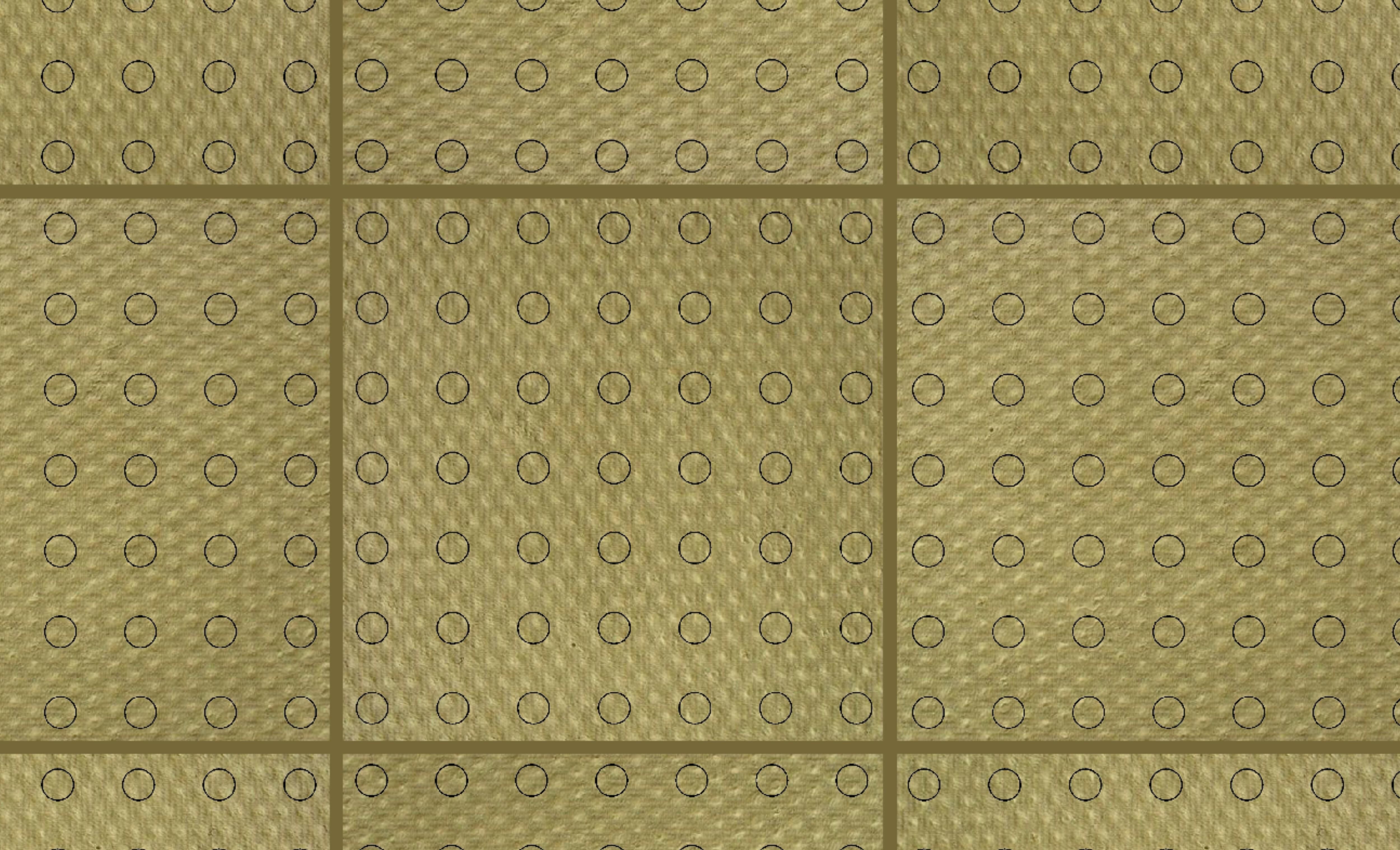

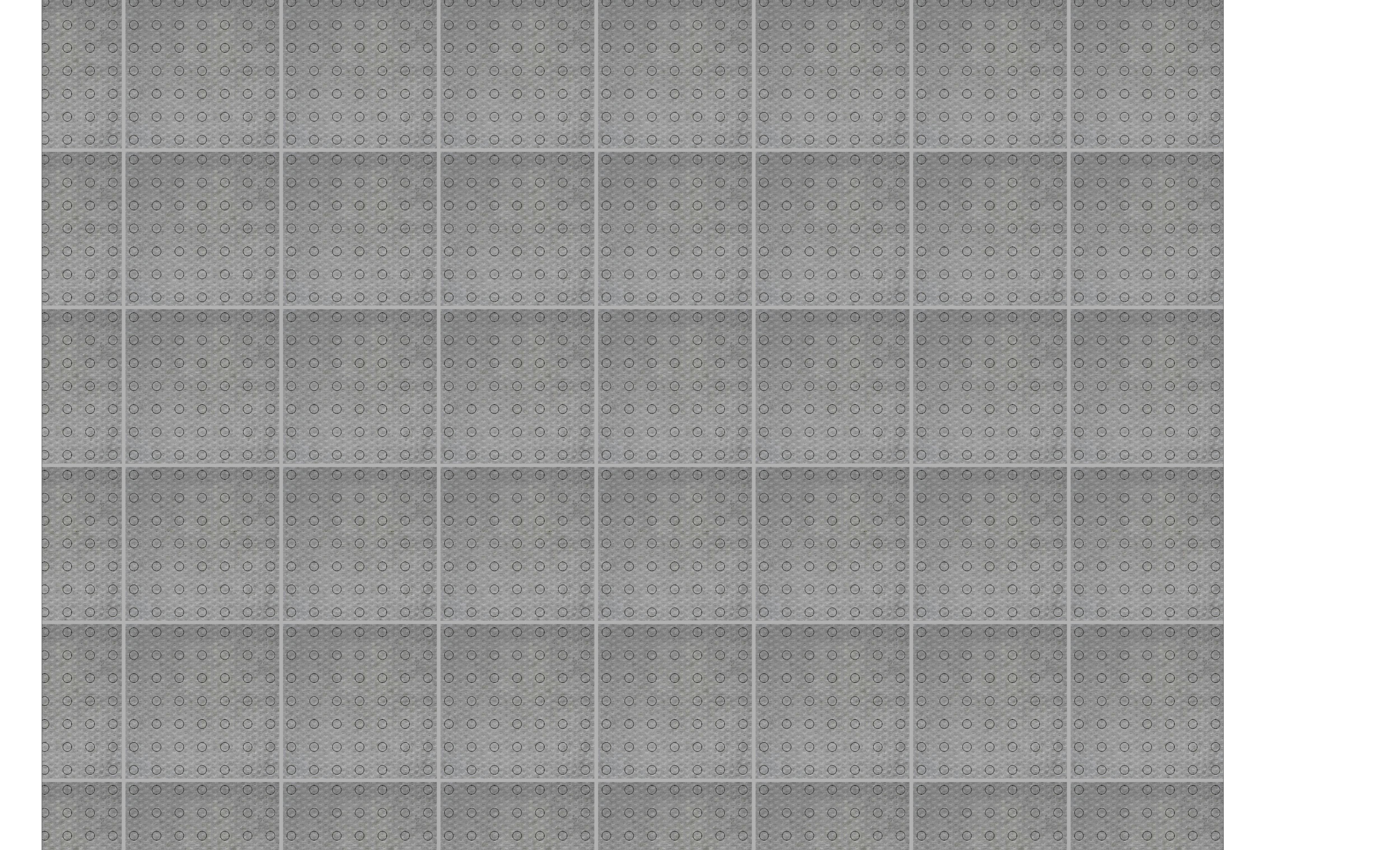

bimstore - Brett Landscaping - Tactile Blister Precast Concrete Paving Blocks

1.1k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

18/05/2022

Download BIM

Add to collection

Available for:

Designed specifically to meet the requirements of The Department for Transport publication ‘Guidance on the use of Tactile Paving Surfaces’ to help guide users with visual impairments around the urban environment.

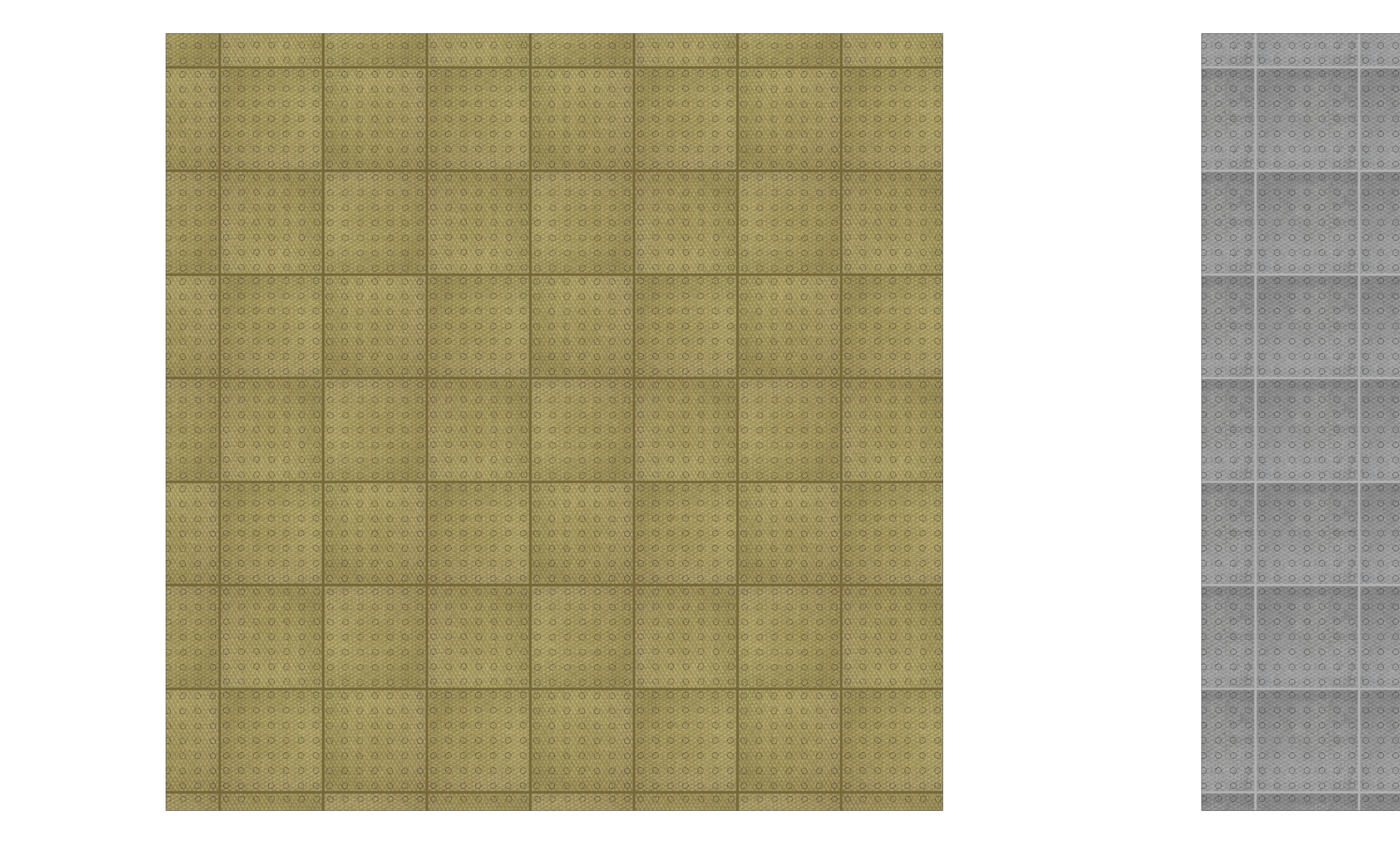

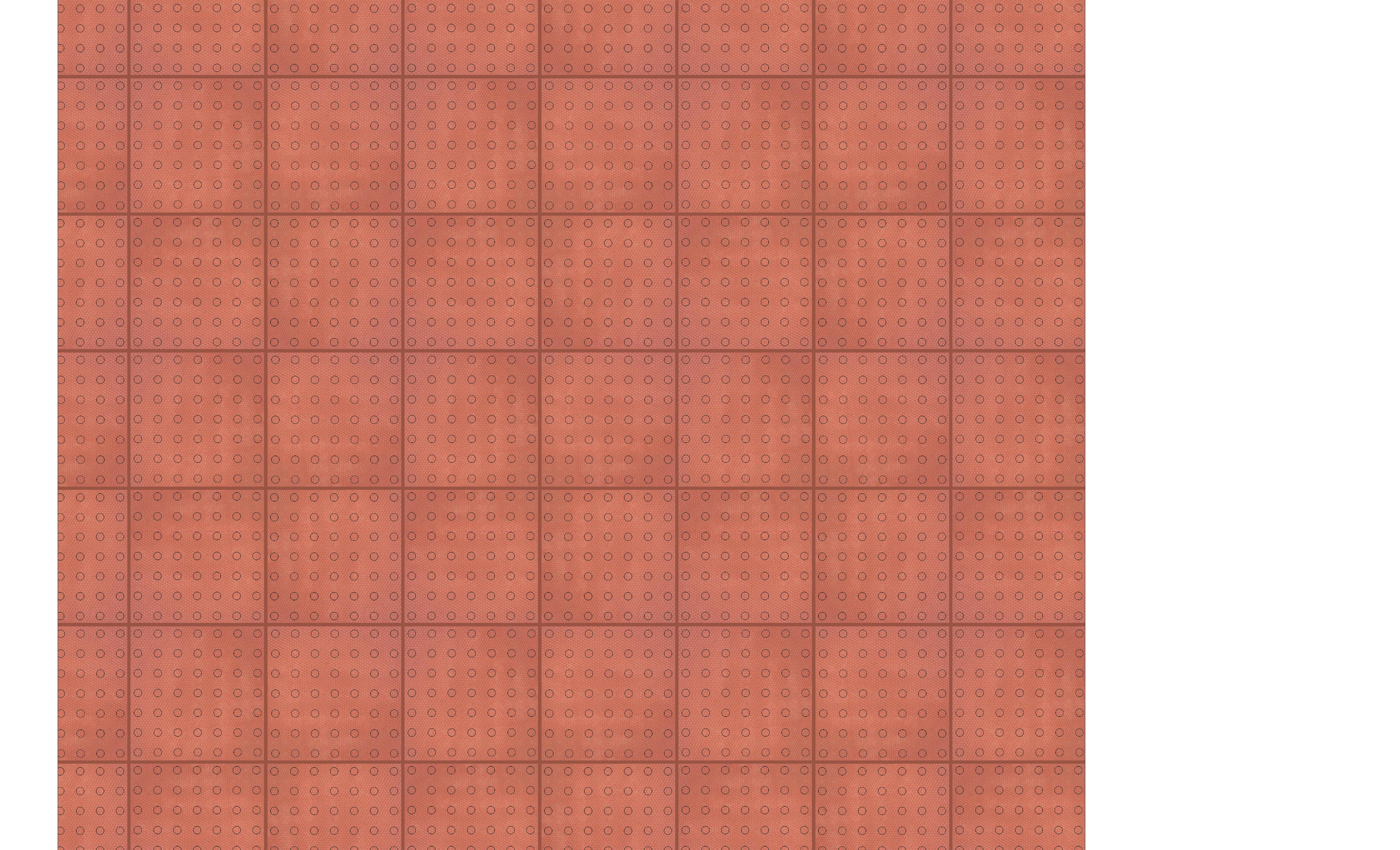

Our Tactile Flag Paving range can be combined with our specialist kerb systems to offer integrated roadside approach and safety solutions, such as road crossings and passenger vehicle boarding points. Available in red and buff colours, designed for different purposes. Red Tactile paving is used at controlled crossings such as Pelican and Zebra crossings, whilst the Buff is used at uncontrolled crossings such as drop crossings to guide the user safely across the road.

Manufacturing StandardBS EN 1339: 2003
Product TypePrecast Concrete Paving Flags Incorporates 50 - 70mm Blister Tactile Paving Slabs
ApplicationCommercial use; in accordance with Department of the Environment, Transport & the Regions 'Guidance on the use of Tactile Paving Surfaces' April 2000. For use at controlled and uncontrolled pedestrian crossing points.
StrengthCharacteristic bending strength ≥ 5.0 Mpa / Characteristic breaking load > 4.5 KN
Abrasion Resistance≤ 23mm - Determined by Wide Wheel Abrasion Test
DurabilityClass 3 ≤ 1,0kg/m² with no individual result ≤ 1,5kg/m²
Slip / Skid ResistanceDeemed to satisfy - (Products are of a tactile finish)
Reaction to fireClass A1 when used for internal flooring
External Fire PerformanceDeemed to satisfy
Emission of asbestosNo content
Thermal Conductivity1.2 W/(mK)
