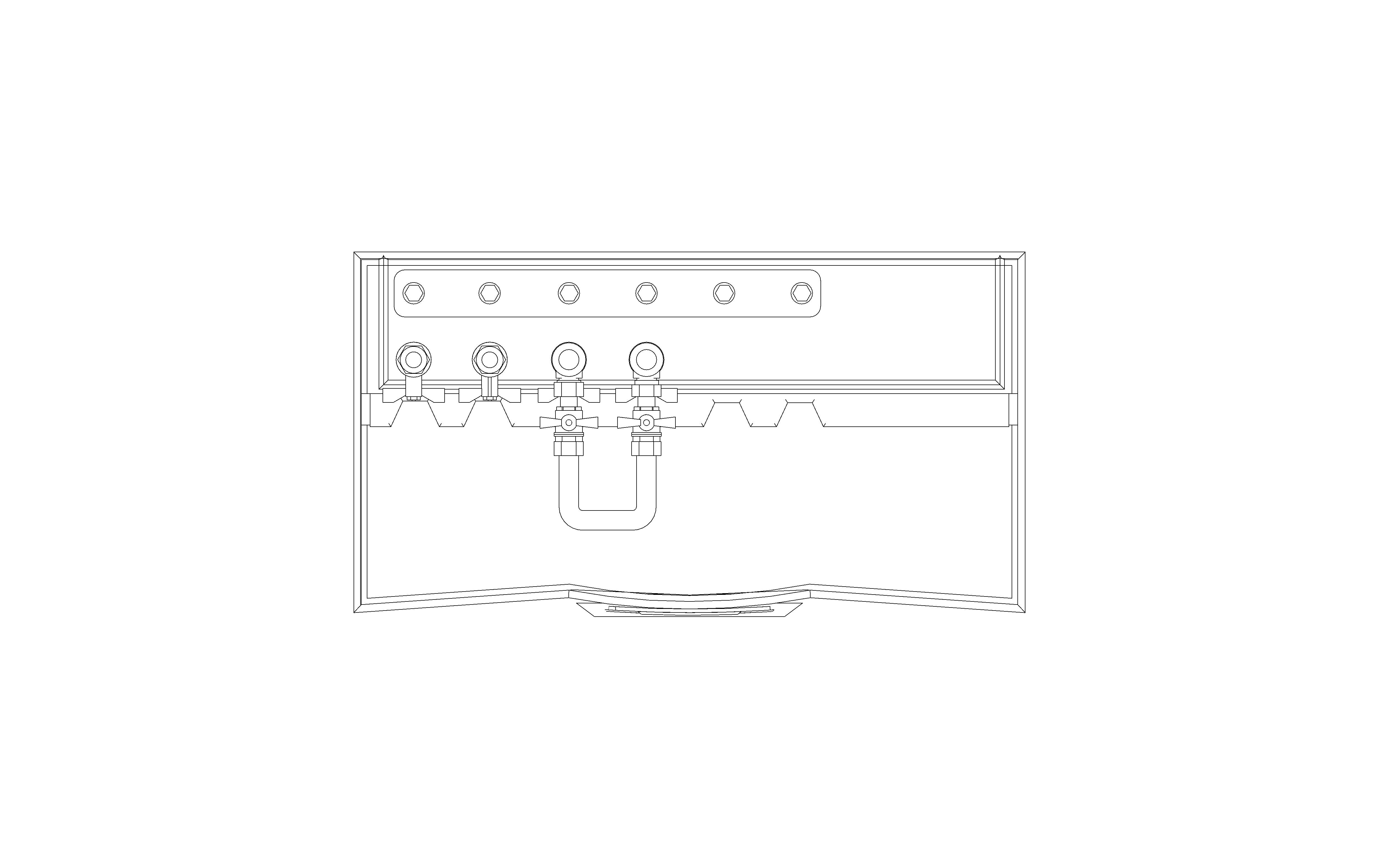

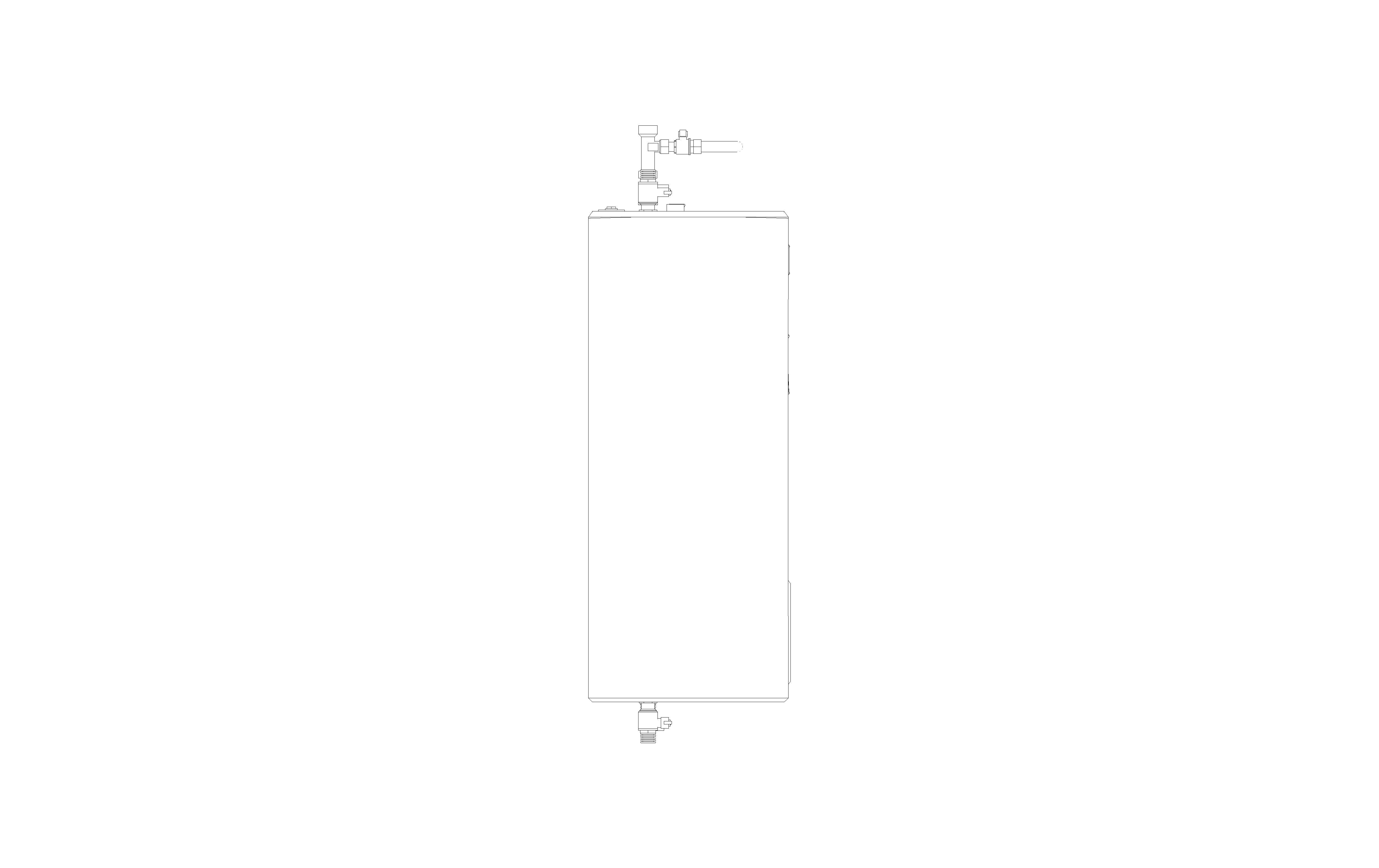

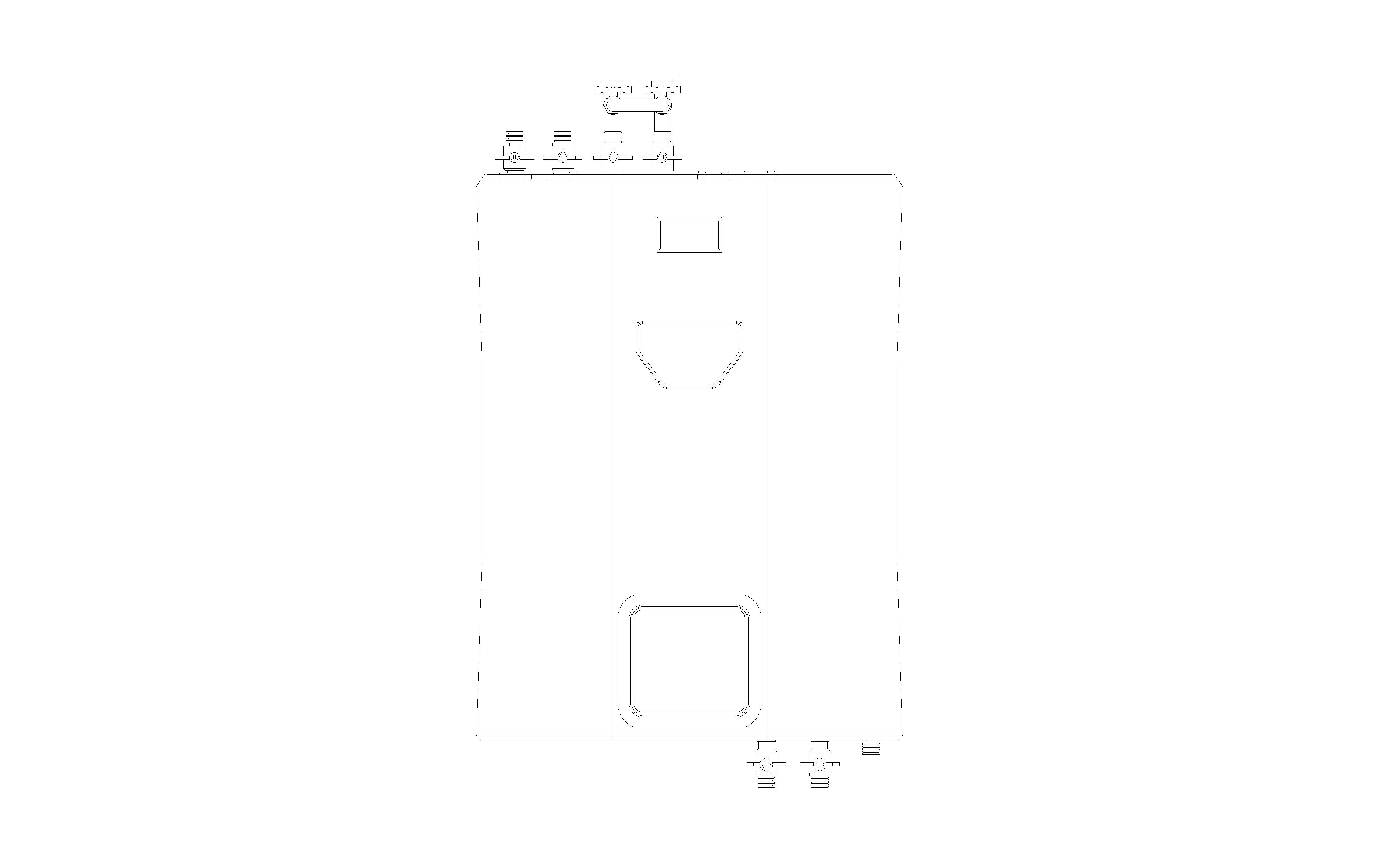

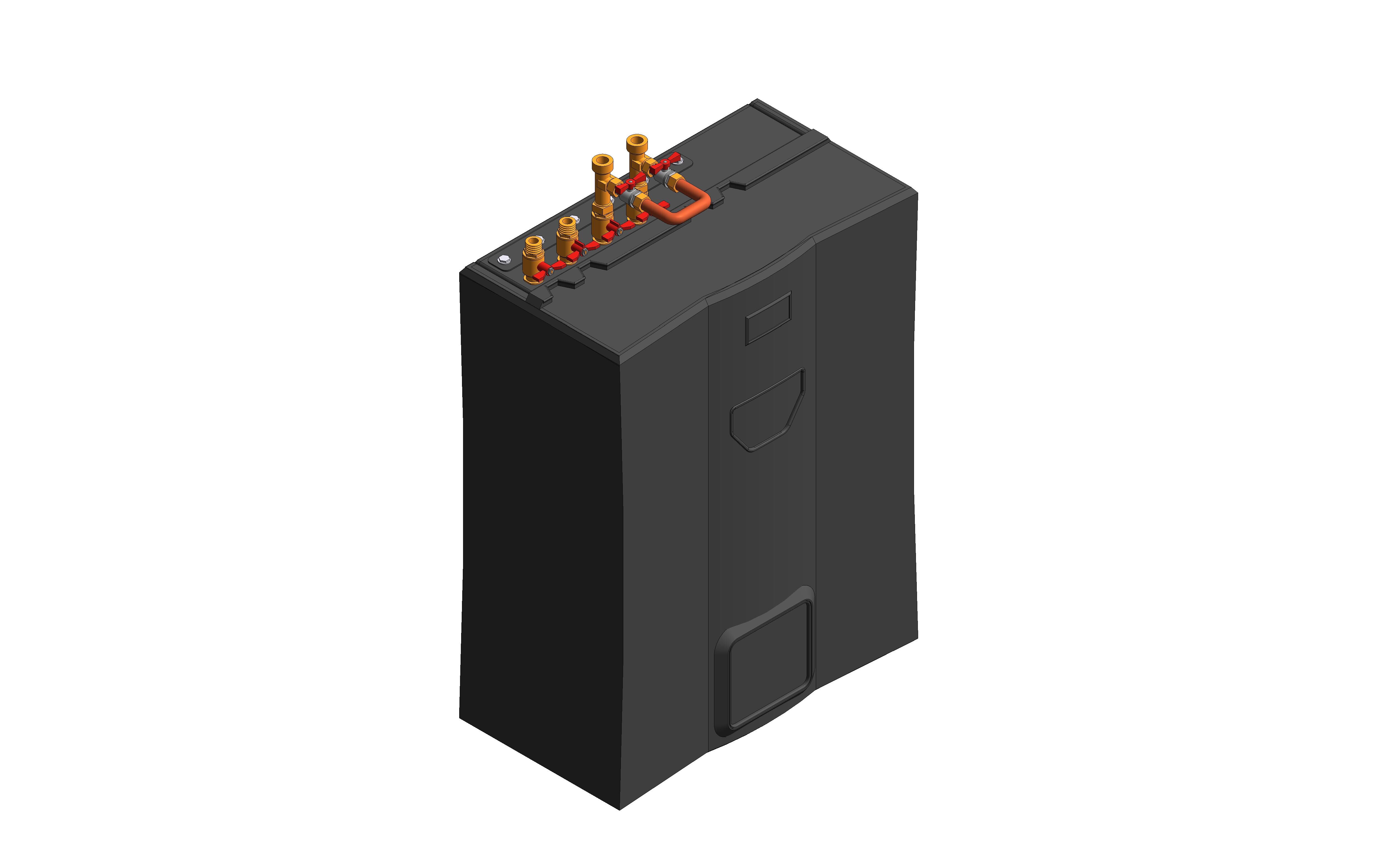

T3 Eco Heat Interface Unit (HIU) - Standard Unit

by Switch2 Energy

Download Add to collection

Description

Designed to the CIBSE/ADE Code of Practice guidelines, and with full WRAS approval, the T3 ECO HIU provides full connectivity for landlords and uninterrupted service for residents. The T3 ECO is designed for modern community and district heating schemes and includes a first fix jig, flushing bypass, integral pressure control and is PAYG enabled.

Object Data

1 Revision

Last Updated

28/08/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guiden/a
2nd Height Of Valve24 mm
3rd Height Of Valve61 mm
4th Height Of Valve17 mm
Accessibility Performancen/a
Assembly CodeD3020
Asset TypeFixed
BIM Object NameSwitch2_MechanicalEquipment_T3EcoHIU
Bottom Of Top Surface650 mm
ButterflyAluminum Red
Butterfly Height Offset15 mm
Butterfly Offset11 mm
Butterfly Plate Offset2 mm
Butterfly Thickness4 mm
Check ValvesAluminum
Classification NameUniclass2015
Classification ValuePr_80_51_51_37
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bymarketing@switch2.co.uk
Created On2019-05-29T09:00:00
DescriptionDesigned to the CIBSE/ ADE Code of Practice guidelines, and with full WRAS approval, the T3 ECO HIU provides full connectivity for landlords and uninterrupted service for residents. The T3 ECO is designed for modern community and district heating schemes and includes a first fix jig, flushing bypass, integral pressure control and is PAYG enabled.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesDesigned to the CIBSE/ ADE Code of Practice guidelines, and with full WRAS approval, the T3 ECO HIU provides full connectivity for landlords and uninterrupted service for residents. The T3 ECO is designed for modern community and district heating schemes and includes a first fix jig, flushing bypass, integral pressure control and is PAYG enabled.
Finishn/a
Front ScrewsAluminum 3003-H12
Graden/a
Height658 mm
Ifc Export AsIfcUnitaryControlElement
Ifc Export TypeIfcUnitaryControlElementTypeEnum.CONTROLPANEL
KeynoteT10
Length499 mm
ManufacturerSwitch2
Manufacturer NameSwitch2
Materialn/a
ModelHeat Interface Unit
Model NumberT3 ECO HIU
Model ReferenceHeat Interface Unit
NBS DescriptionHeat meters
NBS Object NameSwitch2 - Heat meters
NBS Office Master Tagn/a
NBS Reference90-65-55/430
Nominal Depth265 mm
Nominal Height646 mm
Nominal Length500 mm
Offset From Butterfly64 mm
PipeCopper
Pipe Height44 mm
Plate25 mm
Plate 1 Thickness2 mm
Plate 2 Thickness7 mm
Plate 3 Thickness4 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
ScrewsAluminum 1100-H14
Shapen/a
SizeW500mm x D265mm x H646mm
Spare Partsn/a
Top Pipe15 mm
Top Thickness8 mm
Type CommentsT3 ECO HIU
Type NameHeat Interface Unit
Upper Plate Offset25 mm
Upper Plates10 mm
Upper Screw Offset7 mm
Upper ScrewsAluminum 1100-H18
URLwww.switch2.co.uk/
Valve Offset25 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@switch2.co.uk
Warranty Guarantor Partsmarketing@switch2.co.uk
Width268 mm
