T230 Heat Meter

by Switch2 Energy

Download Add to collection

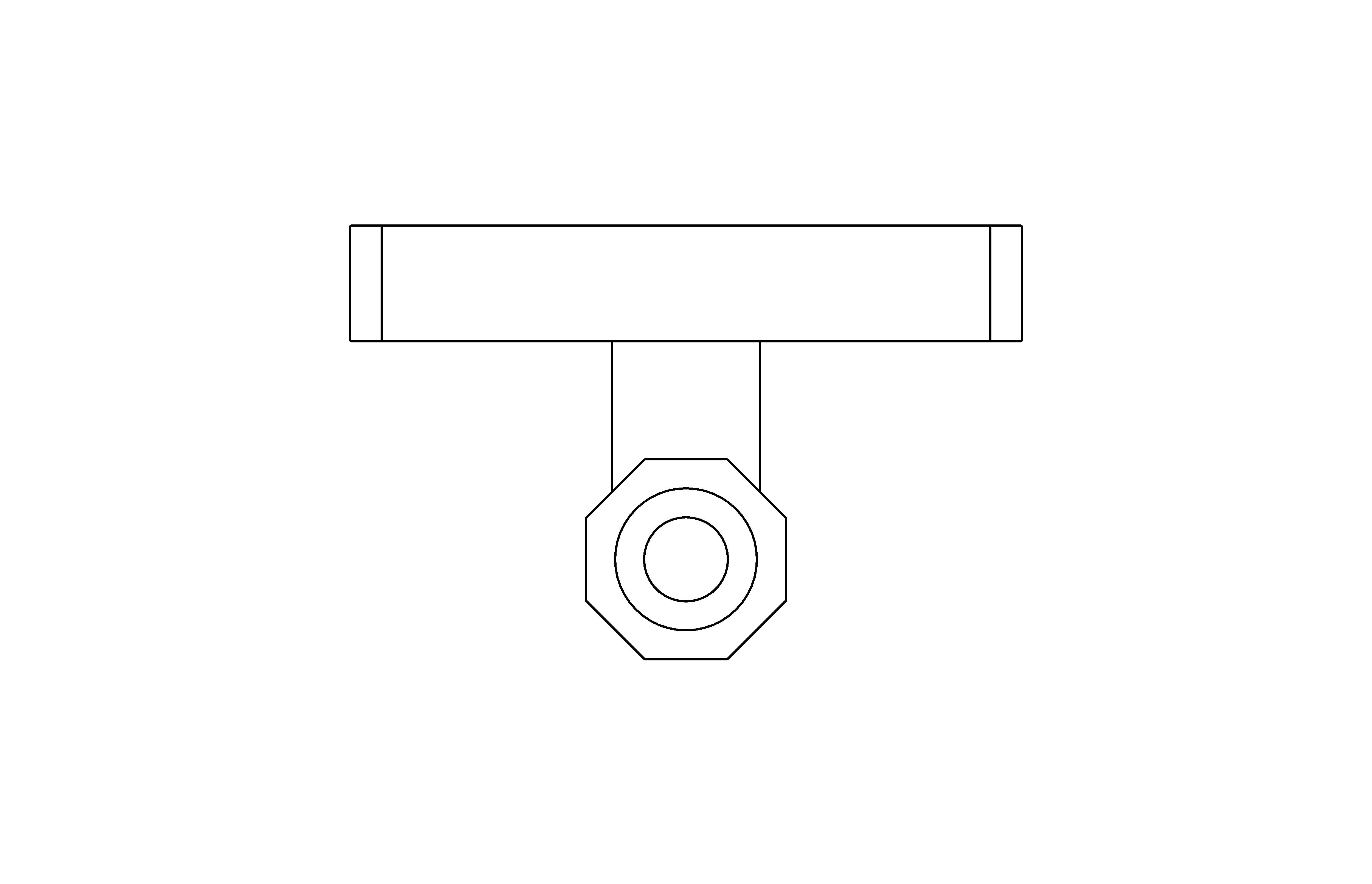

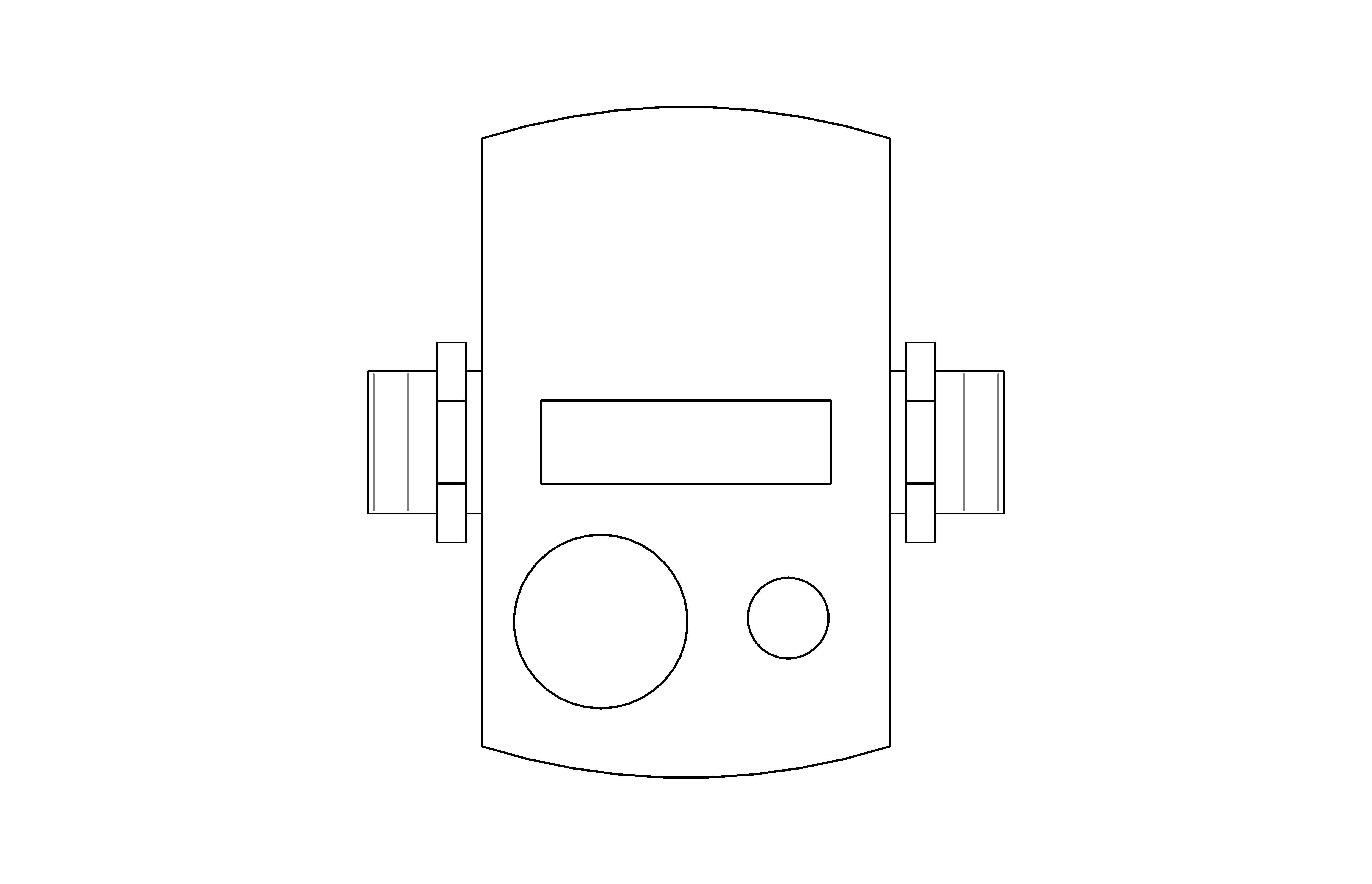

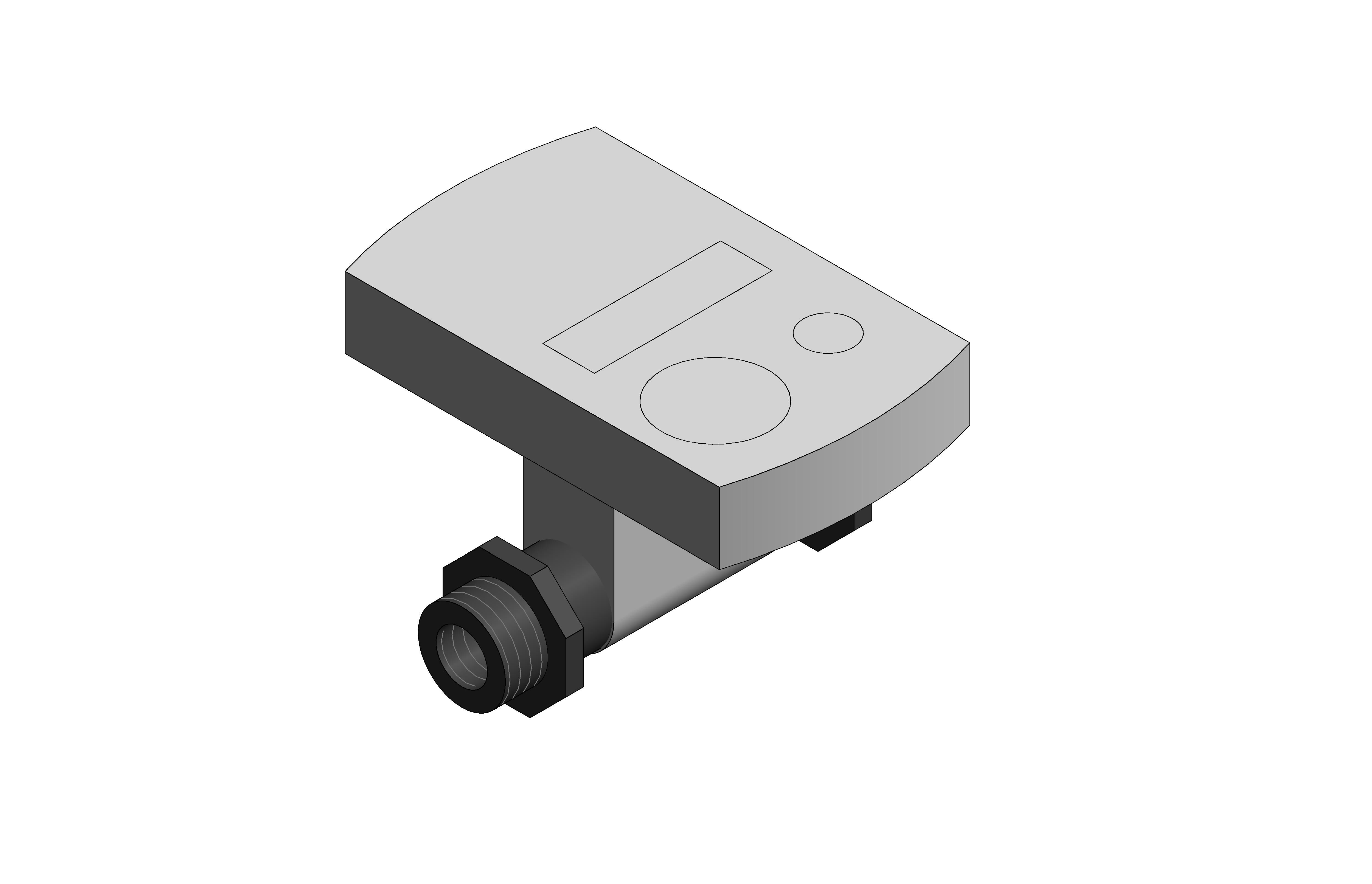

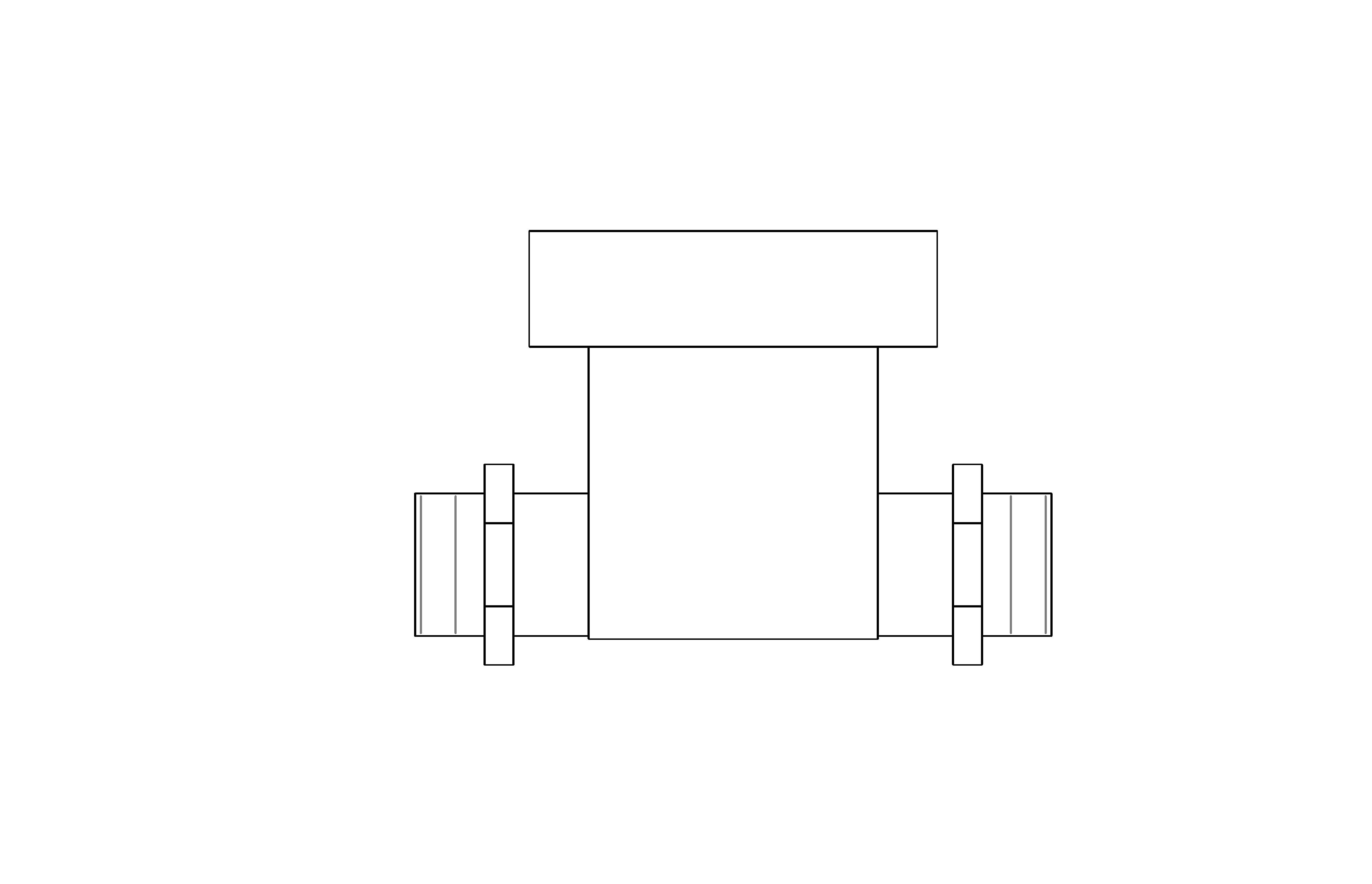

Description

The T230 is a static ultrasonic meter for heating or cooling applications. This advanced heat meter has a moulded composite body which reduces weight.

Object Data

1 Revision

Last Updated

05/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

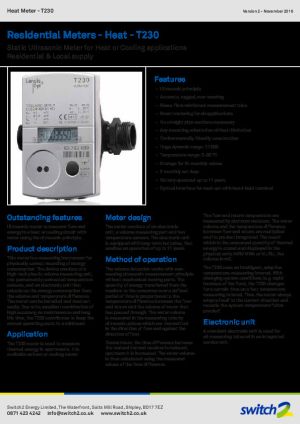

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
0.6Yes
1.5No
2.5No
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameSwitch2_PipeFitting_SmartMeter_T230
Classification NameUniclass2015
Classification ValuePr_80_51_51_37
Code Performancen/a
ColorBlack & Grey
Constituentsn/a
Created Bymarketing@switch2.co.uk
Created On2020-02-13T09:00:00
DescriptionStatic Ultrasonic Meter for Heat or Cooling applications Residential & Local supply
Dim 160 mm
Documentation Certificateswww.switch2.co.uk
Documentation Installation Guidewww.switch2.co.uk
Documentation Literaturewww.bimstore.co/products/t230-heat-meter/document/product-literature
Documentation Maintenancewww.switch2.co.uk
Documentation Technicalwww.switch2.co.uk
Duration UnitYears
Expected Life0
FeaturesStatic Ultrasonic Meter for Heat or Cooling applications Residential & Local supply
FinishPlastic
GG 3/4
Graden/a
Height58 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.STOPCOCK
Internal Diameter15 mm
KeynoteS
Length110 mm
ManufacturerSwitch2
Manufacturer NameSwitch2
MaterialPlastic
Max Flow Rate_qs1.2 m3/h
Maximum Depth70 mm
Min Flow Rate_qi6 l/h
ModelHeat Meter T230
Model NumberHeat Meter T230
Model Reference0.6
NBS DescriptionHeat meters
NBS Object NameSwitch2 - Heat meters
NBS Office Master Tagn/a
NBS Reference90-65-55/430
Nominal Depth0 mm
Nominal Height75 mm
Nominal Length110 mm
Nominal PressurePN 16 bar
Nut Dia35 mm
Nut Length5 mm
Offset Rad13 mm
Pipe Connection25 mm
Pipe MaterialSwitch2_Plastic_Black
Plastic Housing MaterialSwitch2_Plastic_Grey
Pressure Loss At_qp75 mbar
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Socket Length12 mm
Spare Partsn/a
Thread MaterialSwitch2_Plastic_Black_Threaded
Top Plate Thickness10 mm
Type Comments0.6
Type Name0.6
URLwww.switch2.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labormarketing@switch2.co.uk
Warranty Guarantor Partsmarketing@switch2.co.uk
