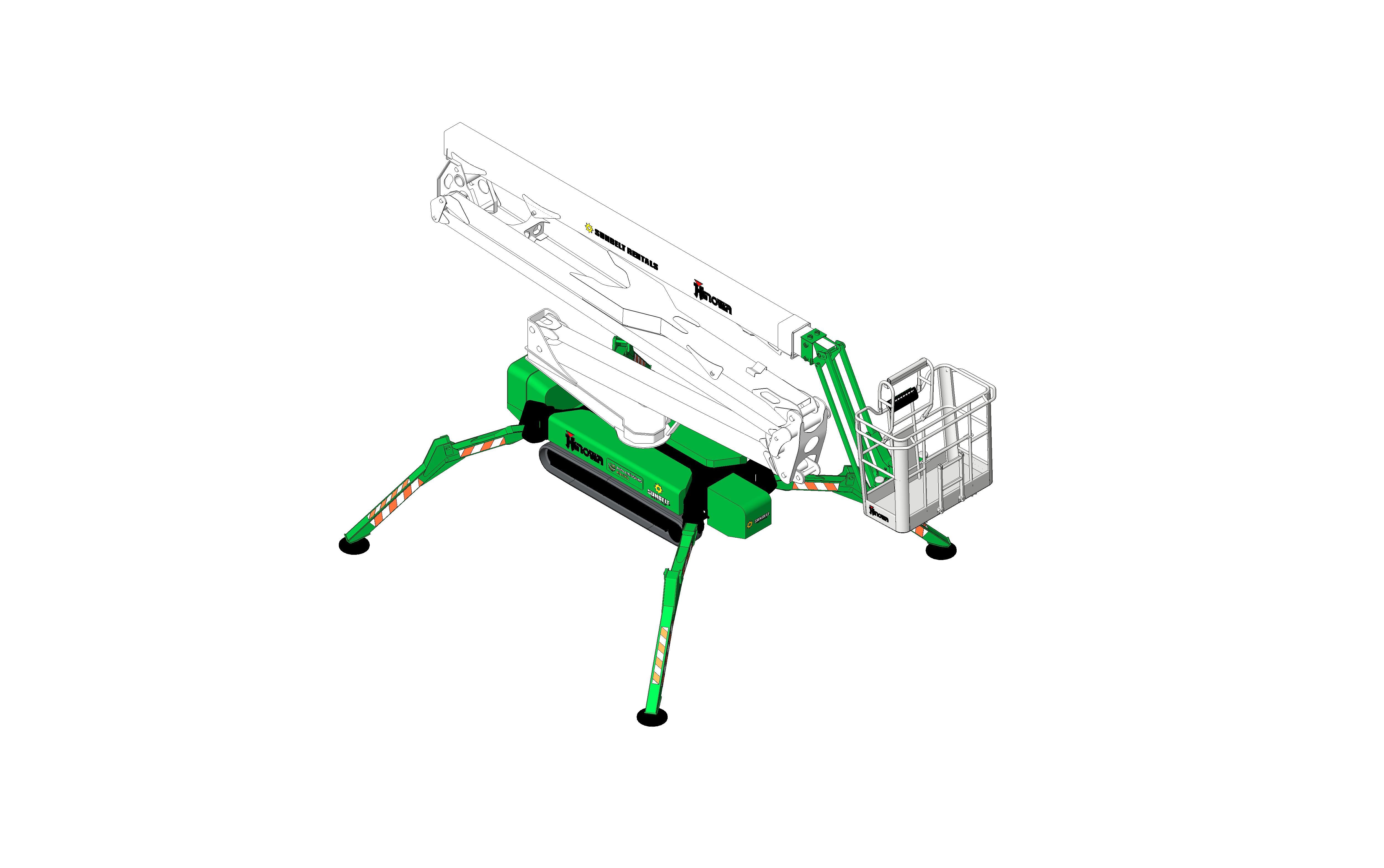

Sunbelt Rentals - Compact Crawler Boom - Hinowa Lightlift 26-14 (Electric)

Object metadata

• _AuthorHinowa
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-electric/document/object-user-guide
• A1a12.69 °
• A1a 1192.69 °
• A2a12.69 °
• A2a 1192.69 °
• Accessibility Performancen/a
• AE10 mm
• A Ea58.35 °
• A Ea 1238.35 °
• AE Ha12.69 °
• AE Ha 1192.69 °
• Articulating Jib1.68 m (5 ft 6 in) Articulating Jib
• Assembly CodeE1030100
• Asset TypeMoveable
• Base Height670 mm
• BeigeSunbeltRentals_Primary_White
• BIM Object NameSunbeltRentals_CompactCrawlerBoom_Hinowa_Lightlift26-14_Electric
• BlackSunbeltRentals_Primary_Black
• Blue ClearanceSunbeltRentals_ClearanceBlue
• Classification NameUniclass2015
• Classification ValueTE_30_30_10_60
• ClearanceSunbeltRentals_Clearance
• CO2 Per Litre Of Diesel Consumedkg N/A
• CO2 Per Litre Of HVO Consumedkg N/A
• CO2 Per Litre Of Petrol Consumedkg N/A
• Code Performancen/a
• ColorGreen
• Constituentsn/a
• Created Bybim@sunbeltrentals.co.uk
• Created On2024-01-01T09:00:00
• DescriptionThe Hinowa LL 26.14 is part of the Lightlift range, providing a working height of up to 25.7m and maximum outreach of 13.6m. It can lift 230kg – enough for two people with tools – without restriction throughout its entire working envelope. The drive train has a three-speed system which ensures it reaches the work area quickly. Mounted on a crawler chassis, the LightLift 26.14 has very low ground pressure, making it ideal for working on soft ground, slopes or uneven terrain. The machine retracts to just 990mm wide for passing through doorways or in between buildings. It has a transport length of less than 6m thanks to the easily detachable basket.
• Documentation Certificateswww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-electric/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-electric/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-electric/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-electric/document/maintenance-information

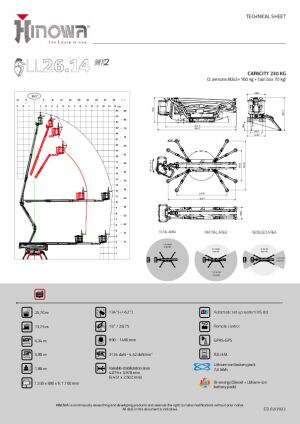

• Documentation Technicalwww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-26-14-electric/document/technical-data-sheet
• Drive MotorsKubota D902 16.1kW (21.6 bhp) Diesel)
• Drive Speed1.10 - 2.00 kph (0.68 - 1.24 mph)
• Duration UnitYears
• Electrical System12v
• Embodied Carbonkg N/A
• Expected Life0
• Featuresn/a
• Finishn/a
• Fuel Consumption Per Hour At Average Use 75 Percent Loadl/h N/A
• Fuel Consumption Per Hour At Heavy Use 100 Percent Loadl/h N/A
• Fuel Consumption Per Hour At Light Use 50 Percent Loadl/h N/A
• Fuel Tank Capacity25 L (6.60 gal)
• Graden/a
• GreySunbeltRentals_Secondary_LightGrey
• Ground Clearance0.69m (2 ft 3 in )
• H1a12.69 °
• H1a 1192.69 °
• Horizontal Outreach13.10m (43 ft 0 in)
• Hydraulic Platform Rotator124 Degrees +/- 62 Degrees
• Hydraulic Reservoir60L (15.9 gal)
• Ifc Export AsIfcTransportElement
• Ifc Export TypeIfcTransportElementType
• Ja0.00 °
• Ja 1180.00 °
• J Ha0.00 °
• J Ha 1180.00 °
• Jib Overall Length1.68 m ( 5 ft 6 in)
• Jib Range Of Articulation89° (+0/- 89 Degrees)
• KeynoteX
• Leg Angle0.00 °
• Leg Rotation0.00 °
• Machine Weight ANSI9625 lbs
• Machine Weight CE4365 kg
• ManufacturerSunbelt Rentals (Hinowa)
• Manufacturer NameSunbelt Rentals (Hinowa)
• Materialn/a
• Max Ground Pressure Of Tracks0.54 kg/cm²
• Max Ground Pressure Per Stabiliser Leg4.51 kg/cm²
• Max Working Gradient1 Degree
• ModelCompact Crawler Boom - Lightlift 26-14 (Electric)
• Model NumberLightlift 26-14 (Electric)
• Model ReferenceCompact Crawler Boom
• NBS DescriptionLift platforms
• NBS Noten/a
• NBS Object NameSunbelt Rentals - Lift platforms
• NBS Office Master Tagn/a
• NBS Referencen/a
• Noise At 15mdB N/A
• Noise At 1mdB N/A
• Noise At 7mdB N/A
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• OrangeSunbeltRentals_Primary_Green
• P Ha58.35 °
• P Ha 1121.65 °
• Platform Capacity Unrestricted ANSI507 lbs
• Platform Capacity Unrestricted CE230 kg
• Platform Height23.6m (77 ft 5 in)
• Platform Rotator124 Degrees (+/-62 Degrees)
• Platform Size0.69m x 1.34m (2 ft 3 in x 4 ft 5 in)
• Production Year2023
• Product Page LinkTBC
• Reach46
• RedSunbeltRentals_Tertiary_Red
• Referenced Standardn/a
• Replacement Costn/a
• RubberSunbeltRentals_Tire
• Shapen/a
• Sizen/a
• SKU008/024
• Spare Partsbim@sunbeltrentals.co.uk
• Tracks1.76m x 0.23m x 0.38m High profile non-marking tracks
• Transportation ConditionNo
• Turning Radius0m
• Type CommentsCompact Crawler Boom - Lightlift 26-14 (Electric)
• Type NameCompact Crawler Boom - Lightlift 26-14 (Electric)
• Unique Model Reference FAPL1001230453
• Up And Over Height10.10m (33 ft 2 in)
• URLwww.sunbeltrentals.co.uk/
• U Value Of External Wallsw/m°c N/A
• U Value Of Roofw/m°c N/A
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborbim@sunbeltrentals.co.uk
• Warranty Guarantor Partsbim@sunbeltrentals.co.uk
• Watt Hours Per Day0 W
• WhiteSunbeltRentals_Primary_White
• Yellow ClearanceSunbeltRentals_ClearanceYellow
