The Lightlift 20.10 tracked boom features Hinowa’s Performance IIIS system, which is designed to make travel and set-up faster and more efficient than ever. Features include outrigger deployment, levelling and retraction with one touch of a button; auto-speed control that takes ground conditions into account; and wireless remote control. With a minimum travel width of less than 0.8m and stowed height of under 2m, this compact lift can pass through narrow doorways and gateways. The Hinowa Lightlift 20.10 spider boom provides a working height of up to 20.1m and a maximum horizontal outreach of 9.7m. Its exceptional lift capacity of up to 230kg can accommodate two people with tools, further increasing productivity. Available with a diesel engine combined with a mains electric power of 110 or 220V, or with a lithium battery for pollution-free operation.

Visit Sunbelt Rentals for more info!

This machine may also be known as: Aerial platform, Spider lift, Spider boom

_AuthorHinowa
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-20-10-electric/document/object-user-guide
A1a17.33 °
A1a 1197.33 °
A2a17.33 °
A2a 1197.33 °
Accessibility Performancen/a
AE500 mm
A Ea61.50 °
A Ea 1241.50 °
AE Ha17.33 °
AE Ha 1197.33 °
Articulating Jib1.68 m (5 ft 6 in) Articulating Jib
Assembly CodeE1030100
Asset TypeMoveable
Base Height410 mm
BeigeSunbeltRentals_Primary_White
BIM Object NameSunbeltRentals_CompactCrawlerBoom_Hinowa_Lightlift20-10_Electric
BlackSunbeltRentals_Primary_Black
Blue ClearanceSunbeltRentals_ClearanceBlue
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
ClearanceSunbeltRentals_Clearance
CO2 Per Litre Of Diesel Consumedkg N/A
CO2 Per Litre Of HVO Consumedkg N/A
CO2 Per Litre Of Petrol Consumedkg N/A
Code Performancen/a
ColorGreen
Constituentsn/a
Created Bybim@sunbeltrentals.co.uk
Created On2024-01-01T09:00:00
Descriptionhe Lightlift 20.10 tracked boom features Hinowa’s Performance IIIS system, which is designed to make travel and set-up faster and more efficient than ever. Features include outrigger deployment, levelling and retraction with one touch of a button; auto-speed control that takes ground conditions into account; and wireless remote control. With a minimum travel width of less than 0.8m and stowed height of under 2m, this compact lift can pass through narrow doorways and gateways. The Hinowa Lightlift 20.10 spider boom provides a working height of up to 20.1m and a maximum horizontal outreach of 9.7m. Its exceptional lift capacity of up to 230kg can accommodate two people with tools, further increasing productivity. Available with a diesel engine combined with a mains electric power of 110 or 220V, or with a lithium battery for pollution-free operation.
Documentation Certificateswww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-20-10-electric/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-20-10-electric/document/installation-guide
Documentation Literaturewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-20-10-electric/document/product-literature
Documentation Maintenancewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-20-10-electric/document/maintenance-information

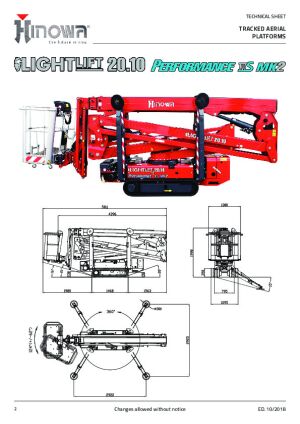

Documentation Technicalwww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-20-10-electric/document/technical-data-sheet
Drive MotorsPerkins 402.05 Diesel 10.20 kW (13.69 bhp)
Drive Speed0.50-2.50 kph (0.31-1.55 mph)
Duration UnitYears
Electrical System12v
Embodied Carbonkg N/A
Expected Life0
Featuresn/a
Finishn/a
Fuel Consumption Per Hour At Average Use 75 Percent Loadl/h N/A
Fuel Consumption Per Hour At Heavy Use 100 Percent Loadl/h N/A
Fuel Consumption Per Hour At Light Use 50 Percent Loadl/h N/A
Fuel Tank Capacity11 Litres (2.91 gal)
Graden/a
Gradeability28.7%
GreySunbeltRentals_Secondary_LightGrey
Ground Clearance0.50 m (1 ft 8 in)
H1a17.33 °
H1a 1197.33 °
Horizontal Outreach9.20 m (30 ft 2 in)
Hydraulic Platform Rotator124 Degrees +/- 62 Degrees
Hydraulic Reservoir40 Litres (10.57 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Ja0.00 °
Ja 1180.00 °
J Ha0.00 °
J Ha 1180.00 °
Jib Overall Length1.68 m ( 5 ft 6 in)
Jib Range Of Articulation89° (+0/- 89 Degrees)
KeynoteX
Leg Angle26.25 °
Machine Weight ANSI6571 lbs
Machine Weight CE2940 kg
ManufacturerSunbelt Rentals (Hinowa)
Manufacturer NameSunbelt Rentals (Hinowa)
Materialn/a
Max Ground Pressure Of Tracks0.65 kg/cm2 (9.25 psi)
Max Ground Pressure Per Stabiliser Leg3.10 kg/cm²
Max Stabilisation Slope15°
Max Working Gradient1 Degree
ModelCompact Crawler Boom - Lightlift 20-10 (Electric)
Model NumberLightlift 20-10 (Electric)
Model ReferenceCompact Crawler Boom
NBS DescriptionLift platforms
NBS Noten/a
NBS Object NameSunbelt Rentals - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Noise At 15mdB N/A
Noise At 1mdB N/A
Noise At 7mdB N/A
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
OrangeSunbeltRentals_Primary_Green
P Ha61.50 °
P Ha 1118.50 °
Platform Capacity Unrestricted ANSI230 kg
Platform Capacity Unrestricted CE500 lbs
Platform Height18.05 m (59 ft 3 in)
Platform Size1.34 m x 0.69 m (4 ft 4 in x 2 ft 3 in)
Production Year2023
Product Page LinkTBC
Reach23
RedSunbeltRentals_Tertiary_Red
Referenced Standardn/a
Replacement Costn/a
RubberSunbeltRentals_Tire
Shapen/a
Sizen/a
SKU080/022
Spare Partsbim@sunbeltrentals.co.uk
Tracks1.46 x 0.20 x 0.35m Low Profile Non Marking Rubber
Transportation ConditionNo
Turning Radius0m
Type CommentsCompact Crawler Boom - Lightlift 20-10 (Electric)
Type NameCompact Crawler Boom - Lightlift 20-10 (Electric)
Unique Model Reference FAPL1001129431
Up And Over Height8.20 m (26 ft 11 in)
URLwww.sunbeltrentals.co.uk/
U Value Of External Wallsw/m°c N/A
U Value Of Roofw/m°c N/A
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbim@sunbeltrentals.co.uk
Warranty Guarantor Partsbim@sunbeltrentals.co.uk
Watt Hours Per Day0 W
WhiteSunbeltRentals_Primary_White
Yellow ClearanceSunbeltRentals_ClearanceYellow
