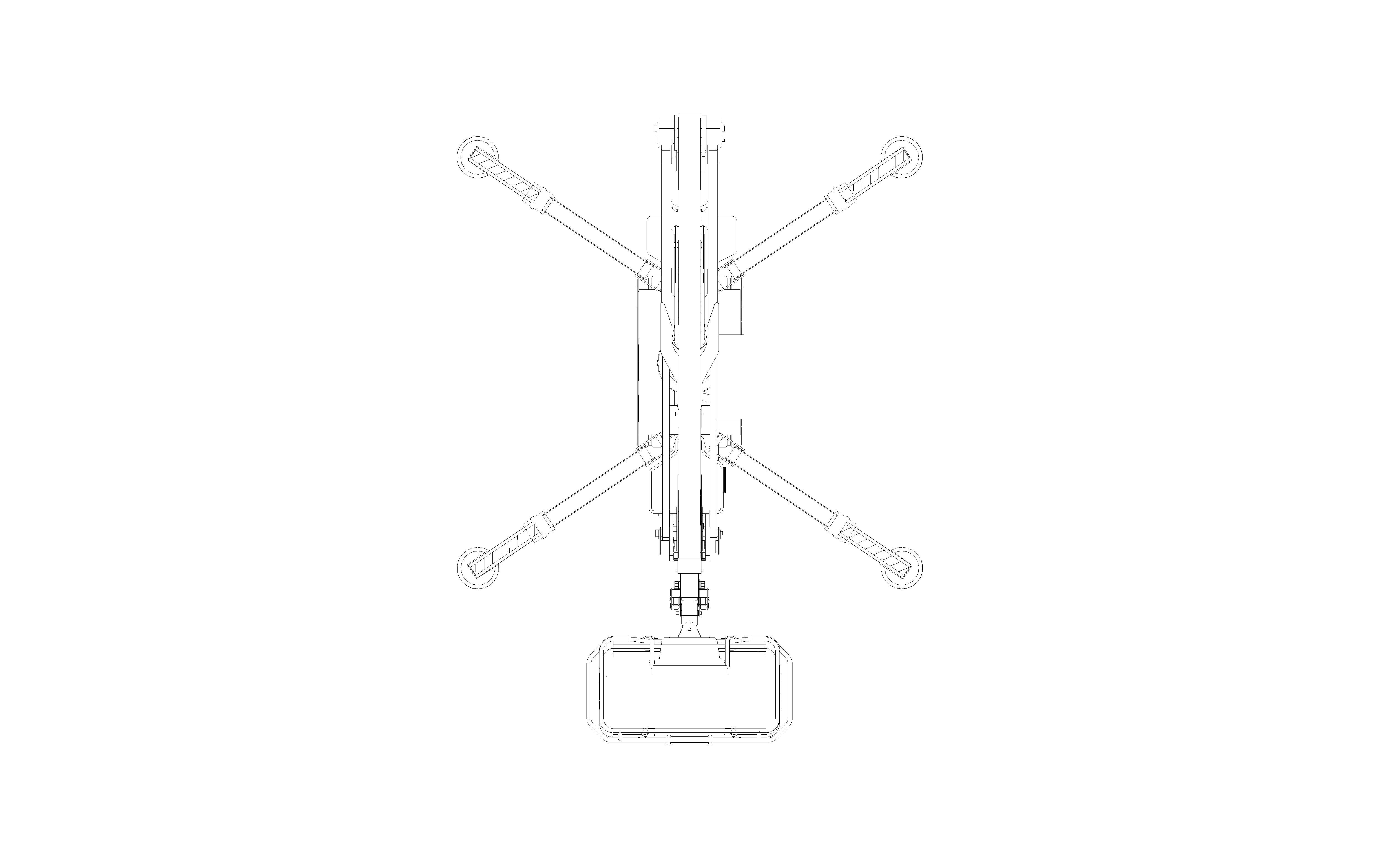

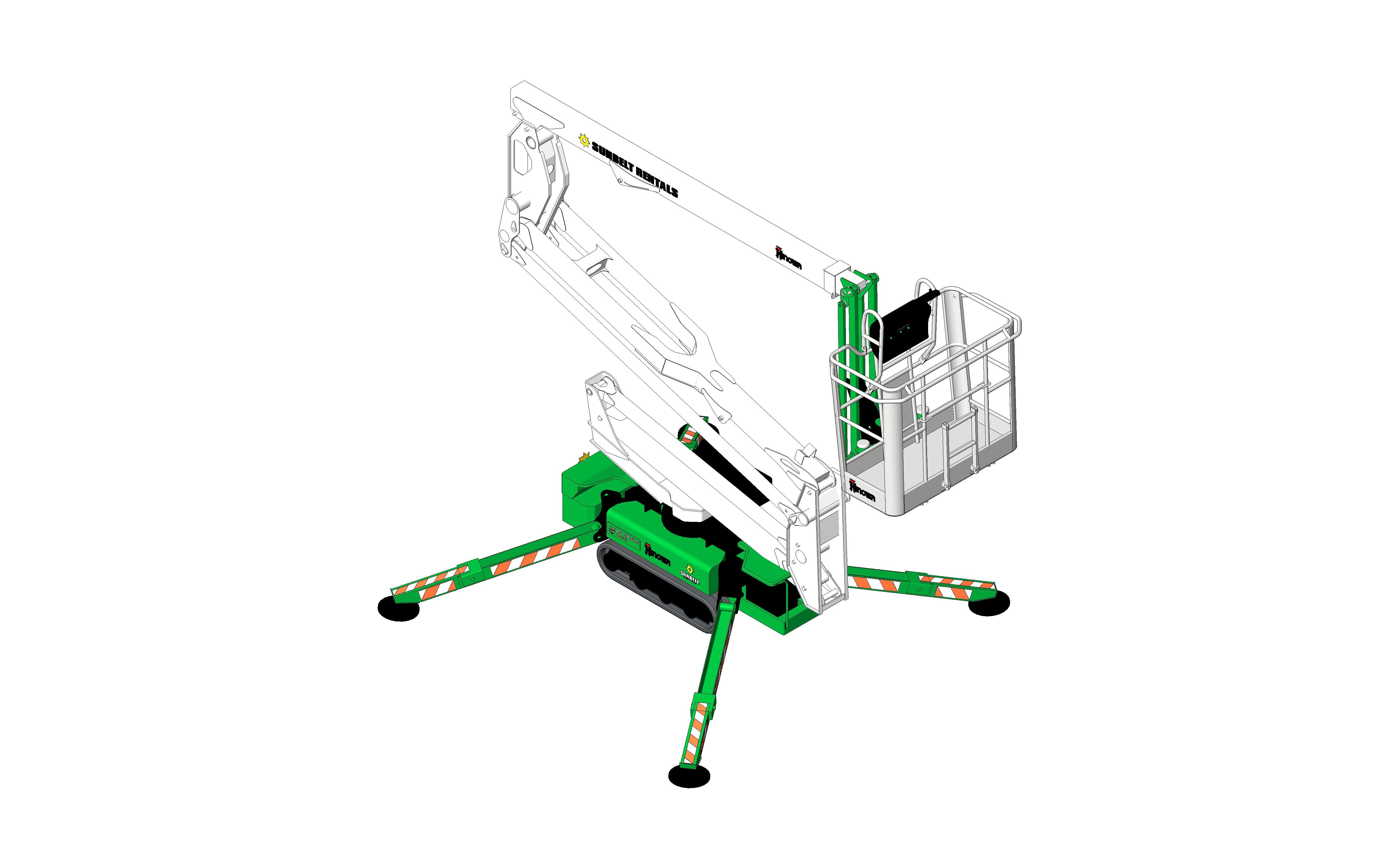

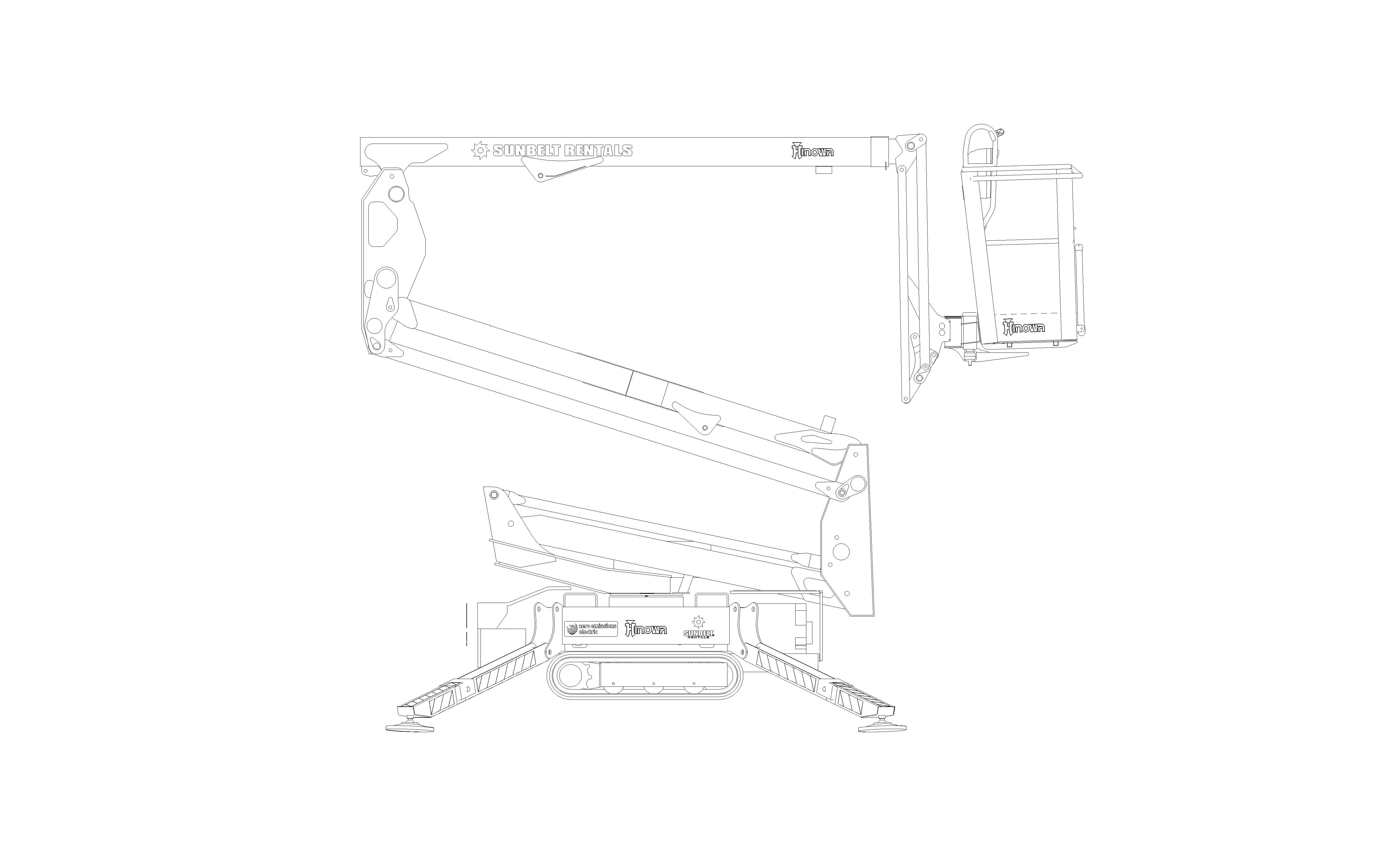

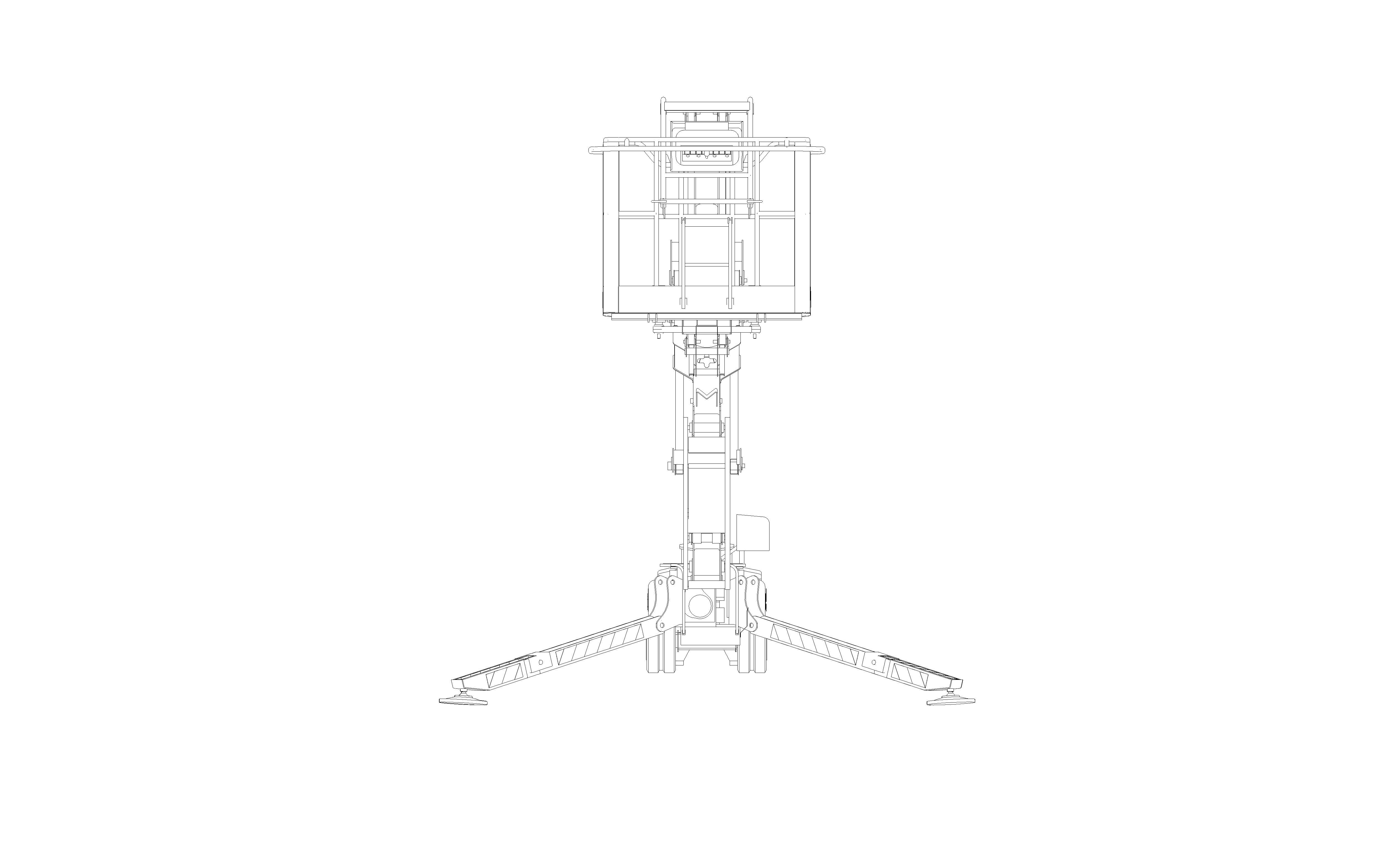

Sunbelt Rentals - Compact Crawler Boom - Hinowa Lightlift 17-75 (Electric)

Object metadata

• _AuthorHinowa
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-17-75-electric/document/object-user-guide
• A1a33.30 °
• A1a 1213.30 °
• A2a33.30 °
• A2a 1213.30 °
• Accessibility Performancen/a
• AE15 mm
• A Ea69.20 °
• A Ea 1249.20 °
• AE Ha33.30 °
• AE Ha 1213.30 °
• Articulating Jib1.68 m (5 ft 6 in)
• Assembly CodeE1030100
• Asset TypeMoveable
• BeigeSunbeltRentals_Primary_White
• BIM Object NameSunbeltRentals_CompactCrawlerBoom_Hinowa_Lightlift17-75_Electric
• BlackSunbeltRentals_Primary_Black
• Blue ClearanceSunbeltRentals_ClearanceBlue
• Classification NameUniclass2015
• Classification ValueTE_30_30_10_60
• ClearanceSunbeltRentals_Clearance
• CO2 Per Litre Of Diesel Consumedkg N/A
• CO2 Per Litre Of HVO Consumedkg N/A
• CO2 Per Litre Of Petrol Consumedkg N/A
• Code Performancen/a
• ColorGreen
• Constituentsn/a
• Created Bybim@sunbeltrentals.co.uk
• Created On2024-01-01T09:00:00
• DescriptionThe Hinowa Lightlift 17.75 is a high-performance tracked boom, providing a working height of up to 17m and maximum outreach of 7.5m. Its dual pantograph lifting mechanism enables the operator to use the lift when it is flush against a wall, and it has an impressive platform load capacity of 230kg without restriction throughout its entire working envelope. This Other features include fully automatic stabiliser deployment, for quick and safe set-up various ground conditions and rough terrain. Power options include a petrol or diesel engine combined with a mains electric, or 100% lithium battery-powered, for quiet, pollution-free operation.
• Documentation Certificateswww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-17-75-electric/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-17-75-electric/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-17-75-electric/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-17-75-electric/document/maintenance-information

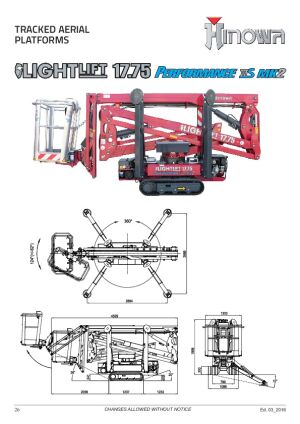

• Documentation Technicalwww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-17-75-electric/document/technical-data-sheet
• Drive MotorsHONDA iGX 390 Petrol 8.7kW (11.67 bhp)
• Drive Speed1.80 kph (1.12 mph)
• Duration UnitYears
• Electrical System12v
• Embodied Carbonkg N/A
• Expected Life0
• Featuresn/a
• Finishn/a
• Fuel Consumption Per Hour At Average Use 75 Percent Loadl/h N/A
• Fuel Consumption Per Hour At Heavy Use 100 Percent Loadl/h N/A
• Fuel Consumption Per Hour At Light Use 50 Percent Loadl/h N/A
• Fuel Tank Capacity5.30 Litres (1.40 gal)
• Graden/a
• Gradeability28.70%
• GreySunbeltRentals_Secondary_LightGrey
• Ground Clearance0.20 m (0 ft 8 in)
• H1a33.30 °
• H1a 1213.30 °
• Horizontal Outreach7.00m (23 ft 0 in )
• Hydraulic Platform Rotator124 Degrees +/- 62 Degrees
• Hydraulic Reservoir40 Litres (10.6 gal)
• Ifc Export AsIfcTransportElement
• Ifc Export TypeIfcTransportElementType
• Ja0.00 °
• Ja 1180.00 °
• J Ha0.00 °
• J Ha 1180.00 °
• Jib Overall Length1.68 m ( 5 ft 6 in)
• Jib Range Of Articulation89° (+0/- 89 Degrees)
• KeynoteX
• Machine Weight ANSI4828 lbs
• Machine Weight CE2190 kg
• ManufacturerSunbelt Rentals (Hinowa)
• Manufacturer NameSunbelt Rentals (Hinowa)
• Materialn/a
• Max Ground Pressure Of Tracks2.41 kg/cm2 (34.21 psi)
• Max Ground Pressure Per Stabiliser Leg2.50 kg/cm² (35.55 psi)
• Max Working Gradient1 Degree
• ModelCompact Crawler Boom - Lightlift 17-75 (Electric)
• Model NumberLightlift 17-75 (Electric)
• Model ReferenceCompact Crawler Boom
• NBS DescriptionLift platforms
• NBS Noten/a
• NBS Object NameSunbelt Rentals - Lift platforms
• NBS Office Master Tagn/a
• NBS Referencen/a
• Noise At 15mdB N/A
• Noise At 1mdB N/A
• Noise At 7mdB N/A
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• OrangeSunbeltRentals_Primary_Green
• P Ha69.20 °
• P Ha 1110.80 °
• Platform Capacity Unrestricted ANSI510 lbs
• Platform Capacity Unrestricted CE230 kg
• Platform Height14.96m (49 ft 1 in )
• Platform Rotator124 Degrees (+/-62 Degrees)
• Platform Size0.69 m x 1.34 m (2 ft 3 in x 4 ft 5 in)
• Production Year2023
• Product Page LinkTBC
• Reach27
• RedSunbeltRentals_Tertiary_Red
• Referenced Standardn/a
• Replacement Costn/a
• RubberSunbeltRentals_Tire
• Shapen/a
• Sizen/a
• SKU080/020
• Slope Tolerance12 Degrees
• Spare Partsbim@sunbeltrentals.co.uk
• Tracks1.24 x 0.18 x 0.30m
• Transportation ConditionNo
• Turning Radius0m
• Type CommentsCompact Crawler Boom - Lightlift 17-75 (Electric)
• Type NameCompact Crawler Boom - Lightlift 17-75 (Electric)
• Unique Model Reference FAPL1001129431
• Up And Over Height7.75 m (25 ft 5 in)
• URLwww.sunbeltrentals.co.uk/
• U Value Of External Wallsw/m°c N/A
• U Value Of Roofw/m°c N/A
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborbim@sunbeltrentals.co.uk
• Warranty Guarantor Partsbim@sunbeltrentals.co.uk
• Watt Hours Per Day0 W
• WhiteSunbeltRentals_Primary_White
• Yellow ClearanceSunbeltRentals_ClearanceYellow
