Sunbelt Rentals - Compact Crawler Boom - Hinowa Lightlift 15-70 (Diesel)

Object metadata

• _AuthorHinowa
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-15-70-diesel/document/object-user-guide
• A1a43.19 °
• A1a 1223.19 °
• A2a43.19 °
• A2a 1223.19 °
• Accessibility Performancen/a
• AE17 mm
• A Ea70.05 °
• A Ea 1250.05 °
• AE Ha43.19 °
• AE Ha 1223.19 °
• Articulating Jib1.68 m (5 ft 6 in) Articulating Jib
• Assembly CodeE1030100
• Asset TypeMoveable
• BeigeSunbeltRentals_Primary_White
• BIM Object NameSunbeltRentals_CompactCrawlerBoom_Hinowa_Lightlift15-70_Diesel
• BlackSunbeltRentals_Primary_Black
• Blue ClearanceSunbeltRentals_ClearanceBlue
• Classification NameUniclass2015
• Classification ValueTE_30_30_10_60
• ClearanceSunbeltRentals_Clearance
• CO2 Per Litre Of Diesel Consumedkg N/A
• CO2 Per Litre Of HVO Consumedkg N/A
• CO2 Per Litre Of Petrol Consumedkg N/A
• Code Performancen/a
• ColorGreen
• Constituentsn/a
• Created Bybim@sunbeltrentals.co.uk
• Created On2024-01-01T09:00:00
• DescriptionHinowa Lightlift 15 -70 Compact tracked platform design allows for access on busy , hard to reach sites.
• Documentation Certificateswww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-15-70-diesel/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-15-70-diesel/document/installation-guide

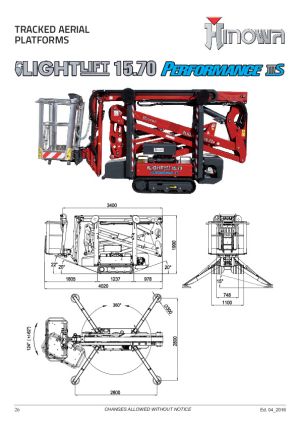

• Documentation Literaturewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-15-70-diesel/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-15-70-diesel/document/maintenance-information

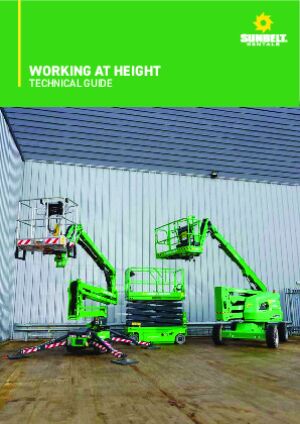

• Documentation Technicalwww.bimstore.co/products/sunbelt-rentals-compact-crawler-boom-lightlift-15-70-diesel/document/technical-data-sheet
• Drive MotorsHONDA iGX 390 Petrol 8.7kW (11.67 bhp)
• Drive Speed1.40-2.60 kph (0.90-1.60 mph)
• Duration UnitYears
• Electrical System12v
• Embodied Carbonkg N/A
• Expected Life0
• Featuresn/a
• Finishn/a
• Fuel Consumption Per Hour At Average Use 75 Percent Loadl/h N/A
• Fuel Consumption Per Hour At Heavy Use 100 Percent Loadl/h N/A
• Fuel Consumption Per Hour At Light Use 50 Percent Loadl/h N/A
• Fuel Tank Capacity5.30 Litres (1.40 gal)
• Graden/a
• Gradeability28.7%
• GreySunbeltRentals_Secondary_LightGrey
• Ground Clearance0.47 m (1 ft 6.5 in)
• H1a43.19 °
• H1a 1223.19 °
• Horizontal Outreach6.10m (20 ft )
• Hydraulic Platform Rotator124 Degrees +/- 62 Degrees
• Hydraulic Reservoir24 Litres (6.34 gal)
• Ifc Export AsIfcTransportElement
• Ifc Export TypeIfcTransportElementType
• Ja0.00 °
• Ja 1180.00 °
• J Ha0.00 °
• J Ha 1180.00 °
• Jib Overall Length1.68 m ( 5 ft 6 in)
• Jib Range Of Articulation89° (+0/- 89 Degrees)
• KeynoteX
• Machine Weight ANSI4299 lbs
• Machine Weight CE1950 kg
• ManufacturerSunbelt Rentals (Hinowa)
• Manufacturer NameSunbelt Rentals (Hinowa)
• Materialn/a
• Max Ground Pressure Of Tracks0.57 kg/cm2 (8.11 psi)
• Max Ground Pressure Per Stabiliser Leg2.41 kg/cm²
• Max Stabilisation Slope15°
• Max Working Gradient1 Degree
• ModelCompact Crawler Boom - Lightlift 15-70 (Diesel)
• Model NumberLightlift 15-70 (Diesel)
• Model ReferenceCompact Crawler Boom
• NBS DescriptionLift platforms
• NBS Noten/a
• NBS Object NameSunbelt Rentals - Lift platforms
• NBS Office Master Tagn/a
• NBS Referencen/a
• Noise At 15mdB N/A
• Noise At 1mdB N/A
• Noise At 7mdB N/A
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• OrangeSunbeltRentals_Primary_Green
• P Ha70.05 °
• P Ha 1109.95 °
• Platform Capacity Unrestricted ANSI500 lbs
• Platform Capacity Unrestricted CE230 kg
• Platform Height13.30m (43 ft 7 in )
• Platform Rotator124 Degrees (+/-62 Degrees)
• Platform Size1.34 m x 0.69 m (4 ft 4 in x 2 ft 3 in)
• Production Year2023
• Product Page LinkTBC
• Reach24
• Referenced Standardn/a
• Replacement Costn/a
• RubberSunbeltRentals_Tire
• Shapen/a
• Sizen/a
• SKU080/014
• Spare Partsbim@sunbeltrentals.co.uk
• Tracks1.24 x 0.18 x 0.30m Low Profile Non-Marking Rubber
• Transportation ConditionNo
• Turning Radius0m
• Type CommentsCompact Crawler Boom - Lightlift 15-70 (Diesel)
• Type NameCompact Crawler Boom - Lightlift 15-70 (Diesel)
• Unique Model Reference FAPL1001245036
• Up And Over Height7 m (22 ft 12 in)
• URLwww.sunbeltrentals.co.uk/
• U Value Of External Wallsw/m°c N/A
• U Value Of Roofw/m°c N/A
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborbim@sunbeltrentals.co.uk
• Warranty Guarantor Partsbim@sunbeltrentals.co.uk
• Watt Hours Per Day0 W
• WhiteSunbeltRentals_Primary_White
• Yellow ClearanceSunbeltRentals_ClearanceYellow
