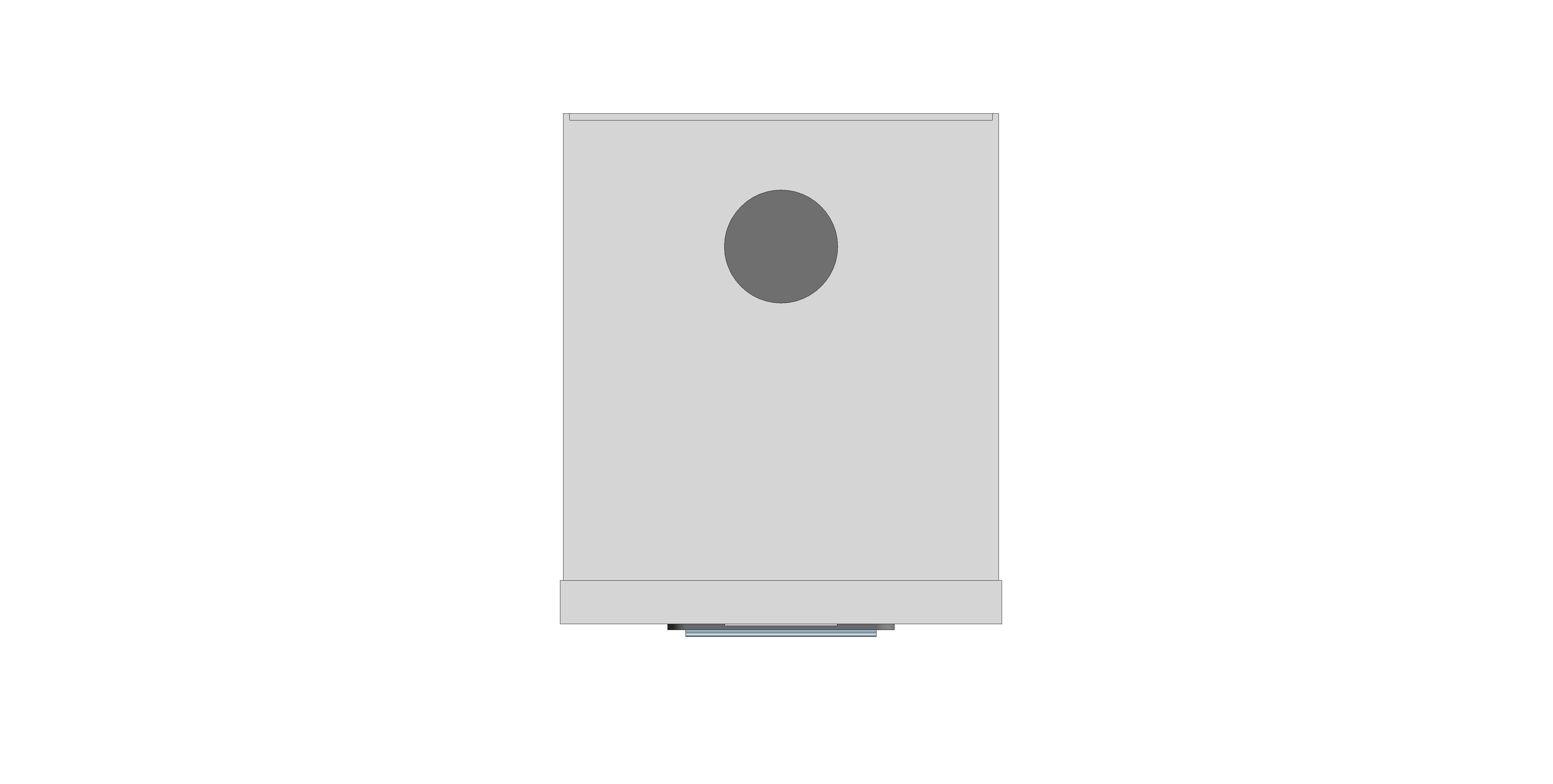

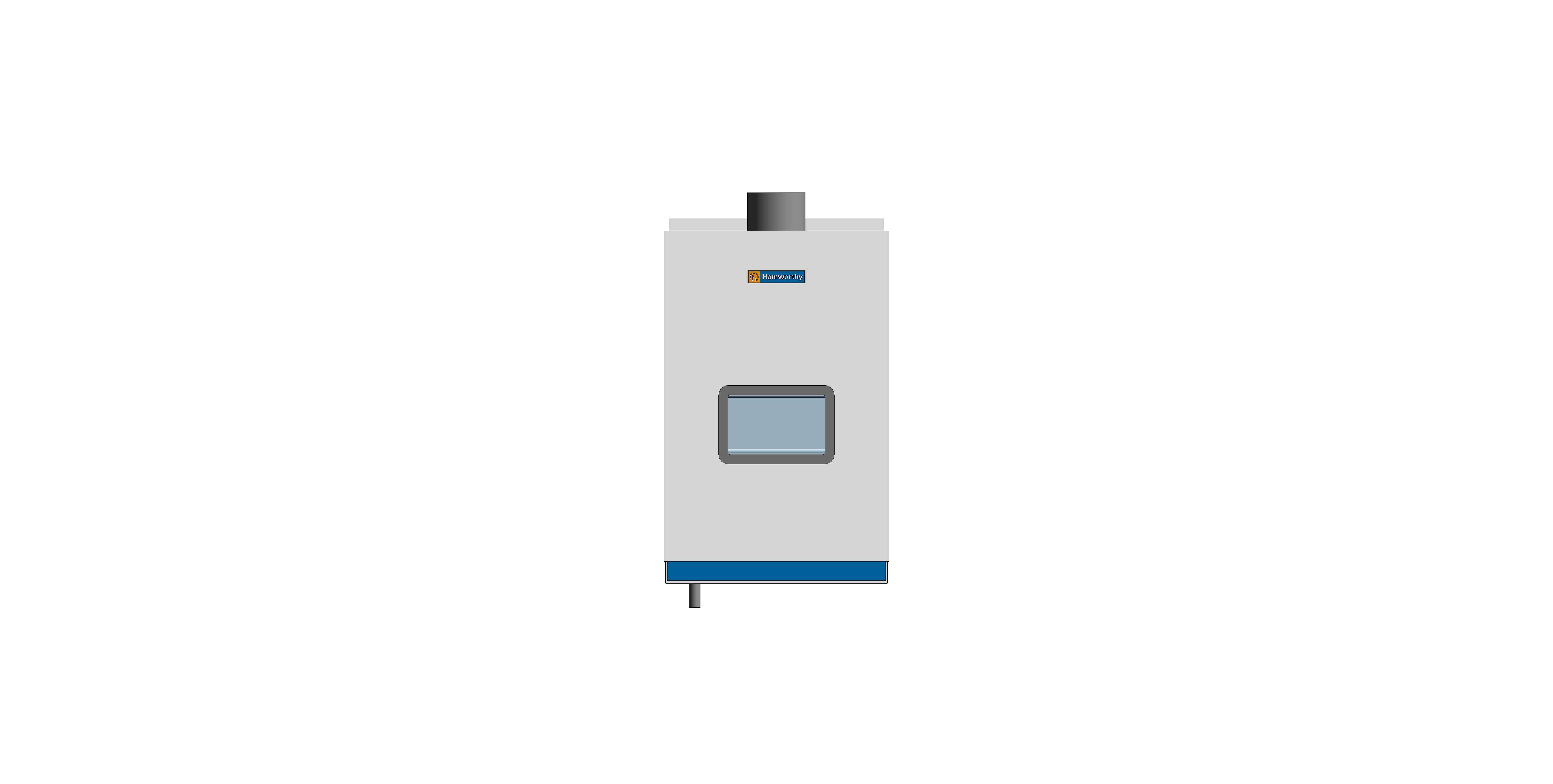

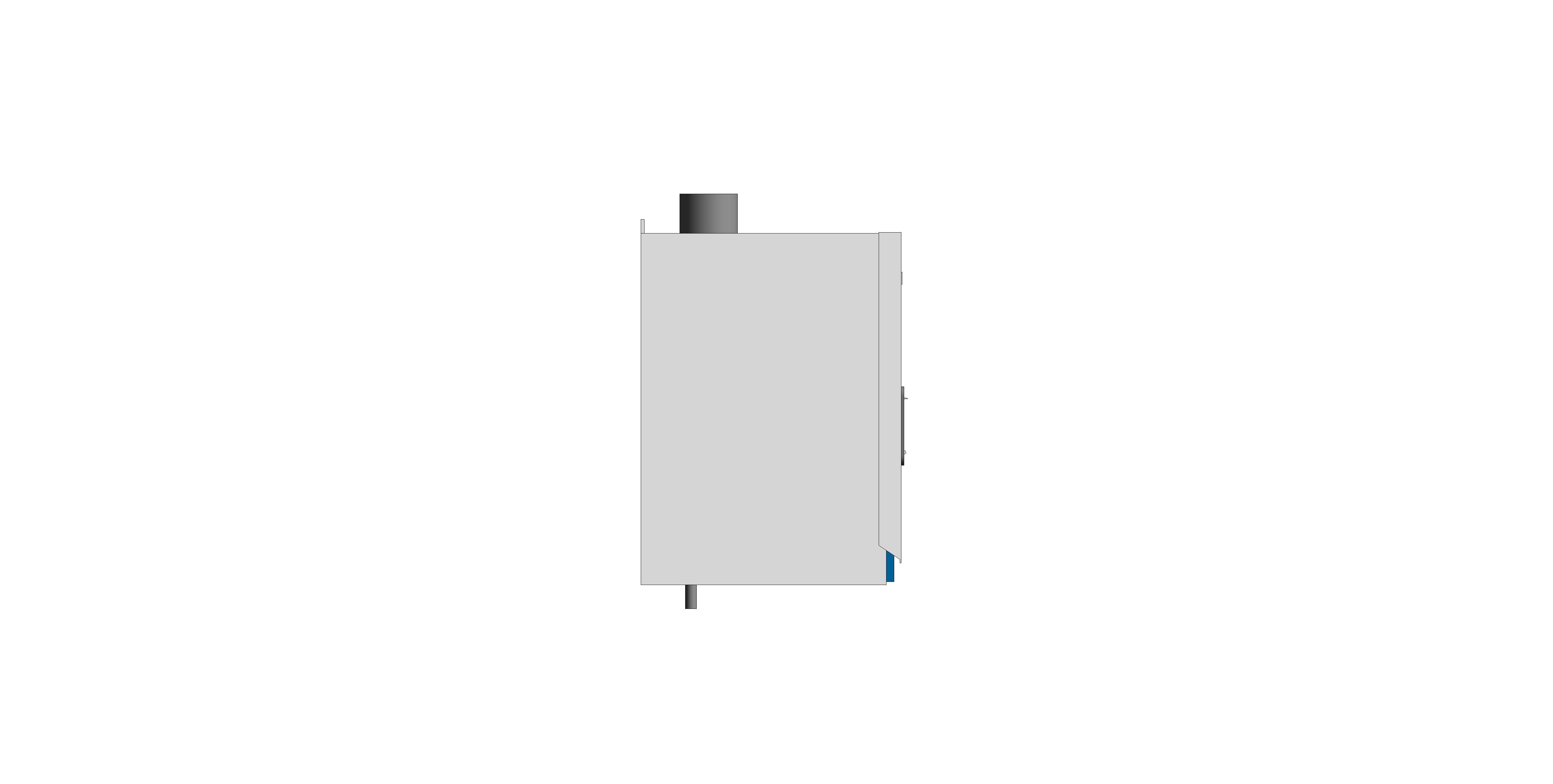

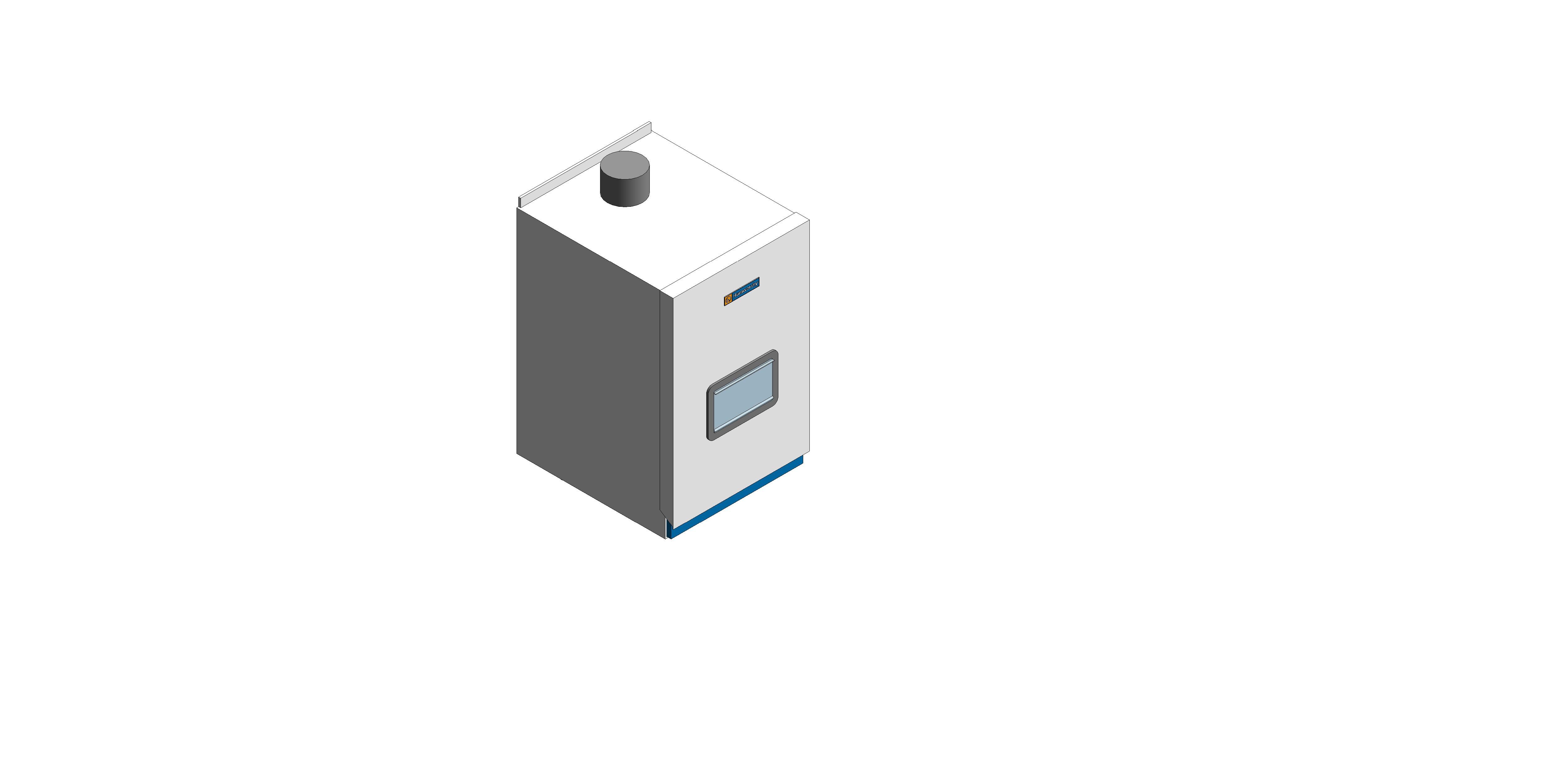

Stratton Mk3 Condensing Boiler (Single)

Description

The Stratton mk3 is a wall hung condensing boiler offering a small and durable solution suitable for even the tightest plant rooms. Particularly suited to low height plantrooms, the boiler is less than 2 metres from ground to the top of the frame when mounted on our low height pipe kit.

Object Data

1 Revision

Last Updated

21/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

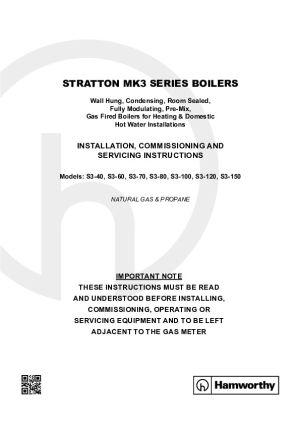

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/stratton-mk3-condensing-boiler-single/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameHamworthyHeating_Boiler_StrattonMk3_Single
Classification NameUniclass 2015
Classification ValuePr_60_60_08_34
Clearance Bottom100 mm
Clearance Front800 mm
Clearance Side250 mm
Clearance ZoneHamworthy Heating - Clearance Zone
Code PerformanceUKCA/CE certificated
ColorWhite
Constituentsn/a
Created Bytechnical@hamworthy-heating.com
Created On2023-03-16T09:00:00
Default Elevation0 mm
Depth668 mm
DescriptionThe Stratton mk3 is a wall hung condensing boiler offering a small and durable solution suitable for even the tightest plant rooms. Particularly suited to low height plantrooms, the boiler is less than 2 metres from ground to the top of the frame when mounted on our low height pipe kit.
Documentation Certificateswww.bimstore.co/products/stratton-mk3-condensing-boiler-single/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/stratton-mk3-condensing-boiler-single/document/installation-guide
Documentation Literaturewww.bimstore.co/products/stratton-mk3-condensing-boiler-single/document/product-literature
Documentation Maintenancewww.bimstore.co/products/stratton-mk3-condensing-boiler-single/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/stratton-mk3-condensing-boiler-single/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesStainless steel heat exchanger for added durability. Low height for tight plantrooms. Up to 5:1 turndown ratio. Up to 97% gross seasonal efficiency. NOx class 6. Single units can be cascaded for larger installations. Advanced sequence control for up to 16 boiler modules. Easy access for service and system cleaning. Connections in recess at base of the boiler. Suitable for natural gas (all sizes) and LPG (up to 120kW) applications. Full range of hydraulic separation options available. Room sealed flue options
Finishn/a
Flue_Dia150 mm
Graden/a
H66 mm
Height895 mm
I75 mm
Ifc Export AsIfcBoiler
Ifc Export TypeIfcBoilerTypeEnum.WATER
KeynoteT32
M123 mm
ManufacturerHamworthy Heating
Manufacturer NameHamworthy Heating
Materialn/a
ModelStratton Mk3
Model NumberStratton Mk3
Model Reference100kW
NBS DescriptionGas-fired condensing boilers
NBS Noten/a
NBS Object NameHamworthy Heating - Gas-fired condensing boilers
NBS Office Master Tagn/a
NBS Reference90-40-05/340
Nominal Depth668 mm
Nominal Height895 mm
Nominal Length487 mm
O32 mm
Offset0 mm
P25 mm
Production Year2023
Q32 mm
Referenced Standardn/a
Replacement Costn/a
S24 mm
ShapeRectangle
Size487x668x895mm
Spare Partstechnical@hamworthy-heating.com
Type Comments100kW
Type Name100kW
URLwww.hamworthy-heating.com/
Warranty Description5 year warranty, terms and conditions apply.
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@hamworthy-heating.com
Warranty Guarantor Partstechnical@hamworthy-heating.com
Width487 mm
