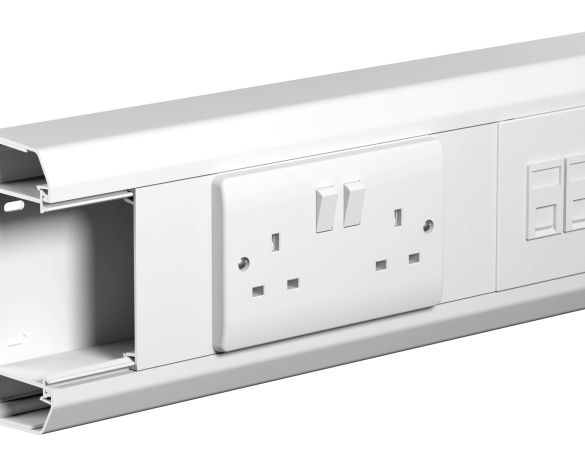

Sterling Compact is an economical and stylish three-compartment trunking, compact in size and designed to fit within areas that may have trunking height restrictions. Each compartment can be accessed independently.

This range is completely interchangeable with and visually identical to the traditional Mono Plus 20 system.

Object metadata

_AuthorMarshall-Tufflex Ltd
_Created Bywww.marshall-tufflex.com
_Current Revision2
Access Clearance Bottom0.000 mm
Access Clearance Front0.000 mm
Access Clearance Left0.000 mm
Access Clearance Rear0.000 mm
Access Clearance Right0.000 mm
Access Clearance Top0.000 mm
Accessibility Performancen/a
Accessorieswww.marshall-tufflex.com
Accessory Box Depth30mm
Assembly CodeD5010
Asset TypeFixed
BIM Object NameElectrical-Trunking_Dado-Marshall_Tufflex_Sterling-Compact_Complete
CE ApprovalYes
Classification NameUniclass2015
Classification ValuePr_65_70_11_61
Code Performancen/a
ColorWhite (RAL9003)
ColourWhite (RAL9003)
Compartments1
ConstituentsBase and Lids
Created BySales@marshall-tufflex.com
Created OnFEB-2020
Default Elevation1200.000 mm
DescriptionDado Trunking with three compartments and individual covers
Documentation Certificateswww.marshall-tufflex.com
Documentation Installation Guidewww.marshall-tufflex.com
Documentation Literaturewww.marshall-tufflex.com
Documentation Maintenancewww.marshall-tufflex.com
Documentation Technicalwww.marshall-tufflex.com
Duration UnitYears
Embodied Carbon0
Enclosure RatingIP4X
Energy Technology Listn/a
Environmental Product Declarationn/a
ErP Energy Labeln/a
Expected Life0
FinishMatt
Fittingswww.marshall-tufflex.com
Graden/a
Green Guidefor Specification0
Gross Weight0
Ifc Export AsIfcFlowSegment
Ifc Export TypeIfcCableSegmentType
KeynoteV90
Lid ConfigurationTamperproof
Life Cycle Analysisn/a
Location Of ManufacturerN 50°52'39" E 0°31'41"
ManufacturerMarshall-Tufflex Ltd
Manufacturer NameMarshall-Tufflex Ltd
Manufacturer Websitewww.marshall-tufflex.com
MaterialPVCu
Material Ingredient Reportingn/a
ModelSterling Compact
Model NumberEPM20
Model ReferenceSterling Compact
NBS Descriptionn/a
NBS Object NamePropietary Trunking
NBS Office Master Tagn/a
NBS Reference90-55-10/390
Nominal Depth0.000 mm
Nominal Height0.000 mm
Nominal Length0.000 mm
O&Mmanualwww.marshall-tufflex.com
Overall Height0.000 mm
Overall Length0.000 mm
Overall Width0.000 mm
Production Year2020
Product Literaturewww.marshall-tufflex.com
Product Model NumberEPM20
Referenced StandardBS EN 50085-1:2005+A1:2013
Reference StandardBS EN 50085-1:2005+A1:2013
Replacement CostSales@marshall-tufflex.com
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Shape140 x 50
Shipping Weight0
Spare PartsSales@marshall-tufflex.com
Sub-TypeBase and Lids
TypeTrunking Dado MT Sterling Compact
Type CommentsTrunking Dado Skirting MT Sterling Compact
Type NameElectrical-Trunking_Dado-Marshall_Tufflex_Sterling-Compact_Complete
URLwww.marshall-tufflex.com
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor LaborSales@marshall-tufflex.com
Warranty Guarantor PartsSales@marshall-tufflex.com
