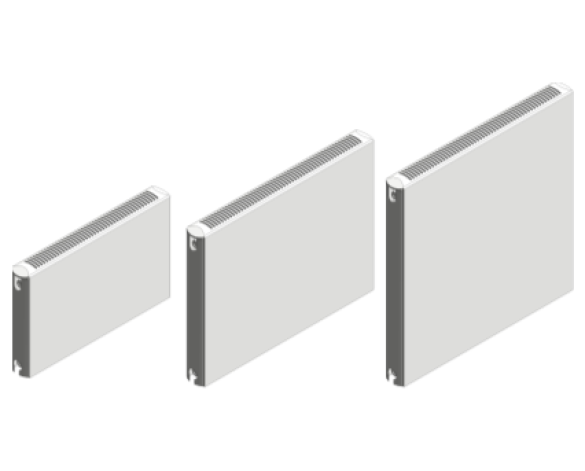

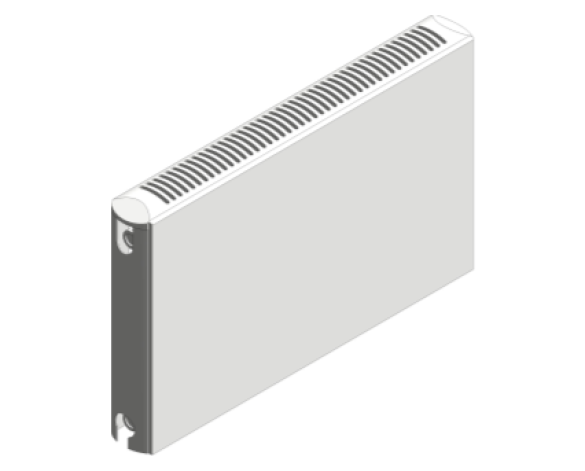

Softline Plan Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

The minimalistic, stylish design of a Softline Plan has an understated, flat finish which is simplicity at its best.

It’s the ultimate in minimalism for radiators as the slim profile of the Softline Plan is an attractive addition to any space.

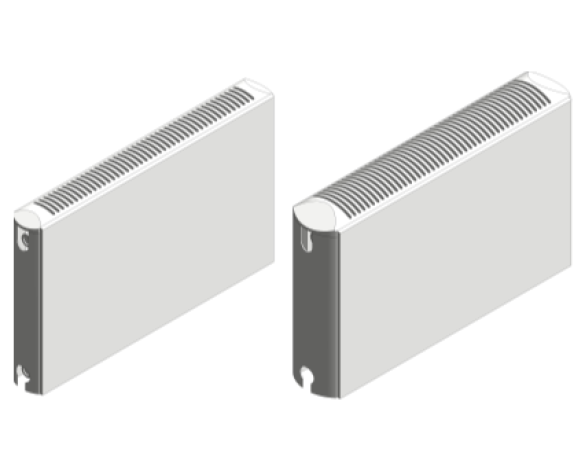

Avaiable in K1 or K2 variations with lengths 400mm - 2000mm and 300mm, 450mm, 600mm heights.

Click here to view our interactive brochure

Object Data

1 Revision

Last Updated

21/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorJY
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
Access Clearance Bottom0.000000000000 mm
Access Clearance Front0.000000000000 mm
Access Clearance Left0.000000000000 mm
Access Clearance Rear0.000000000000 mm
Access Clearance Right0.000000000000 mm
Access Clearance Top0.000000000000 mm
Air VentNo
Assembly CodeD3020
Asset TypeFixed
BIM Object NameMechanical_Equipment-Radiators-Stelrad-Softline_Plan_K1
Bracket A150.000000000000 mm
Bracket B60.000000000000 mm
Bracket C17.000000000000 mm
Casing MaterialMild Steel
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
ColorWhite (RAL 9016)
ColourWhite (RAL 9016)
Connector Dia15.000000000000 mm
Connector Dia Calc7.500000000000 mm
Created Byinfo@stelrad.com
Created OnFeb16
Depth83.000000000000 mm
DescriptionThe minimalistic, stylish design of a Softline Plan has an understated, flat finish which is simplicity at its best. It’s the ultimate in minimalism for radiators as the slim profile of the Softline Plan is an attractive addition to any space.
Documentation Literaturespecifi.bimstore.co.uk/document/share/1559
Documentation Technicalspecifi.bimstore.co.uk/document/share/1559
Drain TapNo
Duration UnitYears
Expected Life0
FinishPainted
FinnedYes
Floor StandsNo
GradeK1
Gross Weight11.88
Heat Emitter MaterialMild Steel
Heat Output Btu/hr1600
Heat Output Watts469
Heat reflectorNo
Heat Transfer MediumConvection
Height300.000000000000 mm
Height From Floor0.000000000000 mm
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT30/350
Length1000.000000000000 mm
Location of ManufacturerRotherham, S64 8BN, United Kingdom
ManufacturerStelrad Ltd
MaterialMild Steel
Maximum Operating Pressure10.5
Maximum Operating Temperature8
Middle BracketNo
ModelStelrad Softline Plan
Model NumberStelrad Softline Plan
Mounting TypeWall Mounted
NBS DescriptionRadiators
NBS Object NameRadiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Number of PanelsN/A
Number of SectionsN/A
Outlet GrilleNo
Overall Height300.000000000000 mm
Overall Length1000.000000000000 mm
Pipe Connections Size15mm
Possible Connections PositionsBBOE
Product Literature2jomhg1cupfs2jxnrb3gelkt.wpengine.netdna-cdn.com/wp-content/uploads/2015/10/Softline-Plan-Tech-Bro.pdf
Product Model Number85301110
Product RangeStelrad Softline Plan
Production Year2016
Radiator MaterialStelrad - RAL 9016
Reference StandardEN 442 Certification Data - CETIAT tested in accordance with BS EN 442
Seam TypeN/A
ShapeRectangle (Horizontal)
Shipping WeightN/A
Size300 x 1000mm
TypeConvector
Type CommentsK1 - 300x1000mm
Type NameK1 - 300x1000mm
UIN85301110
URLwww.stelrad.com/
Wall BracketsYes
Warranty DescriptionInfo@stelrad.com
Warranty Duration Parts15
Warranty Duration UnitYears
Warranty Guarantor LaborInfo@stelrad.com
Warranty Guarantor PartsInfo@stelrad.com
Water Content1.89

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
