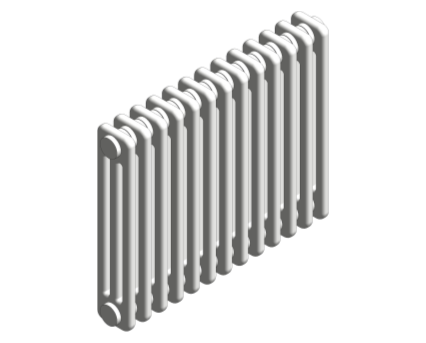

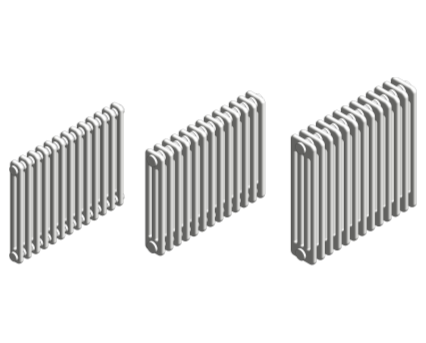

Softline Column Horizontal Radiator

by Stelrad Radiators Ltd

Download Add to collection

Description

Perfect designs for both contemporary and traditional interiors, the Softline Column is available in a range of sizes that will see these beautiful radiators matching virtually any space in the home.

Click here to view our interactive brochure

Object Data

2 Revision

Last Updated

20/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision3
_Distributed Bywww.bimstore.co
2 ColNo
3 ColYes
4 ColNo
6 Monthlyn/a
Access Clearance Bottom0 mm
Access Clearance Front0 mm
Access Clearance Left0 mm
Access Clearance Rear0 mm
Access Clearance Right0 mm
Access Clearance Top0 mm
Accessibility Performancen/a
Air VentYes
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameStelrad_MechanicalEquipment_Radiators_SoftlineColumnHorizontal
Casing Materialn/a
CE Approvaln/a
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColourRAL 9016
Columns3
Constituentsn/a
Created Byinfo@stelrad.com
Created On2019-06-13 T09:00:00
D73 mm
D2123 mm
Dailyn/a
DescriptionPerfect designs for both contemporary and traditional interiors, the Softline Column is available in a range of sizes that will see these beautiful radiators matching virtually any space in the home.
Documentation Certificateswww.bimstore.co/products/softline-column-horizontal/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/softline-column-horizontal/document/installation-guide
Documentation Literaturewww.bimstore.co/products/softline-column-horizontal/document/product-literature
Documentation Maintenancewww.bimstore.co/products/softline-column-horizontal/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/softline-column-horizontal/document/technical-data-sheet
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
FinishPainted
FinnedNo
Graden/a
Green Guide For Specificationn/a
Gross Weight15.4 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT32
Life Cycle Analysisn/a
Location Of Manufacturern/a
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerStelrad Ltd
Manufacturer NameStelrad Ltd
Manufacturer Websitewww.stelrad.com/
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure8000.0 kPa
Maximum Operating Temperature0 °C
Maximum Test Pressure10500.0 kPa
ModelSoftline Column Horizontal
Model Number563003
Model ReferenceSoftline Column Horizontal
Monthlyn/a
NBS DescriptionRadiators
NBS Noten/a
NBS Object NameStelrad Ltd - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth123 mm
Nominal Height300 mm
Nominal Length1042 mm
Number Of Panels0
O&M Manualn/a
Outlet GrilleNo
Overall Height300 mm
Overall Length1042 mm
Overall Width123 mm
Pipe Connections Size26 mm
Possible Connections PositionsTBOE Top, Bottom Opposite End
Pressure Drop0.0 kPa
Production Year2019
Product Literaturewww.bimstore.co/products/softline-column-horizontal/document/product-literature
Product Model Number563003
Product RangeSoftline
Quarterlyn/a
Reference StandardEN 442 Certification - CETIAT tested in accordance with BS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
ShapeRectangle
Shipping Weight0.00 kg
Size300 x 1042mm
Spare Partsn/a
Tag Numbern/a
Temperature Classificationn/a
Thermal Output704 W
Thermal Output-Btu/hr2402.752
TypeColumn
Type Comments300mm High x 1042mm Wide - 3 Col
Type Name300mm High x 1042mm Wide - 3 Col
URLwww.stelrad.com/
WA23 mm
Wall Bracket Height Offset100 mm
Wall Bracket Offset71 mm
Warranty Description5 year parts
Warranty Duration Laborn/a
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@stelrad.com
Warranty IDn/a
Water Content13.59 L
Water Flow Raten/a
Weeklyn/a
