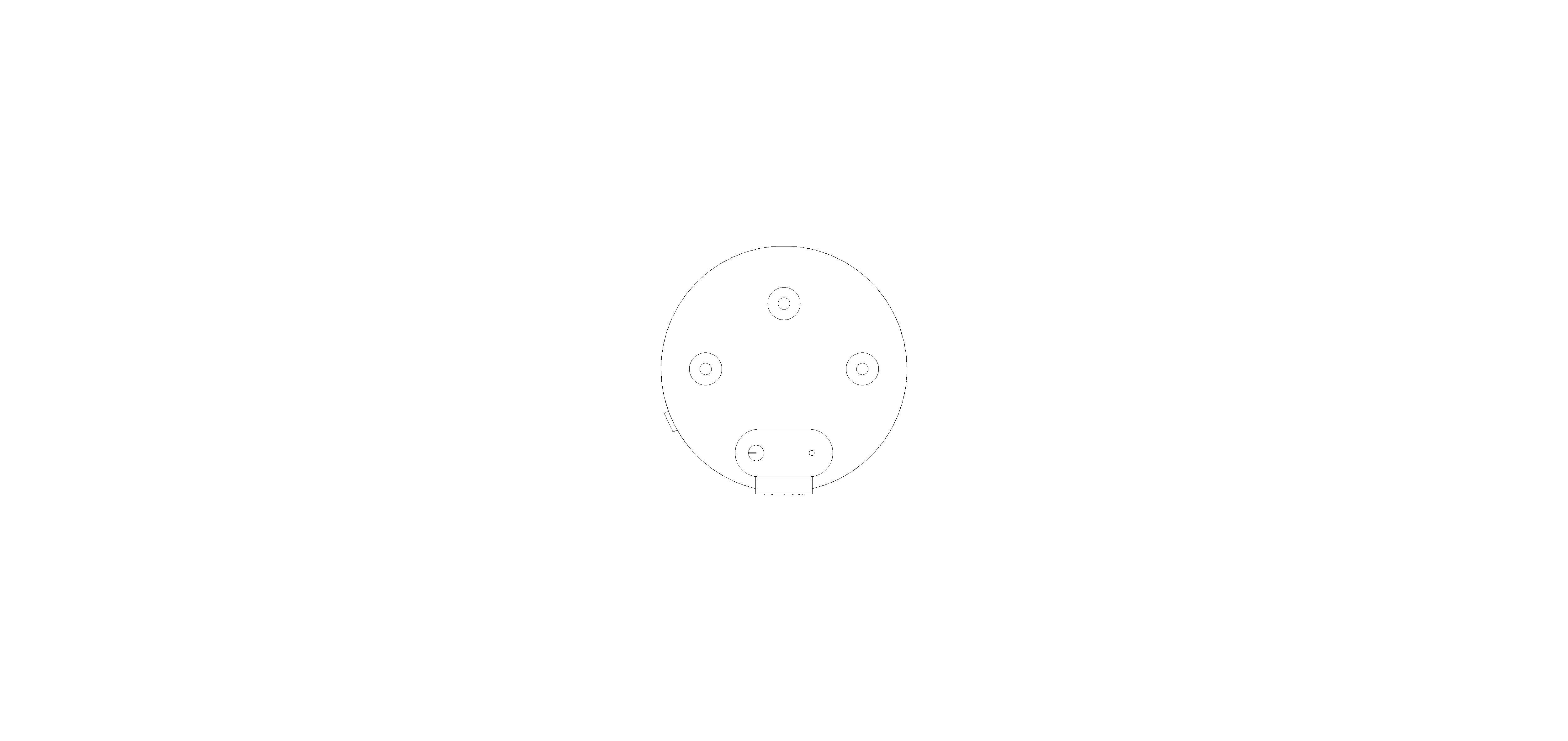

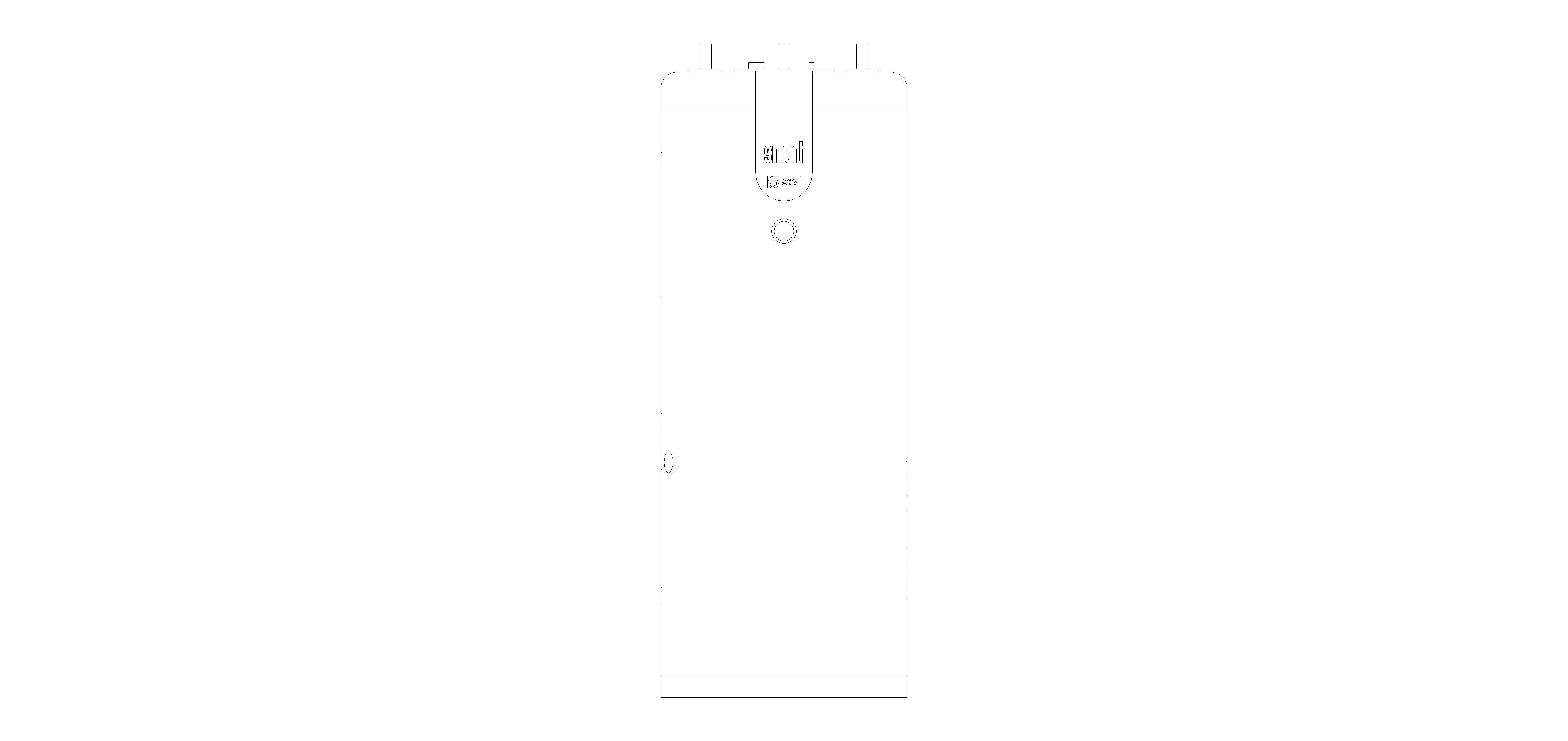

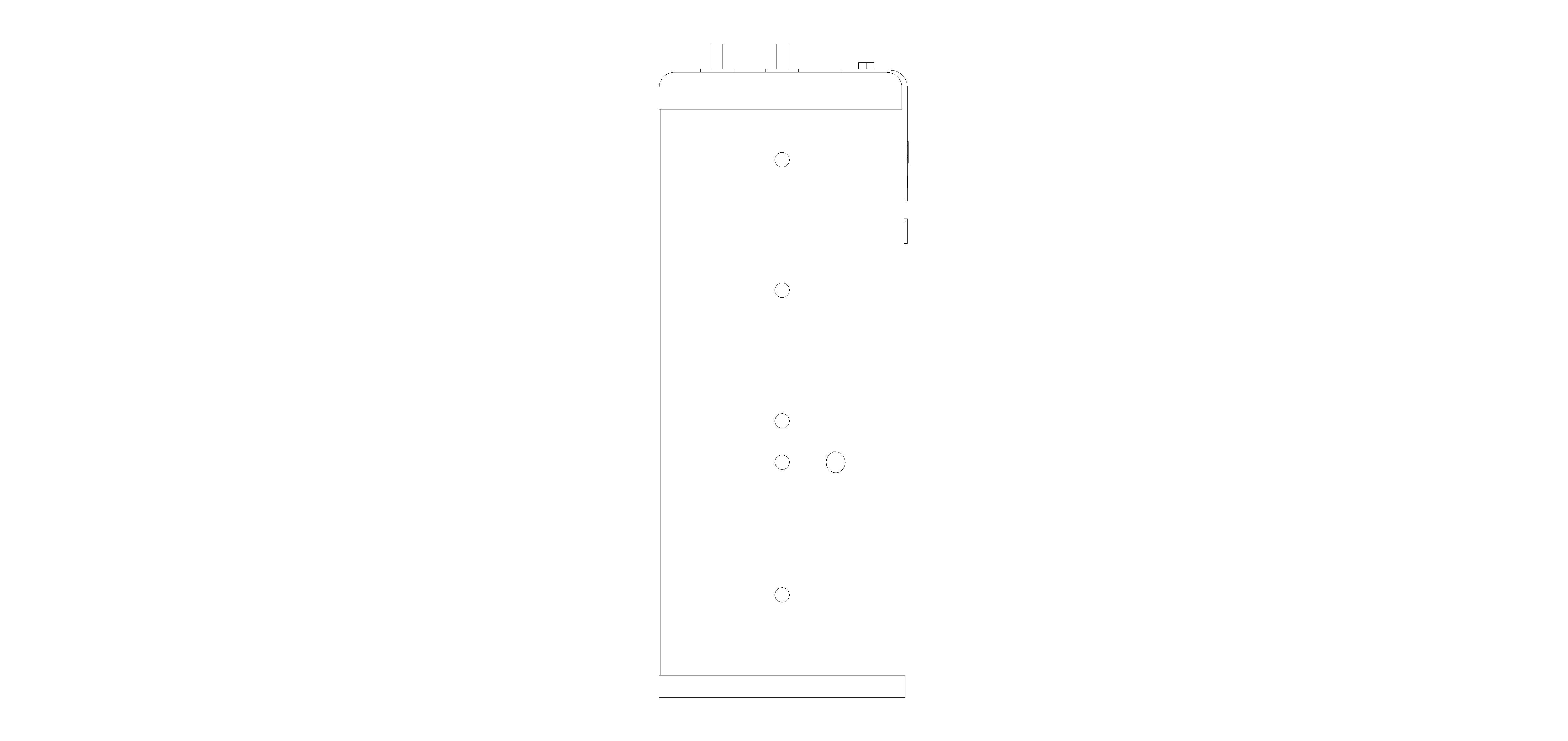

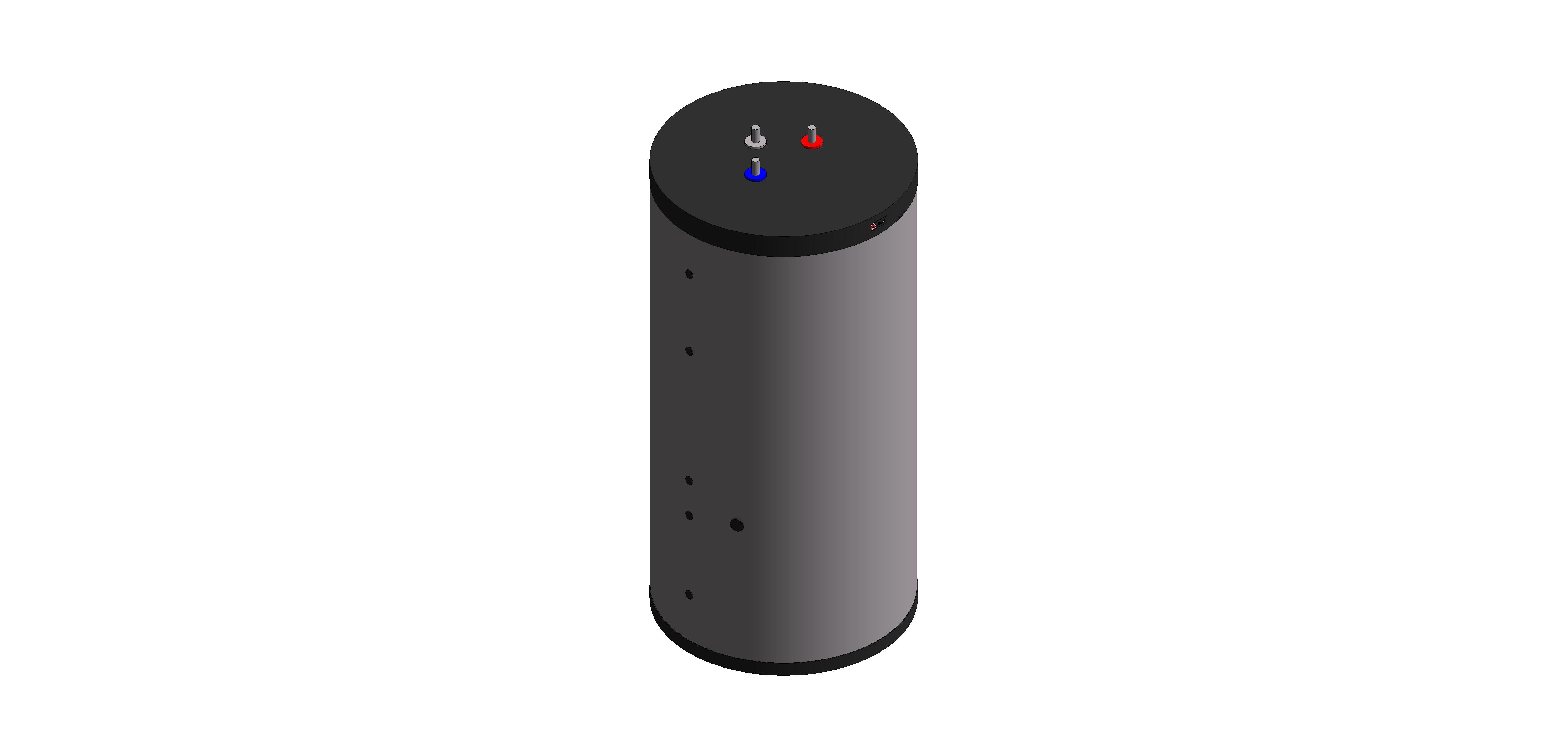

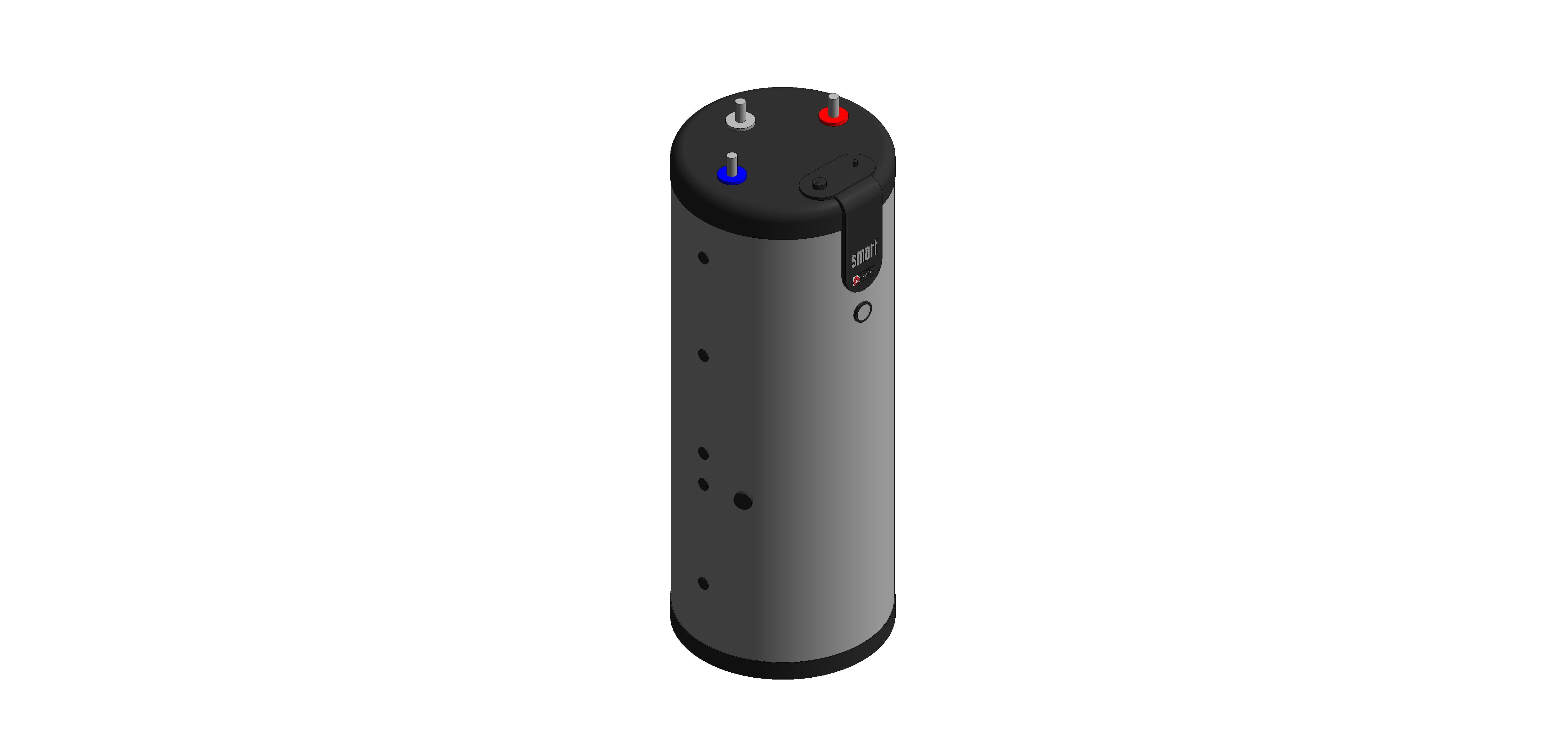

Smart ME indirect stainless steel cylinder

by ACV

Download Add to collection

Description

Stainless steel indirect cylinder with additional coil for use with multi energy sources for domestic hot water.

200-600L
Ideal for use with renewable energy such as heat pumps, solar, heat recovery and in district heating schemes due to large primary store
Can provide dual temperature outputs for different circuits such as underfloor heating (low temperature) and DHW (high temperature)

Click here to visit ACV for more information.

Object Data

1 Revision

Last Updated

14/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

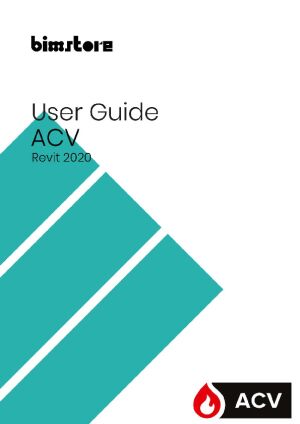

Object User Guide

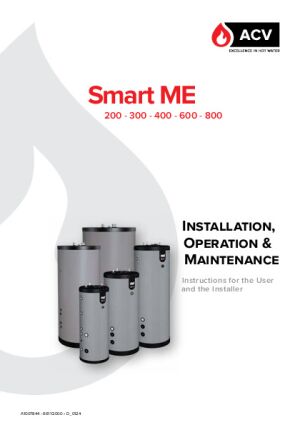

Installation Guide

Product Data Sheet

Object metadata

_Authoruk.sales@acvuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/77d109a9-6d91-4653-9f45-0bc2289d1774/document/object-user-guide
A235.00 mm
Accessibility Performancen/a
Article DescriptionMulti-Energy floor standing tank. Designed for a range of applications and a multiple choice of energy source
Article TypeSmart ME 200
Assembly CodeD3020100
Asset TypeFixed
B305.00 mm
BIM Object NameACV_StorageTank_SmartME_(200-400)
BlackColor RGB 040-040-040
BlueColor RGB 000-000-255
Boiler Radius277.50 mm
C95.00 mm
Classification NameUniclass 2015
Classification ValuePr_60_50_20_42
Code Performancen/a
ColorGrey
Constituentsn/a
Control Panel Length115.00 mm
Created Byuk.sales@acvuk.com
Created On2026-01-13T09:00:00
D300.00 mm
Default Elevation0.00 mm
Depth565.00 mm
DescriptionMulti-Energy floor standing tank. Designed for a range of applications and a multiple choice of energy source
DHW Continuous Flow 60 Degree Celcius0.450 CMH
Documentation Certificateswww.bimstore.co/products/77d109a9-6d91-4653-9f45-0bc2289d1774/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/77d109a9-6d91-4653-9f45-0bc2289d1774/document/installation-guide
Documentation Literaturewww.bimstore.co/products/77d109a9-6d91-4653-9f45-0bc2289d1774/document/product-literature
Documentation Maintenancewww.bimstore.co/products/77d109a9-6d91-4653-9f45-0bc2289d1774/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/77d109a9-6d91-4653-9f45-0bc2289d1774/document/technical-data-sheet
Domestic Cold Water Diameter19.05 mm
Domestic Connectors Position280.00 mm
Domestic Hot Water Auxiliary Diameter19.05 mm
Domestic Hot Water Diameter19.05 mm
Domestic Position360.00 mm
Duration UnitYears
E300.00 mm
Electrical Element Height540.00 mm
ETIM Article ClassEC011392
Expected Life0
Export Type to IFC AsIfcTank
F245.00 mm
FeaturesIncreased heating surface for rapid domestic hot water recovery.
Finishn/a
Frequency50 Hz
G80.00 mm
GLN5400891000007
Graden/a
GreyColor RGB 155-155-155
GTIN5400891001905
H120.00 mm
Height1500.00 mm
Hydronic Diameter25.40 mm
I525.00 mm
Ifc Export AsIfcTank
Ifc Export Typen/a
KeynoteT32
Logo Position265.00 mm
ManufacturerACV
Manufacturer Art No06625101
Manufacturer NameACV
Manufacturer URLwww.acv.com/international/customer/dl/461
Materialn/a
Maximum Supply Temperature Operating Temperature90 °C
Max Pressure DHW8.6 bar
Max Pressure Heating3.0 bar
Middle Diameter560.00 mm
ModelSmart ME 200
Model NumberSmart ME 200
Model ReferenceSmart ME
NBS DescriptionIndirectly heated unvented hot water storage cylinders
NBS Noten/a
NBS Object NameACV - Indirectly heated unvented hot water storage cylinders
NBS Office Master Tagn/a
NBS Reference90-15-35/340
Nominal Depth565.00 mm
Nominal Height1500.00 mm
Nominal Length565.00 mm
Production Year2026
Product LineSmart ME
Rated Current Fuse6 A
RedColor RGB 255-000-000
Referenced Standardn/a
Reference Line Depth193.00 mm
Reference Line Length0.00 mm
Replacement Costn/a
ShapeCylinder
Sizen/a
Smart ME200Yes
Smart ME300and 400No
Spare Partsuk.sales@acvuk.com
Storage Energy Efficiency ClassB
Total Capacity203.0 L
Type CommentsSmart ME 200
Type IFC Predefined TypeNOTDEFINED
Type NameSmart ME 200
URLwww.acv.com/gb
Use Nominal DiameterYes
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboruk.sales@acvuk.com
Warranty Guarantor Partsuk.sales@acvuk.com
Weight68.00 kg
Width565.00 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
