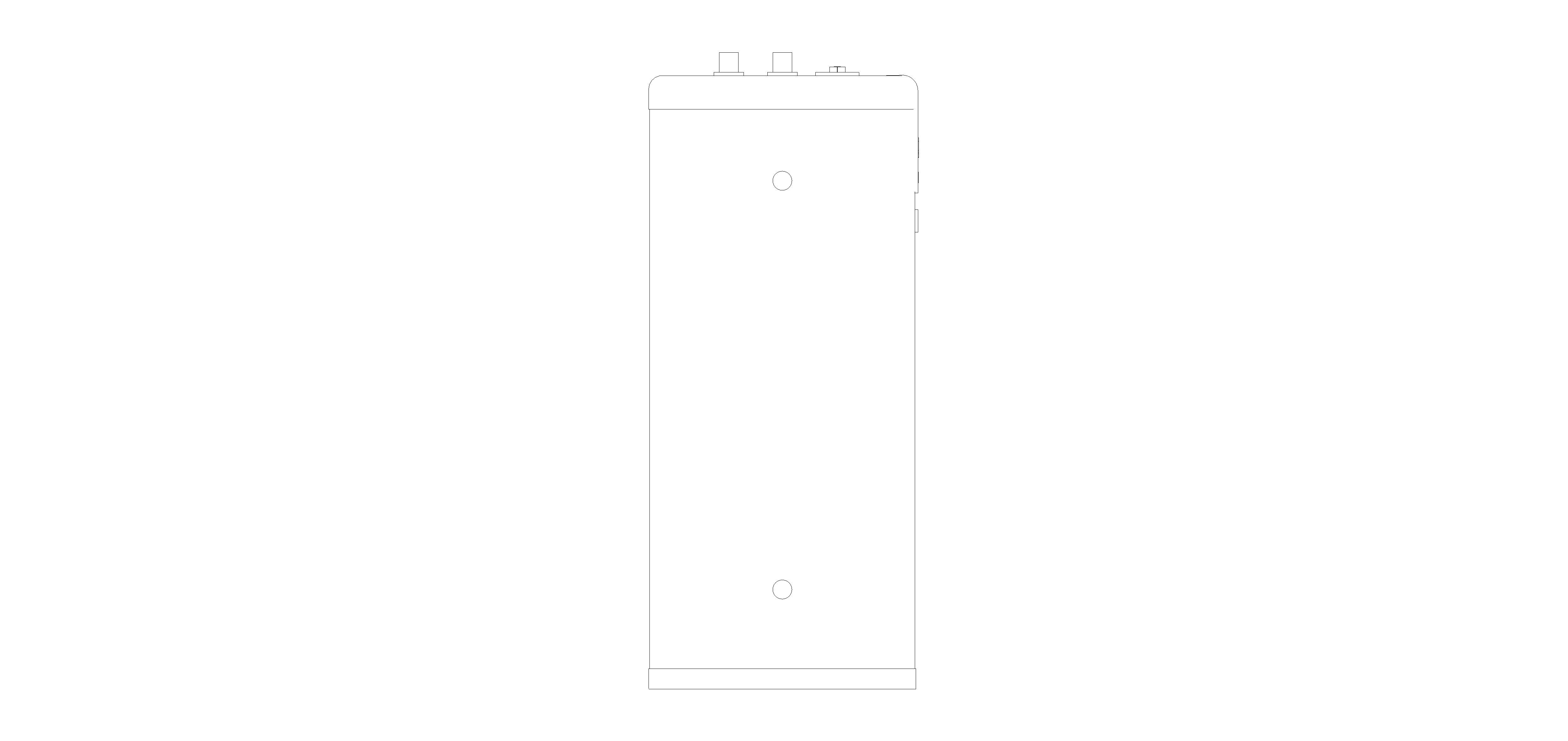

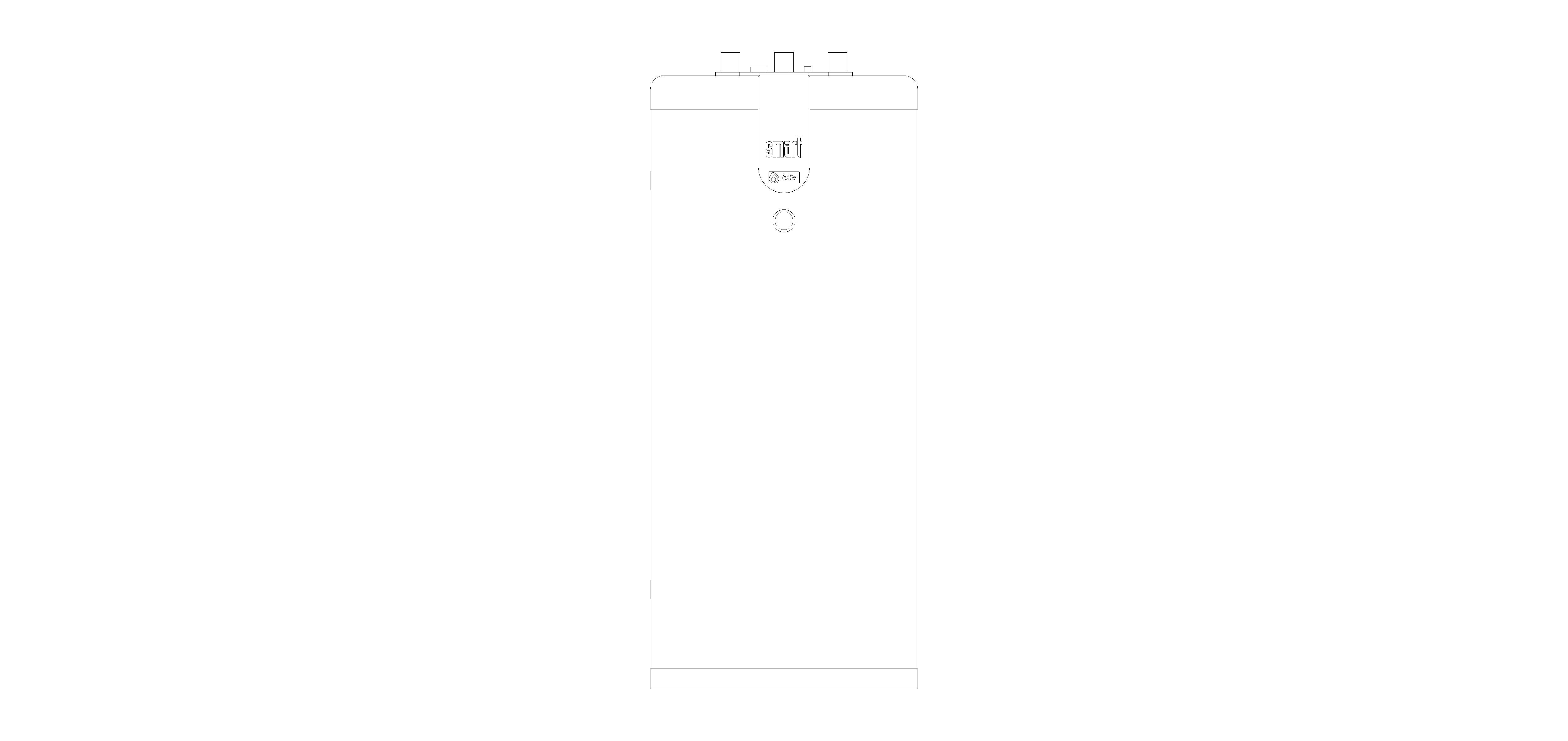

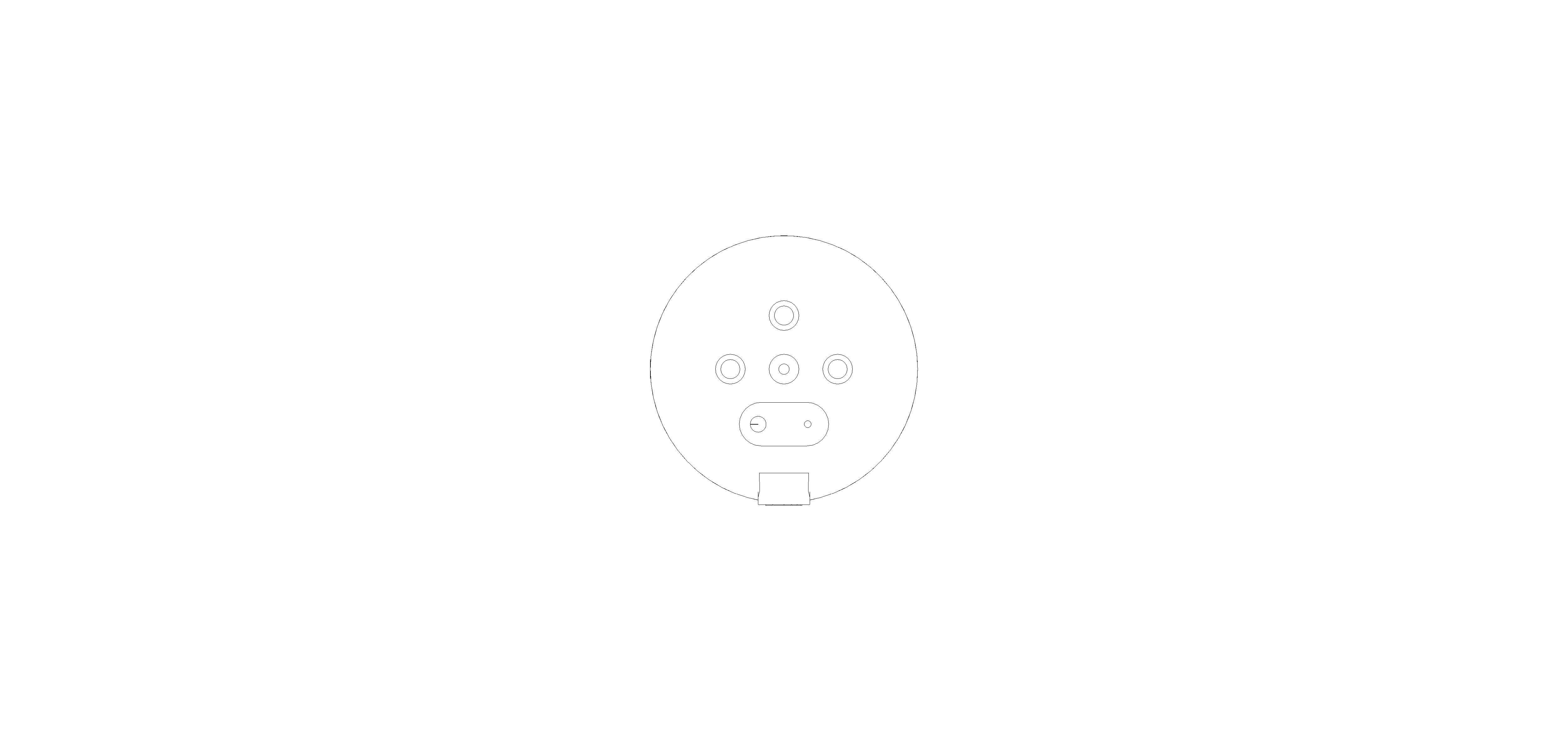

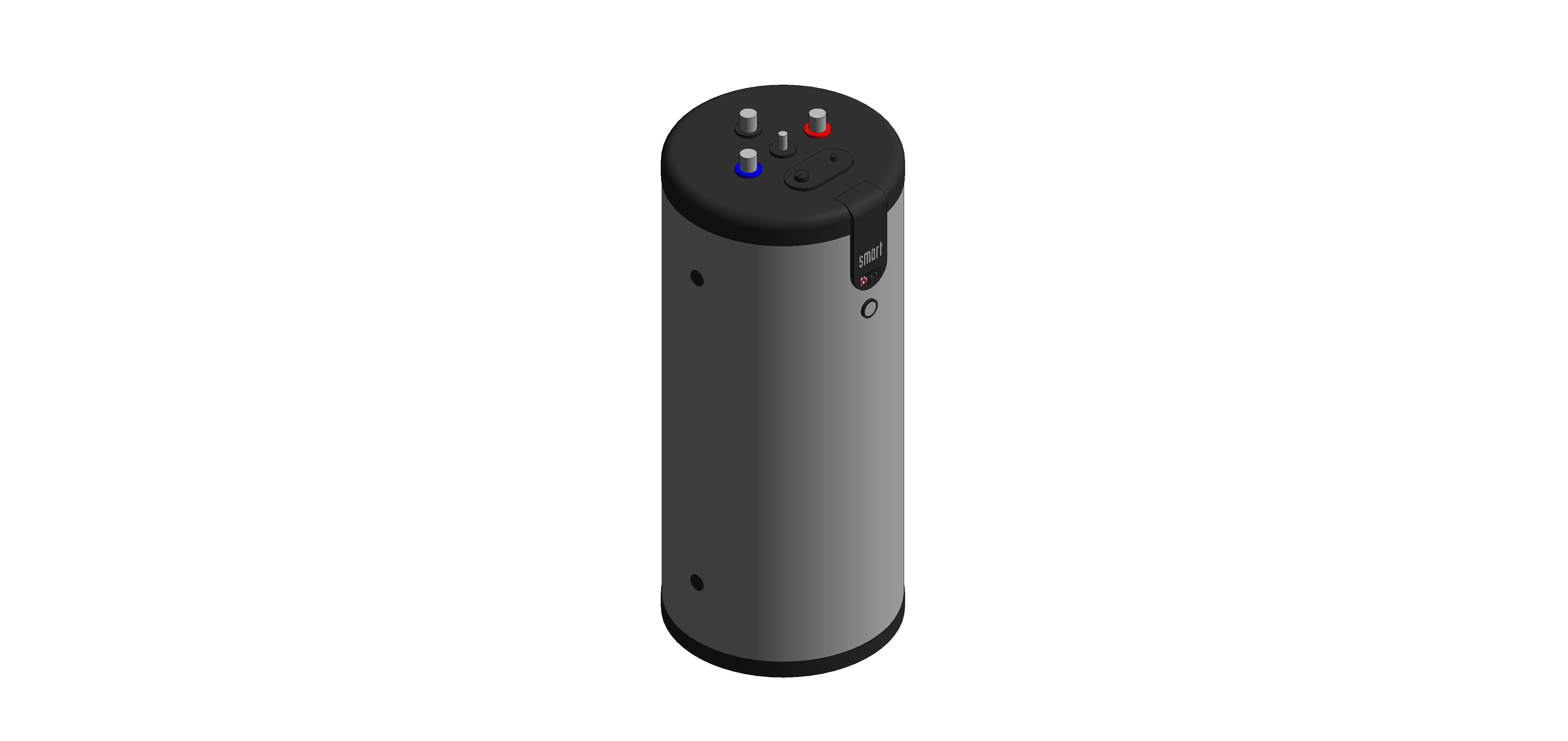

Smart L indirect stainless steel cylinder

by ACV

Download Add to collection

Description

Stainless steel indirect cylinder for domestic hot water.

320-600L
Cost effective solution, simple installation with no de-stratification kit needed and no flue requirements
Low maintenance with no anode protection required
Low standing losses – cylinder comes with polyurethane foam insulation and hard-wearing polypropylene finish
Integrated legionella protection
Long life corrosion resistant stainless steel cylinder

Click here to visit ACV for more information.

Object Data

1 Revision

Last Updated

14/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

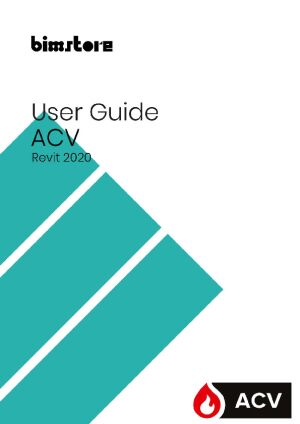

Object User Guide

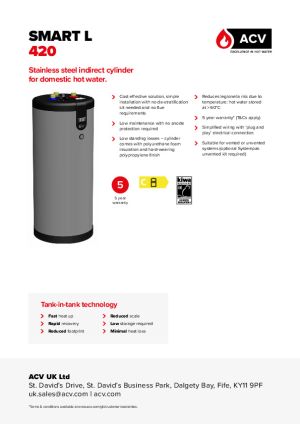

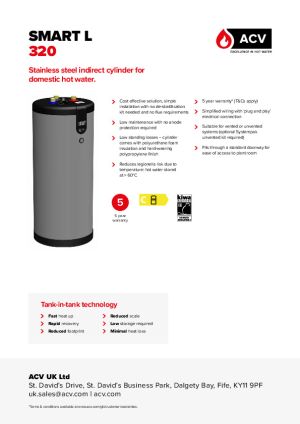

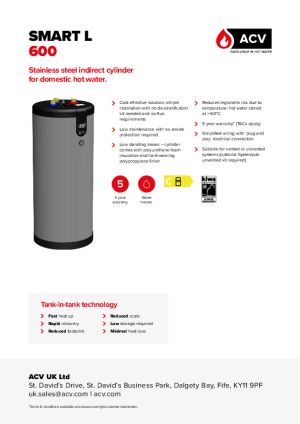

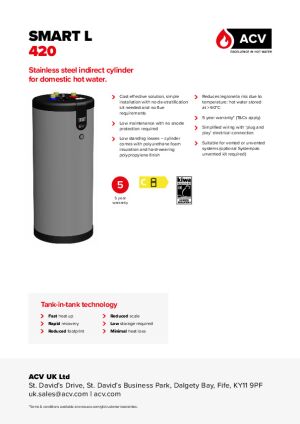

Technical Data Sheet

Product Data Sheet

Technical Data Sheet

Technical Data Sheet

Object metadata

_Authoruk.sales@acvuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/ad97f4a4-11a5-4364-9031-7540d203485d/document/object-user-guide
Accessibility Performancen/a
Article DescriptionStainless steel indirect cylinder for domestic hot water
Article TypeSmart L 320
Assembly CodeD3020100
Asset TypeFixed
B1280.000 mm
BIM Object NameACV_StorageTank_SmartL_(320-420)
BlackColor RGB 040-040-040
BlueColor RGB 000-000-255
C250.000 mm
Classification NameUniclass 2015
Classification ValuePr_60_50_20_42
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byuk.sales@acvuk.com
Created On2026-01-13T09:00:00
Default Elevation0.000 mm
Depth673.000 mm
DescriptionStainless steel indirect cylinder for domestic hot water
DHW Continuous Flow 60 Degree Celcius1.04 CMH
Documentation Certificateswww.bimstore.co/products/ad97f4a4-11a5-4364-9031-7540d203485d/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ad97f4a4-11a5-4364-9031-7540d203485d/document/installation-guide
Documentation Literaturewww.bimstore.co/products/ad97f4a4-11a5-4364-9031-7540d203485d/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ad97f4a4-11a5-4364-9031-7540d203485d/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ad97f4a4-11a5-4364-9031-7540d203485d/document/technical-data-sheet
Domestic Cold Water Diameter38.100 mm
Domestic Hot Water Auxiliary Diameter38.100 mm
Domestic Hot Water Diameter38.100 mm
Duration UnitYears
ETIM Article ClassEC011392
Expected Life0
Export Type to IFC AsIfcTank
FeaturesWith acclaimed Tank-in-Tank technology for abundant hot water and stainless steel heat exchanger for reduced maintenance.
Finishn/a
Frequency50 Hz
GLN5400891000007
Graden/a
GreyColor RGB 155-155-155
GTIN5400891001745
Height1602.000 mm
Hydronic Return Diameter38.100 mm
Hydronic Supply Diameter38.100 mm
Ifc Export AsIfcTank
Ifc Export Typen/a
KeynoteT32
ManufacturerACV
Manufacturer Art No06618594
Manufacturer NameACV
Manufacturer URLwww.acv.com/gb/customer/dl/9107
Materialn/a
Maximum Supply Temperature Operating Temperature90 °C
Max Pressure DHW8.6 bar
Max Pressure Heating4.0 bar
ModelSmart L 320
Model NumberSmart L 320
Model ReferenceSmart L
NBS DescriptionIndirectly heated unvented hot water storage cylinders
NBS Noten/a
NBS Object NameACV - Indirectly heated unvented hot water storage cylinders
NBS Office Master Tagn/a
NBS Reference90-15-35/340
Nominal Depth673.000 mm
Nominal Height1602.000 mm
Nominal Length673.000 mm
Primary Nominal Connection Diameter38.100 mm
Primary Outer Connection Diameter48.300 mm
Production Year2026
Product LineSmart L
Rated Current Fuse6 A
RedColor RGB 255-000-000
Referenced Standardn/a
Replacement Costn/a
ShapeCylinder
Sizen/a
Spare Partsuk.sales@acvuk.com
Storage Energy Efficiency ClassC
Storage Tank Radius336.500 mm
Total Capacity318.0 L
Type CommentsSmart L 320
Type IFC Predefined TypeNOTDEFINED
Type NameSmart L 320
URLwww.acv.com/gb
Use Nominal DiameterYes
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboruk.sales@acvuk.com
Warranty Guarantor Partsuk.sales@acvuk.com
Weight141.00 kg
Width673.000 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
