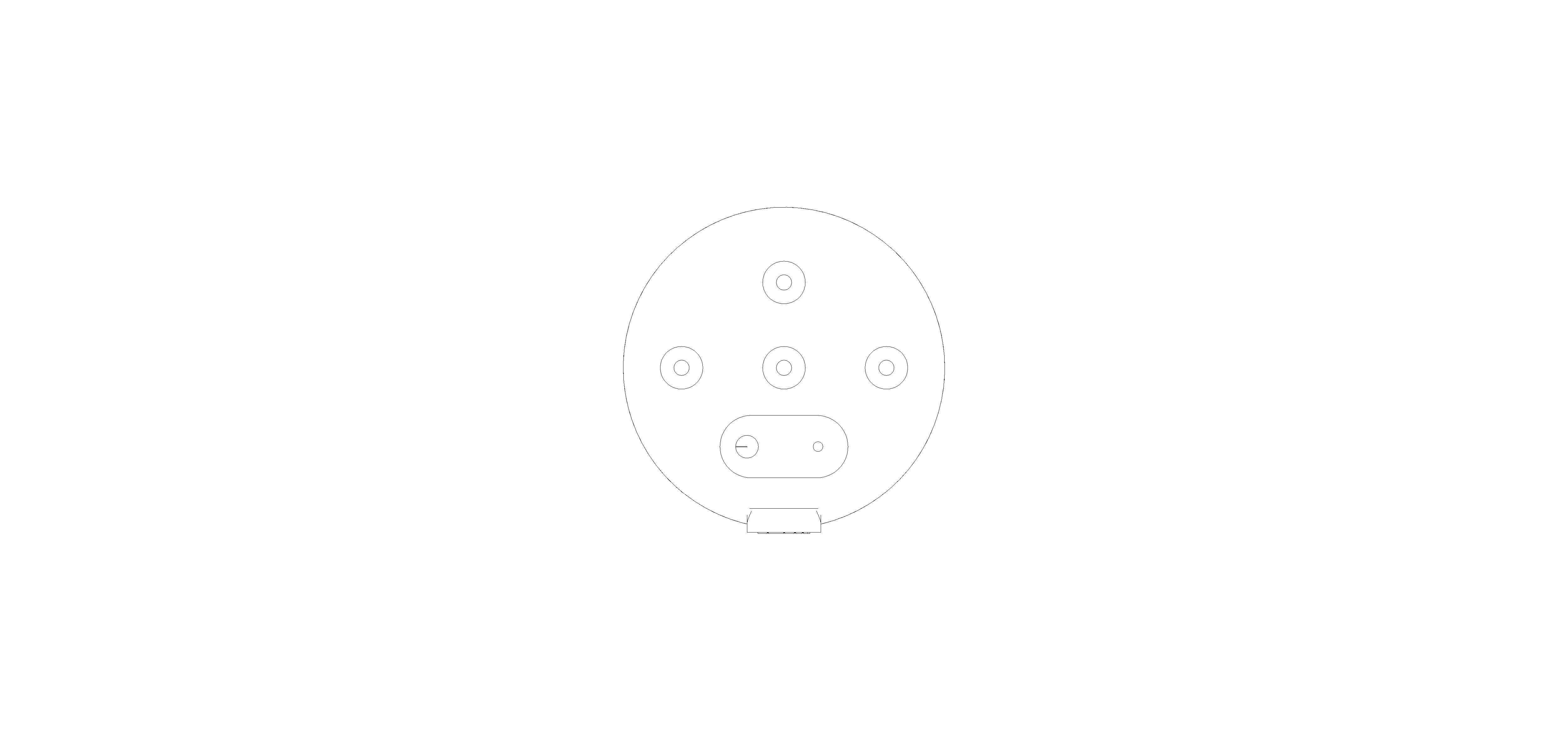

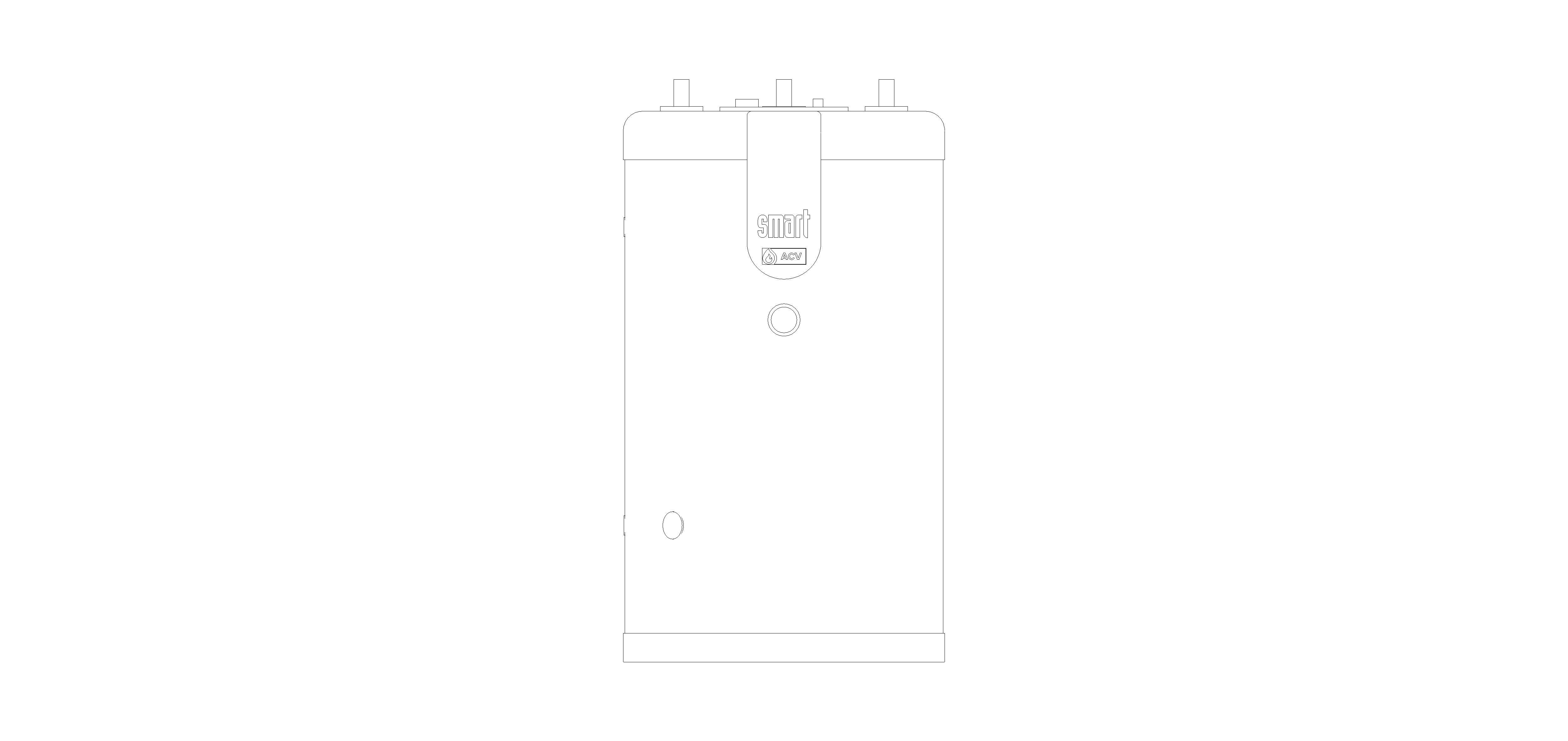

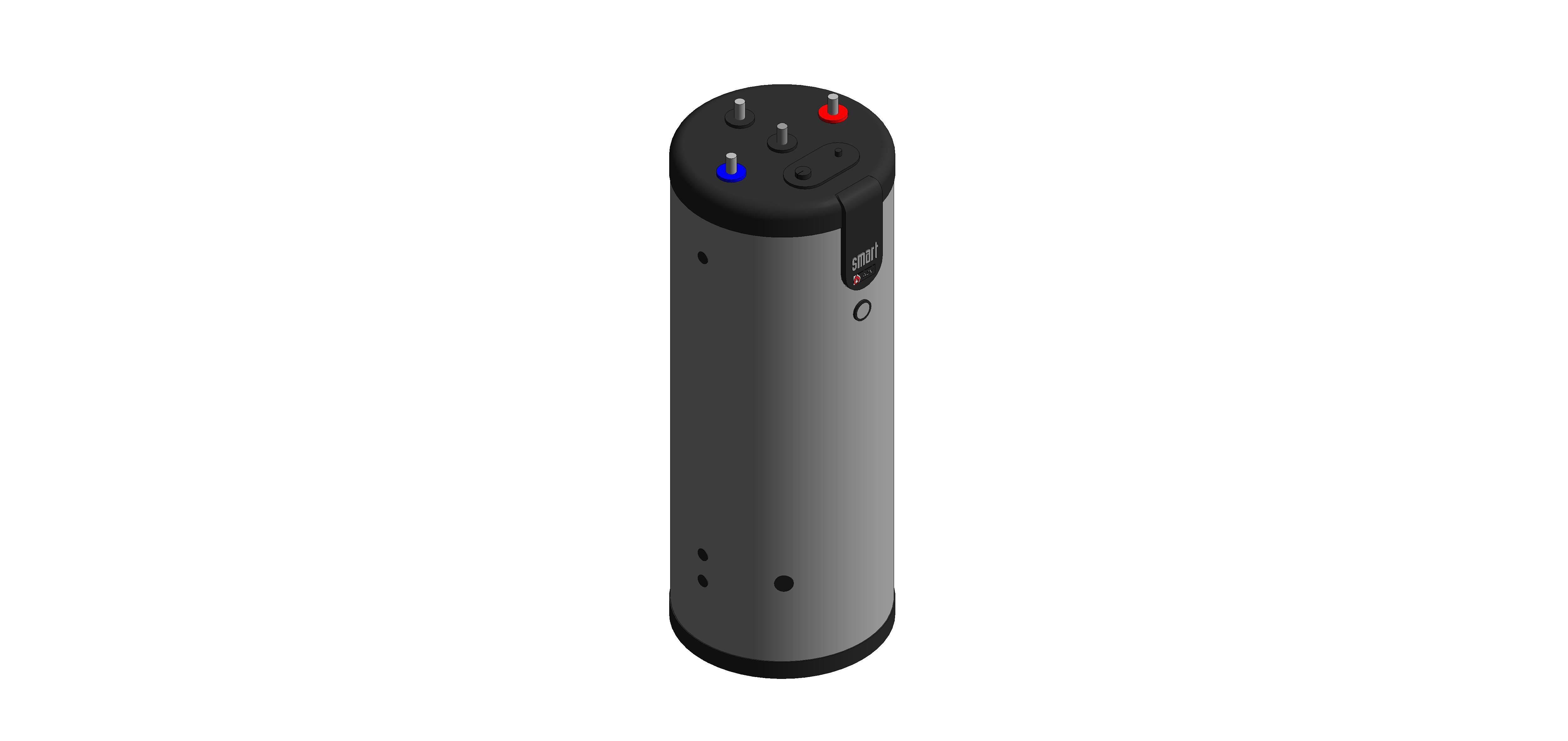

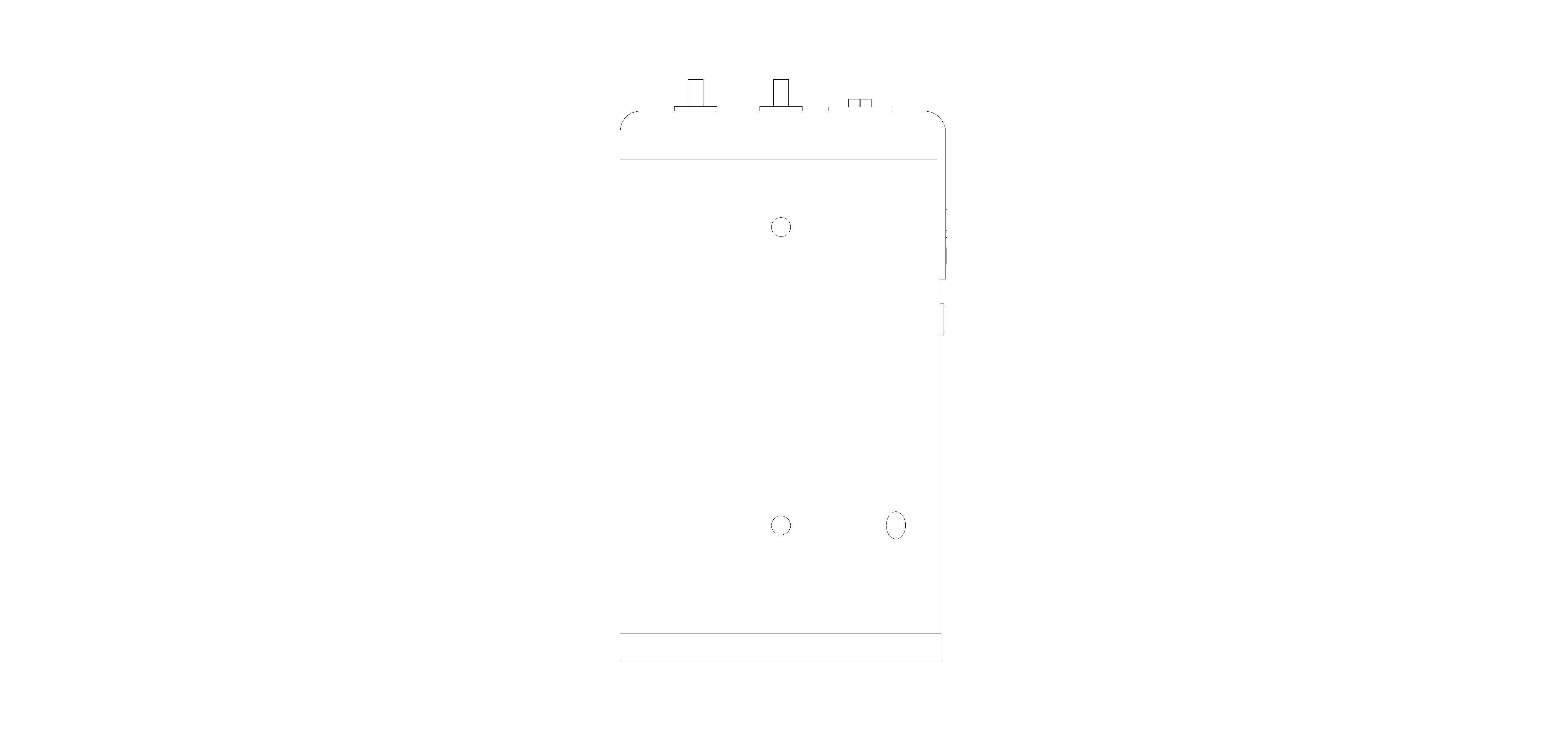

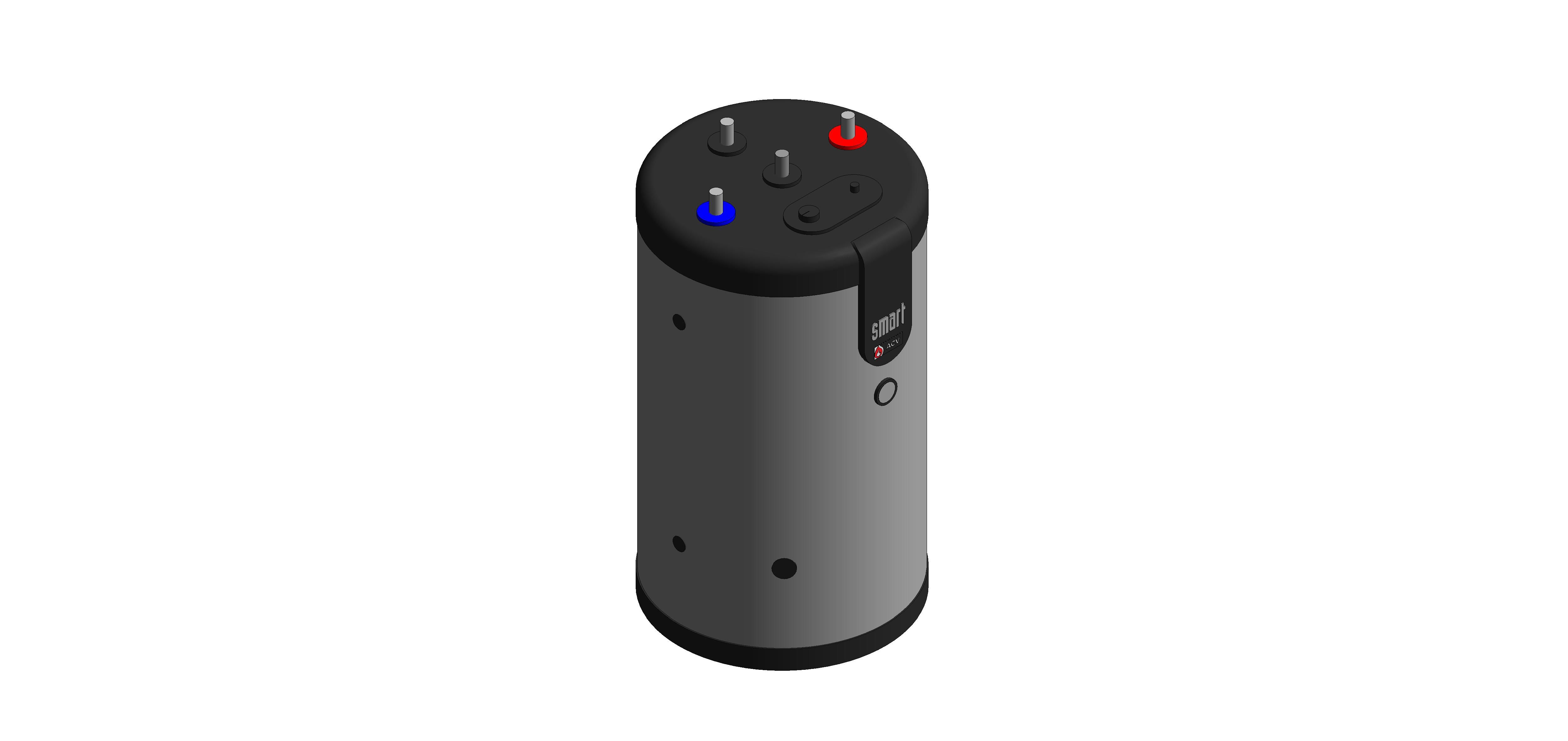

Smart E indirect stainless steel cylinder

by ACV

Download Add to collection

Description

Stainless steel indirect cylinder for domestic hot water.

130-160L
Integrated legionella protection
Fits through a standard doorway for access to plant room
Supplied with 3kW immersion heater (6kW option available)
Suitable for unvented systems – supplied as a complete package with Smartpak 1 including 3.5 bar mains unvented kit
Maximise capacity of the cylinder with DHW mixing valve and 2 port valve supplied as standard

Click here to visit ACV for more information.

Object Data

1 Revision

Last Updated

14/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

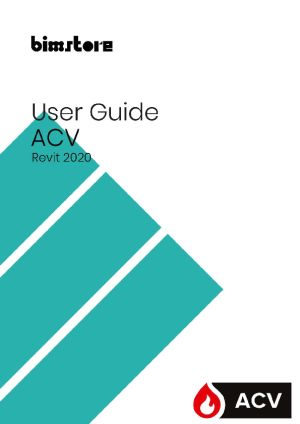

Object User Guide

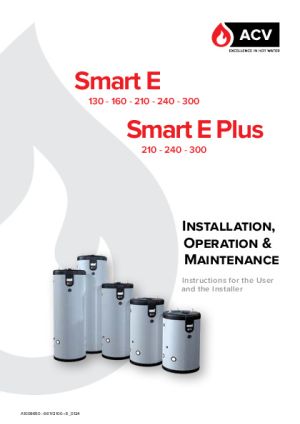

Installation Guide

Product Data Sheet

Object metadata

_Authoruk.sales@acvuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/0ada37e0-5db7-4b01-be06-09b8242644f3/document/object-user-guide
Accessibility Performancen/a
Article DescriptionFast recovery floor standing Tank-in-Tank Cylinder. Connection for an optional electrical resistance in the primary circuit
Article TypeSmart E 130
Assembly CodeD3020100
Asset TypeFixed
B765.000 mm
BIM Object NameACV_StorageTank_SmartE_(130-160)
BlackColor RGB 040-040-040
BlueColor RGB 000-000-255
C240.000 mm
Classification NameUniclass 2015
Classification ValuePr_60_50_20_42
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byuk.sales@acvuk.com
Created On2026-01-13T09:00:00
D240.000 mm
Default Elevation0.000 mm
Depth565.000 mm
DescriptionFast recovery floor standing Tank-in-Tank Cylinder. Connection for an optional electrical resistance in the primary circuit
DHW Continuous Flow 60 Degree Celcius0.3 CMH
Documentation Certificateswww.bimstore.co/products/0ada37e0-5db7-4b01-be06-09b8242644f3/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/0ada37e0-5db7-4b01-be06-09b8242644f3/document/installation-guide
Documentation Literaturewww.bimstore.co/products/0ada37e0-5db7-4b01-be06-09b8242644f3/document/product-literature
Documentation Maintenancewww.bimstore.co/products/0ada37e0-5db7-4b01-be06-09b8242644f3/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/0ada37e0-5db7-4b01-be06-09b8242644f3/document/technical-data-sheet
Domestic Cold Water Diameter19.050 mm
Domestic Hot Water Auxiliary Diameter19.050 mm
Domestic Hot Water Diameter19.050 mm
Duration UnitYears
ETIM Article ClassEC011392
Expected Life0
Export Type to IFC AsIfcTank
FeaturesWith acclaimed Tank-in-Tank technology for abundant hot water and stainless steel heat exchanger for reduced maintenance.
Finishn/a
Frequency50 Hz
GLN5400891000007
Graden/a
GreyColor RGB 155-155-155
GTIN5400891001776
Height1024.000 mm
Hydronic Return Diameter25.400 mm
Hydronic Supply Diameter25.400 mm
Ifc Export AsIfcTank
Ifc Export Typen/a
KeynoteT32
ManufacturerACV
Manufacturer Art No06618801
Manufacturer NameACV
Manufacturer URLwww.acv.com/international/customer/dl/442
Materialn/a
Maximum Supply Temperature Operating Temperature90 °C
Max Pressure DHW8.6 bar
Max Pressure Heating3.0 bar
ModelSmart E 130
Model NumberSmart E 130
Model ReferenceSmart E
NBS DescriptionIndirectly heated unvented hot water storage cylinders
NBS Noten/a
NBS Object NameACV - Indirectly heated unvented hot water storage cylinders
NBS Office Master Tagn/a
NBS Reference90-15-35/340
Nominal Depth565.000 mm
Nominal Height1024.000 mm
Nominal Length565.000 mm
Production Year2026
Product LineSmart E
Rated Current Fuse6 A
RedColor RGB 255-000-000
Referenced Standardn/a
Replacement Costn/a
ShapeCylinder
Sizen/a
Spare Partsuk.sales@acvuk.com
Storage Energy Efficiency ClassB
Total Capacity130.0 L
Type CommentsSmart E 130
Type IFC Predefined TypeNOTDEFINED
Type NameSmart E 130
URLwww.acv.com/gb
Use Nominal DiameterYes
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboruk.sales@acvuk.com
Warranty Guarantor Partsuk.sales@acvuk.com
Weight45.00 kg
Width565.000 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
