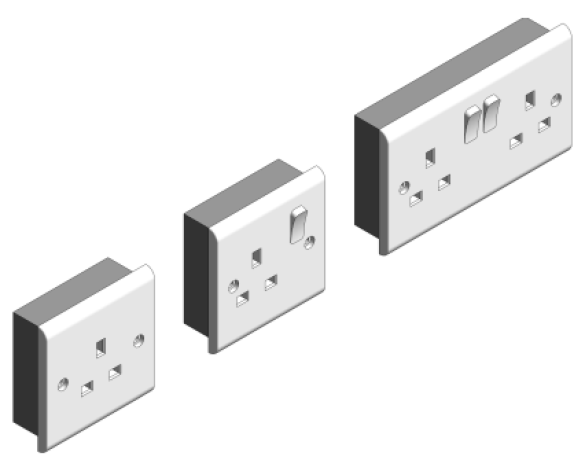

Slimline - Socket Outlets

Object metadata

• _AuthorIan Holmes
• _Authorized ByKris Atkinson
• _Bim Spec Guid0
• _BS Bible Version14
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Assembly CodeD5020120
• Asset TypeFixed
• Back Box Depth25 mm
• BIM Object NameElectricalFixtures_DetaElectrical_Slimline_SocketOutlets
• Classification NameUniclass2015
• Classification ValuePr_75_51_17_50
• Code Performancen/a
• ColorWhite
• Constituentsn/a
• Created Bysales@detaelectrical.co.uk
• Created On2017-04-27T00:00:00
• Default Elevation1219 mm

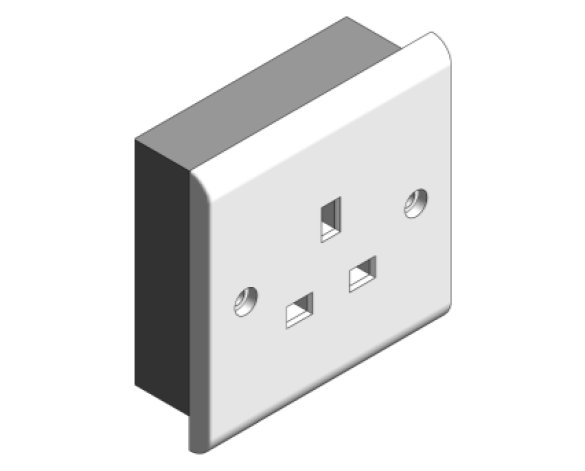

• Description1 gang 13A unswitched socket
• Documentation Certificatesn/a
• Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2157
• Documentation Literaturespecifi.bimstore.co.uk/document/share/2157
• Documentation Maintenancen/a
• Documentation Technicalspecifi.bimstore.co.uk/document/share/2157
• Double SocketNo
• Double Socket Offset0 mm
• Duration UnitYears
• Expected Life0
• FeaturesTop facing Terminals, Clearly identified -printed white, Colour coded terminals, 2 earth terminals(on 2 gang), Recessed Earth bar, Captive and backed out terminals,only one screwdriver 4mm needed and Terminals have large lead-ins.
• Finishn/a
• Graden/a
• Height86 mm
• Ifc Export AsIfcJunctionBoxTypeEnum.POWER
• Ifc Export TypeIfcJunctionBox
• KeynoteV
• ManufacturerDeta Electrical
• Manufacturer NameDeta Electrical
• MaterialUrea Formaldehyde
• ModelSlimline - Socket Outlets
• Model Numbers1206
• Model ReferenceSlimline - Socket Outlets
• NBS DescriptionManual control switches
• NBS Object NameDeta Electrical - Manual control switches
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth7 mm
• Nominal Height86 mm
• Nominal Length86 mm
• Production Year2017
• Referenced StandardBS1363:pt2
• Replacement Costn/a
• s 1206Yes
• s 1207No
• ShapeSquare
• Single SocketYes
• Single Switch VisNo
• Size86mm x 86mm
• Spare Partsn/a
• Switch MaterialDetaElectrical_White
• Switch Offset20 mm
• Symbol_TypeSocketOutlet_Symbol : 1 Gang Unswitched
• Thickness7 mm
• Type Comments13A Socket Outlets - s1206
• Type Name13A Socket Outlets - s1206
• Unit MaterialDetaElectrical_White
• URLwww.detaelectrical.co.uk/
• Void Offset Length0 mm
• Warranty DescriptionProducts in the Slimline range are guaranteed for 25 years (2 years for electronic products).
• Warranty Duration Laborn/a
• Warranty Duration Parts25
• Warranty Duration UnitYears
• Warranty Guarantor Laborsales@detaelectrical.co.uk
• Warranty Guarantor Partssales@detaelectrical.co.uk
• Width86 mm
