Slimline offers a comprehensive range of accessories including sockets with outboard rocker switches, wide rocker switches, LED dimmers, USB charging sockets and data modules to meet the demands of all modern day domestic and commercial applications.

Lockable fuse carrier for safety isolation, Grey font engraving, Clear terminal markings, Colour coded terminals, Neon versions available, Neon leads enclosed, 2 earth terminals, front & bottom Flex outlet option available, Captive and backed out terminals, and Terminals have large lead-ins.

Products in the Slimline range are guaranteed for 25 years (2 years for electronic products).

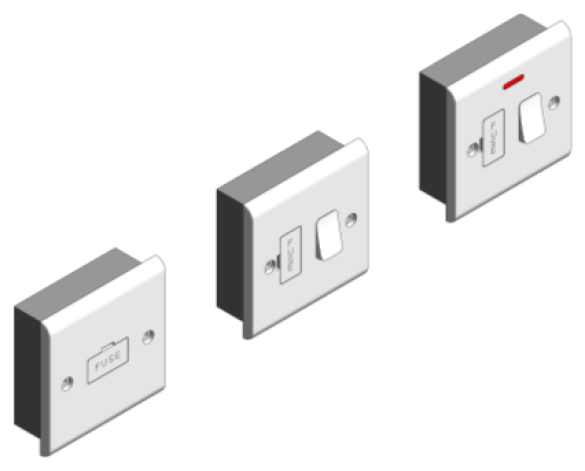

This download is for the Slimline - Connection Units Range and includes the following types;

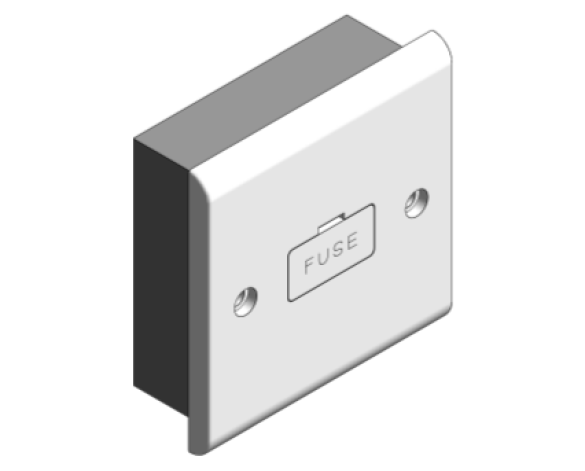

  • S1360 - 13A Unswitched spur
  • S1370 - 13A Switched spur
  • S1371 - 13A Switched spur with neon

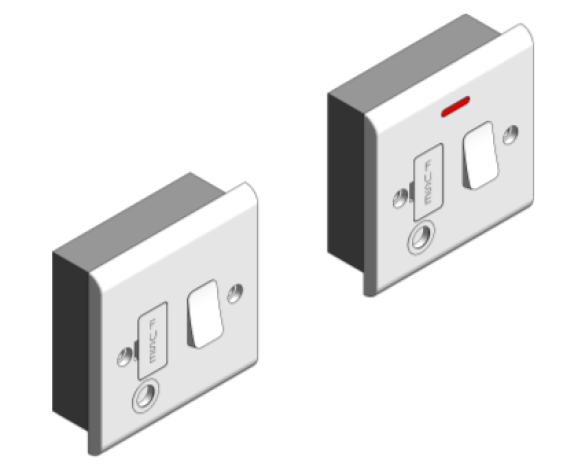

  • S1372 - 13A Switched Spur with Flex Outlet
  • S1373 - 13A Switched Spur with Neon & Flex Outlet
