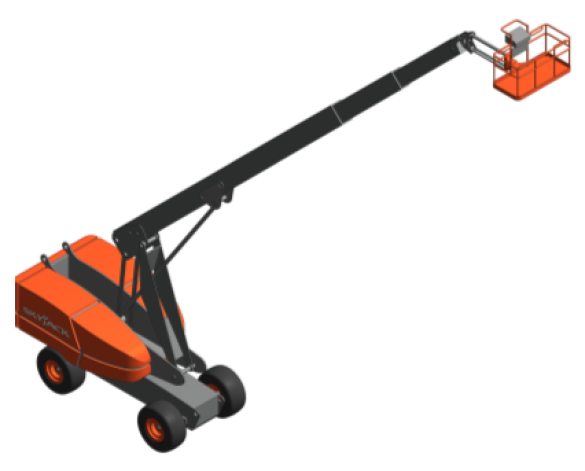

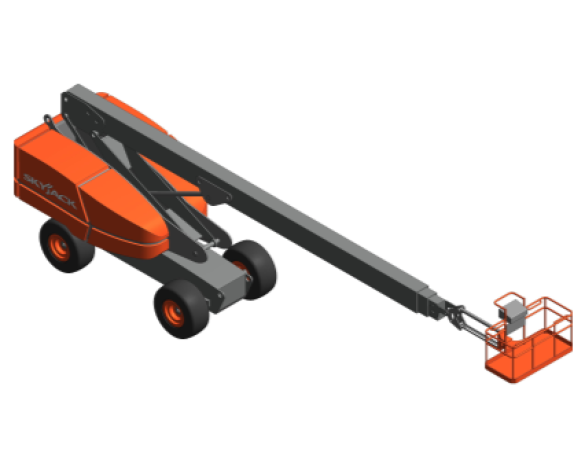

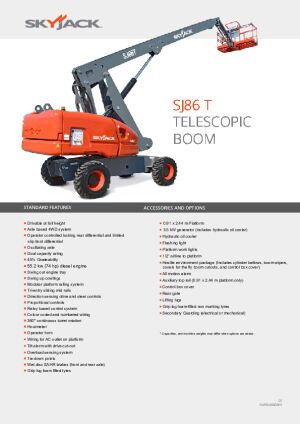

SKYJACK - Telescopic Boom - SJ86T

by Skyjack

Download Add to collection

Description

STANDARD FEATURES

Drivable at full height - Axle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Dual capacity rating - 45% Gradeability - 55.2 kw (74 hp) diesel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid rails - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Colour coded and numbered wiring - 360° continuous turret rotation - Hourmeter - Operator horn - Wiring for AC outlet on platform - Tilt alarm with drive cut-out - Overload sensing system - Tie down points - Wet disc SAHR brakes (front and rear axle) - Grip lug foam filled tyres

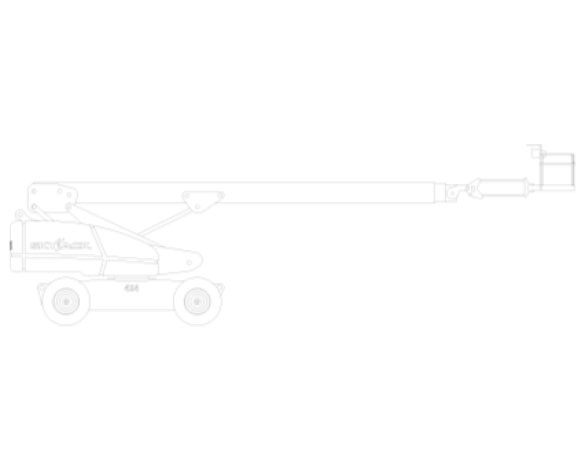

This download includes the SKYJACK Telescopic Boom - SJ86T BIM component.

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

14/05/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And Options0.91 x 2.44 m Platform. 3.5 kW generator (includes hydraulic oil cooler). Hydraulic oil cooler. Flashing light. Platform work lights. 1/2” airline to platform. Hostile environment package (Includes cylinder bellows, boom wipers, covers for the fly boom cutouts, and control box cover). All motion alarm. Auxiliary top rail (0.91 x 2.44 m platform only). Control box cover. Rear gate. Lifting lugs. Grip lug foam-filled non marking tyres. Secondary Guarding (electrical or mechanical).
Assembly CodeE1030900
Asset TypeFixed
Axle Oscillation10.16 cm
BIM Object NameSKYJACK_Site_AccessPlatform_TelescopicBoom_SJ86T
Boom Angle(Max)77.50 °
Boom Angle(Min)12.50 °
Capacity227 kg / 341 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
DescriptionAxle based 4WD system. Operator controlled locking rear differential and limited slip front differential. Oscillating axle. Drivable at full height. Dual capacity rating. 45% Gradeability. Diesel engine. Swing out engine tray. Swing up cowlings. Modular platform railing system. Tri-entry sliding mid rails. 110V AC outlet on platform with GFI. Direction sensing drive and steer controls. Proportional controls. Relay based control system. Color coded and numbered wiring. 360° continuous turret rotation. Hourmeter. Operator horn. All motion alarm. Tie down points. Wet disc SAHR brakes (front and rear axle). 18 x 625 grip lug foam filled tires. Telematics ready.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2413
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2413
Duration UnitYears
Engine55.2 (74 HP)
Expected Life0
FeaturesAxle based 4WD system. Operator controlled locking rear differential and limited slip front differential. Oscillating axle. Drivable at full height. Dual capacity rating. 45% Gradeability. Diesel engine. Swing out engine tray. Swing up cowlings. Modular platform railing system. Tri-entry sliding mid rails. 110V AC outlet on platform with GFI. Direction sensing drive and steer controls. Proportional controls. Relay based control system. Color coded and numbered wiring. 360° continuous turret rotation. Hourmeter. Operator horn. All motion alarm. Tie down points. Wet disc SAHR brakes (front and rear axle). 18 x 625 grip lug foam filled tires. Telematics ready.
FinishOrange and Grey Paint
Fuel Tank Capacity170 L
Graden/a
Gradeability45%
Ground Clearance410 mm
Horizontal Reach23420 mm
Hydraulic Reservoir227 L
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius4.06 m
Jib Angle(Max)65.00 °
Jib Angle(Min)60.00 °
Jib Length1.68 m
Jib Range+65° / -60°
KeynoteX
Local Floor Load With Rated Loadn/a
ManufacturerSkyjack
Manufacturer NameSkyjack
Materialn/a
Maximum Number Of Persons2/3
ModelSkyjack - Telescopic Boom
Model NumberSJ86T
Model ReferenceSkyjack - Telescopic Boom
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius7.11 m
Overall Floor Load With Rated Loadn/a
Overall Height3000 mm
Overall Length12950 mm
Overall Width2490 mm
Platform Height26210 mm
Platform Rotation170°
Platform Rotation Angle(Max)85.00 °
Platform Rotation Angle(Min)85.00 °
Platform Size0.91 x 1.83 m
Product CodeSJ86T
Production Year2018
Product Page Linkskyjack.com/product/sj8286-t
Referenced Standardn/a
Replacement Costn/a
Rotation360° Continuous
Shapen/a
Sizen/a
Spare Partsn/a
Standard FeaturesDrivable at full height. Axle based 4WD system. Operator controlled locking rear differential and limited slip front differential. Oscillating axle. Dual capacity rating. 45% Gradeability. 55.2 kw (74 hp) diesel engine. Swing out engine tray. Swing up cowlings. Modular platform railing system. Tri-entry sliding mid rails. Direction sensing drive and steer controls. Proportional controls. Relay based control system. Colour coded and numbered wiring. 360° continuous turret rotation. Hourmeter. Operator horn. Wiring for AC outlet on platform. Tilt alarm with drive cut-out. Overload sensing system. Tie down points. Wet disc SAHR brakes (front and rear axle). Grip lug foam filled tyres.
Tailswing1420 mm
Telescopic Extension(Max)12800 mm
Telescopic Extension(Min)0 mm
Tire Size18-625
Tire TypeFoam Filled
Type CommentsSJ86T
Type NameSkyjack - Telescopic Boom
URLskyjack.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight17,556 kg
Wheelbase3350 mm
Working Height28210 mm
