The SJ63 AJ features Include;

Axle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 360° continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid-rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (front and rear axle) - 10.5 x 17.5 grip lug air-filled tires - Telematics ready

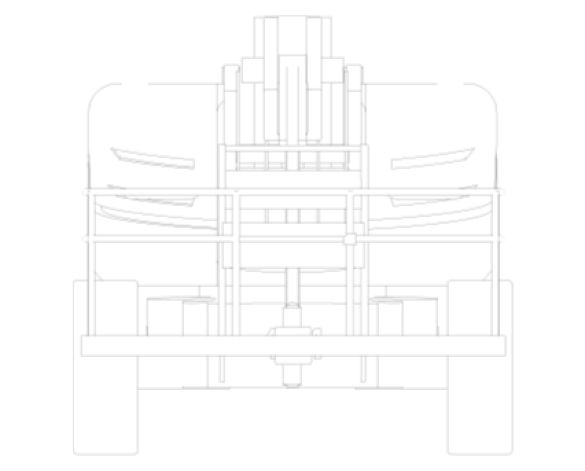

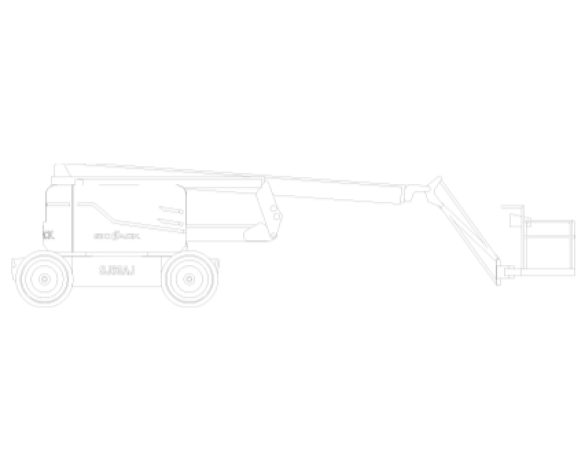

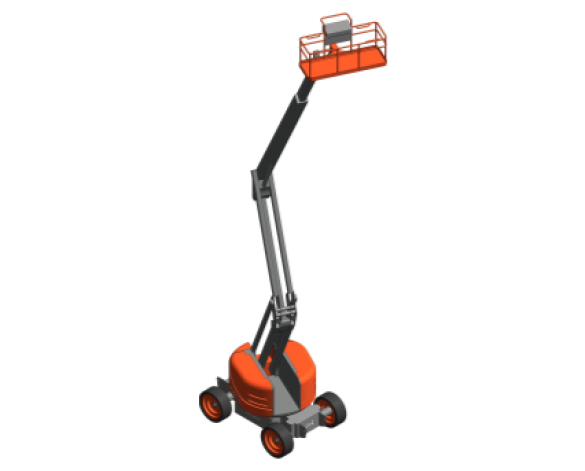

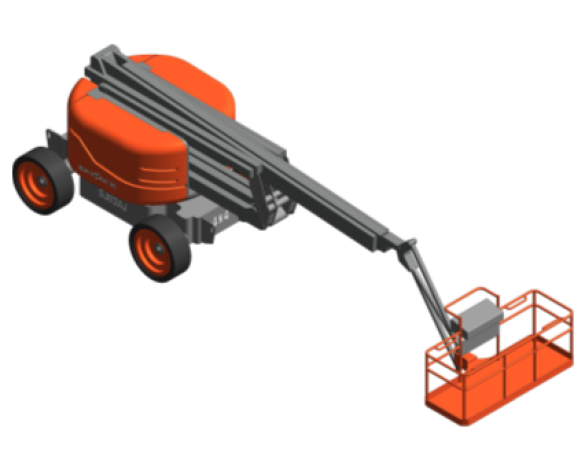

This download includes the SKYJACK Articulating Boom - SJ63 AJ BIM components from SKYJACK.
