SKYJACK - Articulating Boom - SJ46AJ

by Skyjack

Download Add to collection

Description

The SJ46 AJ features Include;

Axle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 355° Non-continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Dual-entry sliding mid rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (rear axle) - 12 x 16.5 grip lug air-filled tires - Telematics ready

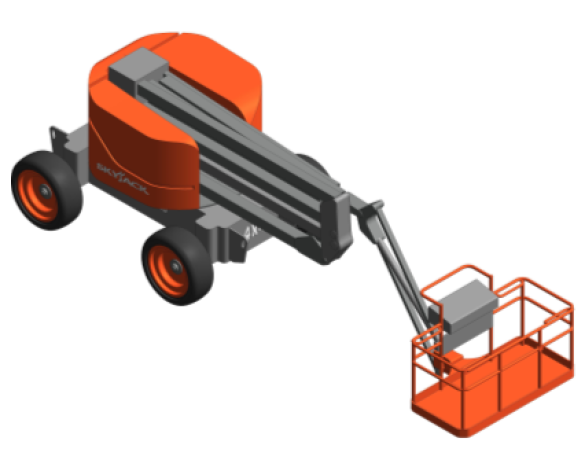

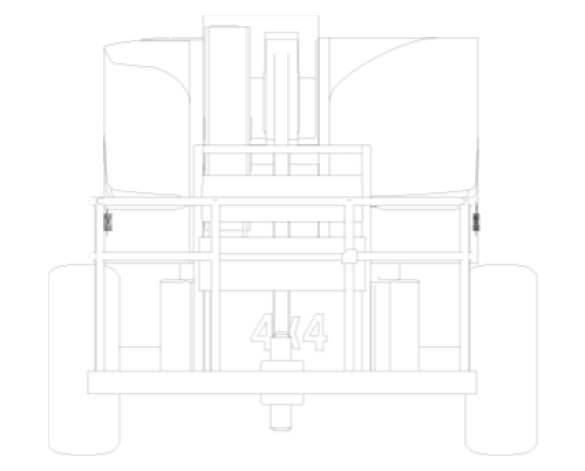

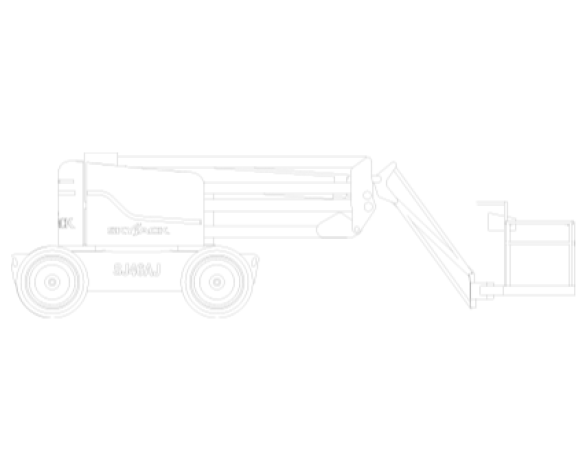

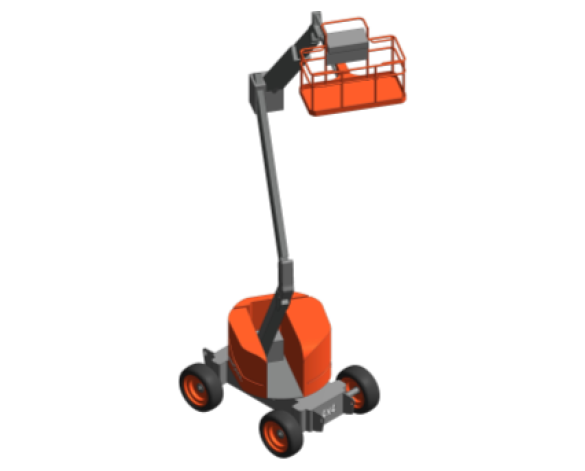

This download includes the SKYJACK Articulating Boom - SJ46 AJ BIM components from SKYJACK.

Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform

Object Data

1 Revision

Last Updated

22/06/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorConnor Laing
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Accessories And Options30 x 60” Platform - 3.5 kW generator (Includes hydraulic oil cooler) - Welder ready package (Includes 12 kW generator, hydraulic oil cooler, 3-phase power connection in platform, and welder mount) - Welder package (Includes 12 kW generator, hydraulic oil cooler, 3-phase power connection in platform, welder mount, and Lincoln V275-S welder) - Cold weather start kit (Includes cold start engine oil, battery blanket, and hydraulic tank heater) - Arctic weather package (Includes arctic engine oil, battery blanket, hydraulic tank heater, block heater, arctic hydraulic oil, arctic platform rotator and arctic gear oil in the axles and swing drive. Glow plugs, arctic hydraulic hoses (all), and oversized foot switch cover are also included (standard equipment). - Hydraulic oil cooler - Side gate - Flashing light - 1/2” airline to platform - Positive air shut-off valve - Non destructive testing - Glazier kit - Control box cover - Auxiliary top rail (30 x 72” platform only) - Warranty Options (3 year or 5 year plans available)
Assembly CodeE1030900
Asset TypeFixed
Axle Oscillation12.70 cm
BIM Object NameSKYJACK_Site_AccessPlatform_ArticulatingBoom_SJ46
Capacity227 kg
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Byinfo@skyjackeurope.co.uk
Created On2018-03-01T09:00:00
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2410
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Engine48 HP
Expected Life0
FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 355° Non-continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Dual-entry sliding mid rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (rear axle) - 12 x 16.5 grip lug air-filled tires - Telematics ready
FinishOrange and Grey Paint
Fuel Tank Capacity64 L
Graden/a
Gradeability45 %
Ground Clearance390 mm
Horizontal Reach7540 mm
Hydraulic Reservoir91 L
Ifc Export AsIfcTransportElementType
Ifc Export TypeIfcTransportElement
Inside Turning Radius2490
Jib Length1520 mm
Jib Range+70 / -75 Degrees
KeynoteX
Local Floor Load With Rated Load793 kPa
ManufacturerSkyjack
Manufacturer NameSkyjack
MaterialMetal
Maximum Number Of Persons2
ModelSkyjack - Articulating Boom
Model NumberSJ46 AJ
Model ReferenceSkyjack - Vertical lifting platforms
NBS DescriptionVertical lifting platforms
NBS Object NameSkyjack - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius4520 mm
Overall Floor Load With Rated Load9.58 kPa
Overall Height2060 mm
Overall Length6530 mm
Overall Width2290 mm
Platform Height14100 mm
Platform Rotation170 Degrees
Platform Size760 x 1830 mm
Product CodeSJ46 AJ
Production Year2018
Product Page Linkskyjack.com/product/sj46-aj
Referenced Standardn/a
Replacement Costn/a
Rotation355 Degrees
Shapen/a
Size6530mm (L) x 2290mm (W) x 2060mm (H)
Spare Partsn/a
Standard FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 355° Non-continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Dual-entry sliding mid rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (rear axle) - 12 x 16.5 grip lug air-filled tires - Telematics ready
Tailswing0 mm
Tire Size12 x 16.5
Tire TypeAir Filled
Type CommentsSJ46 AJ
Type NameSkyjack - Articulating Boom
Up And Over Height7450 mm
URLskyjack.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@skyjackeurope.co.uk
Warranty Guarantor Partsinfo@skyjackeurope.co.uk
Weight6,033KG
Wheelbase2030 mm
Working Height15930 mm

Bimstore on 17 May 2026

Be the first to write a comment...

SKYJACK - Articulating Boom - SJ46AJ

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

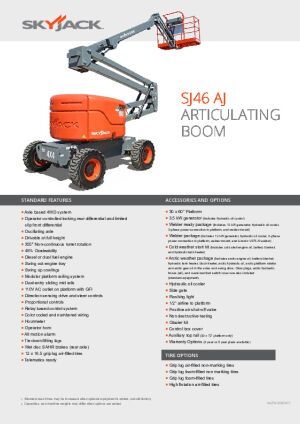

Accompanying literature
