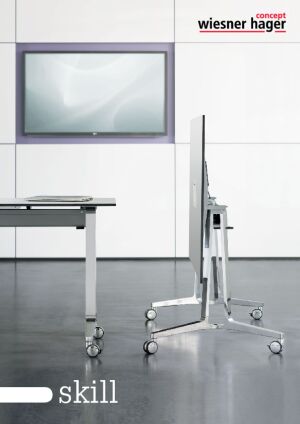

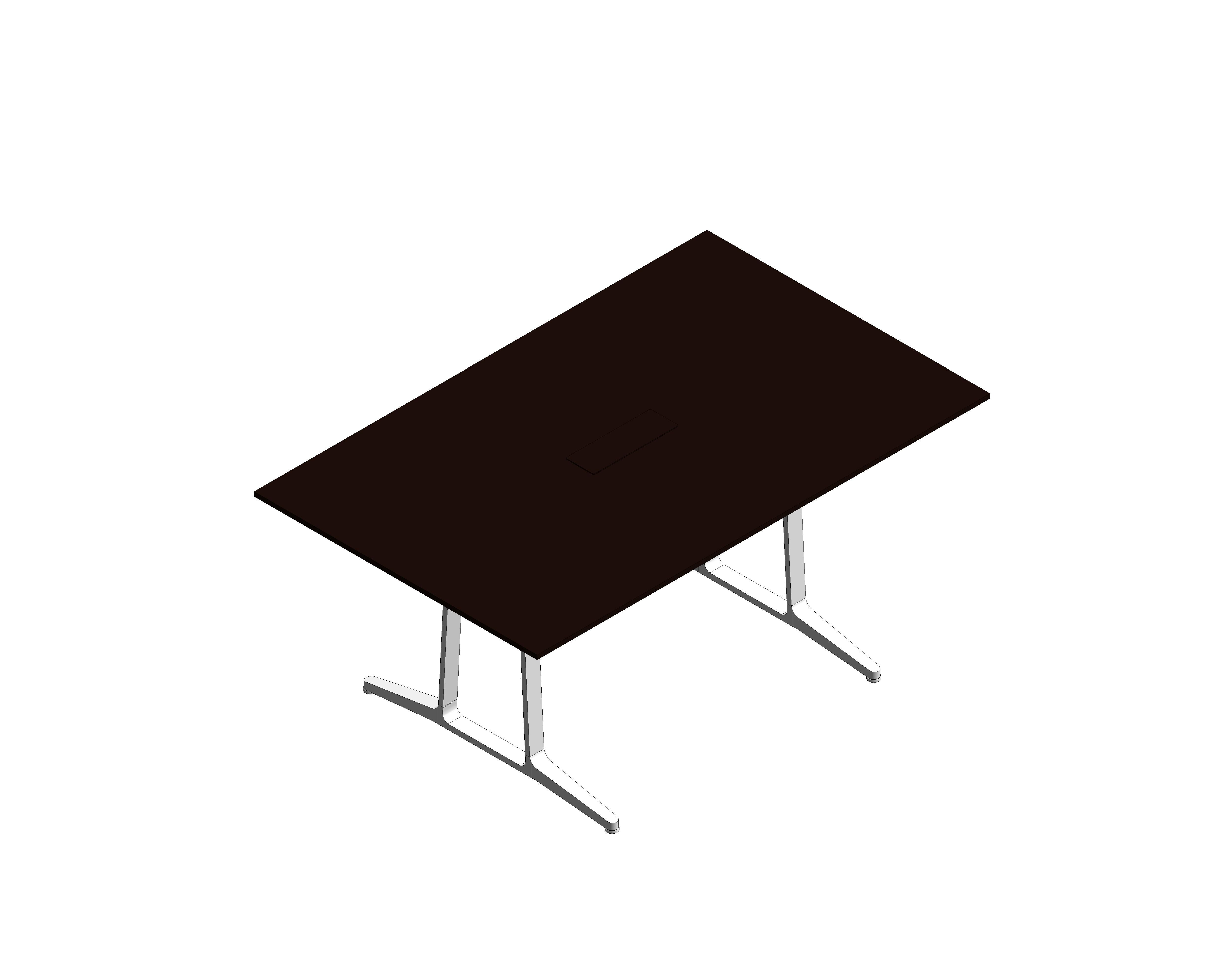

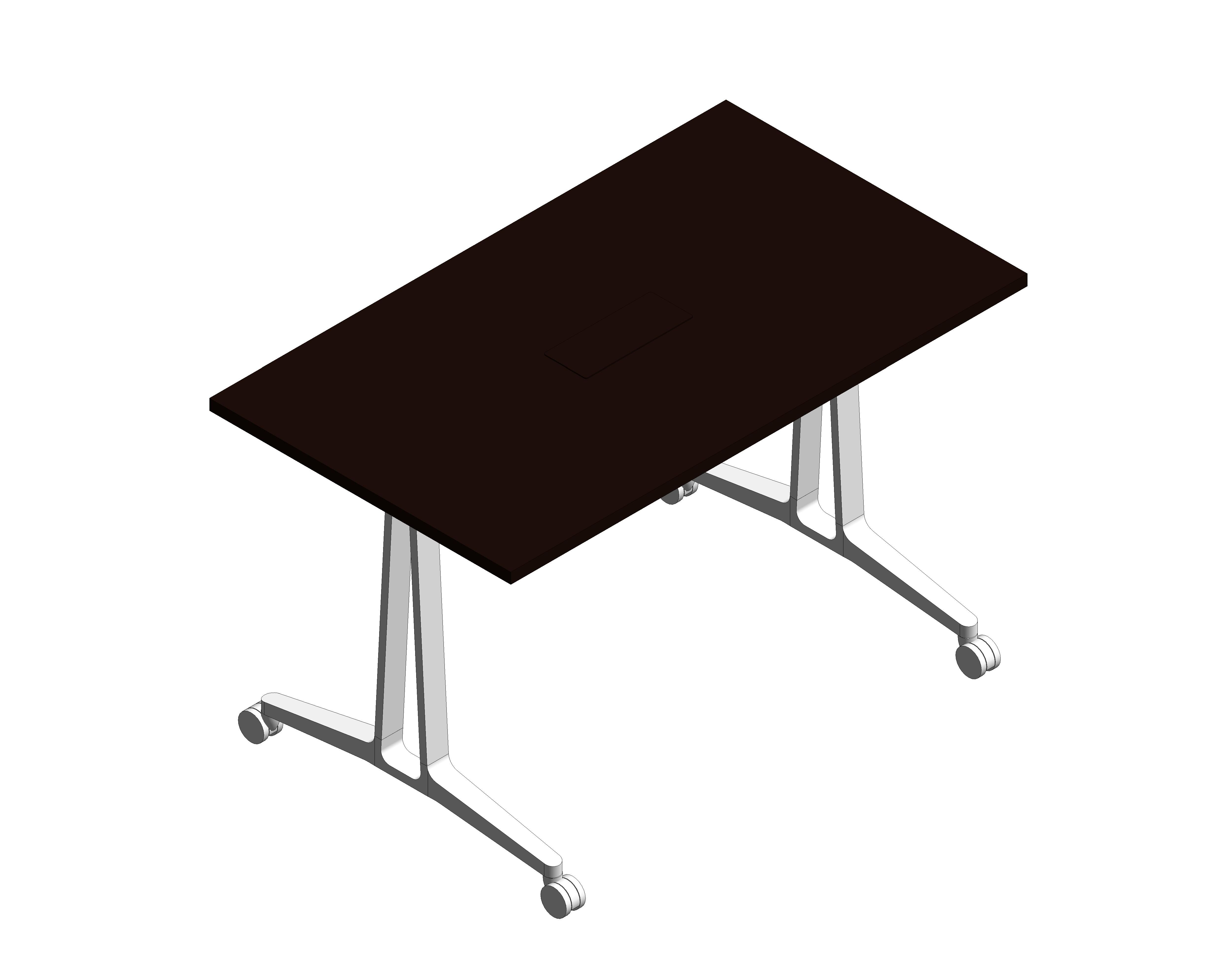

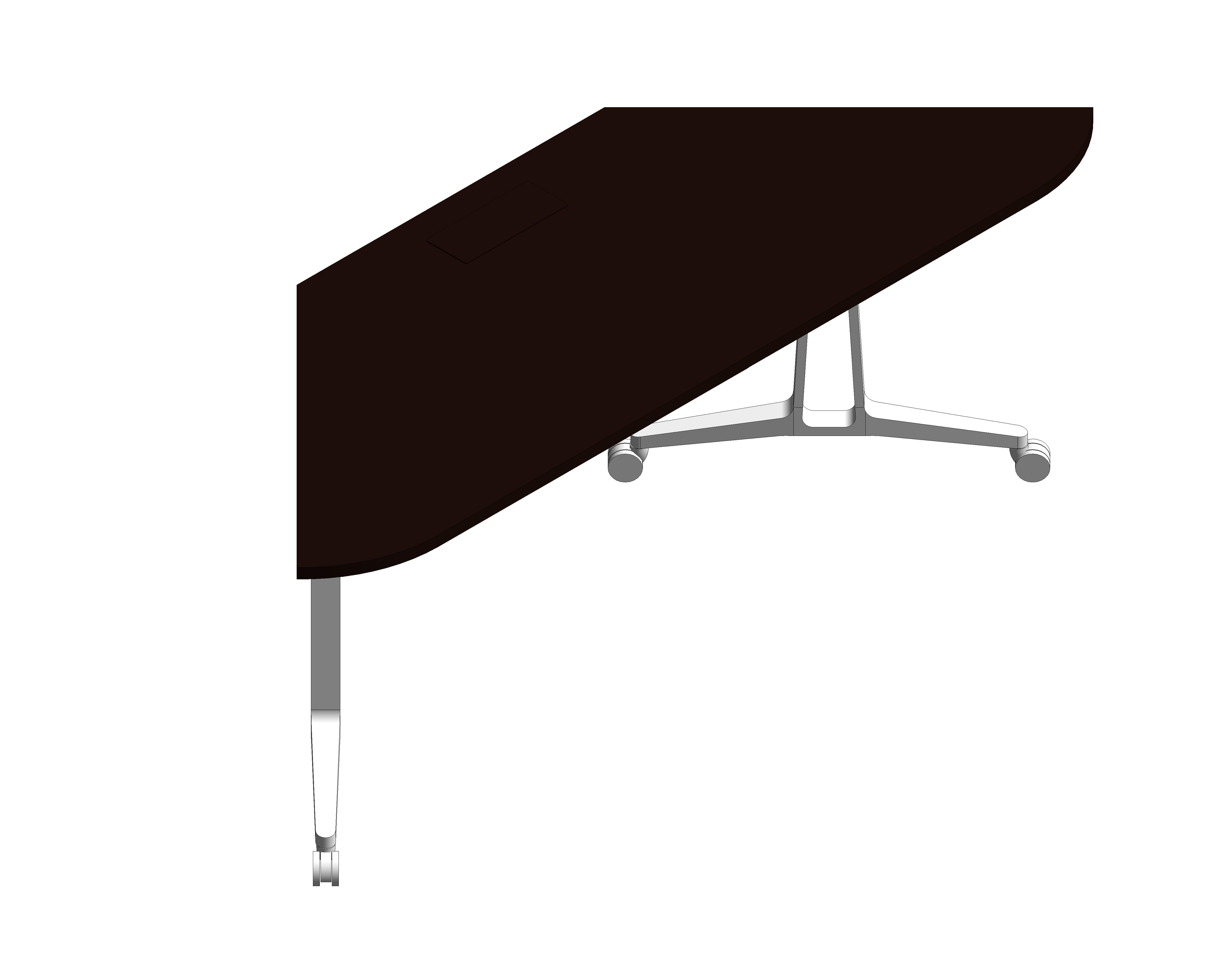

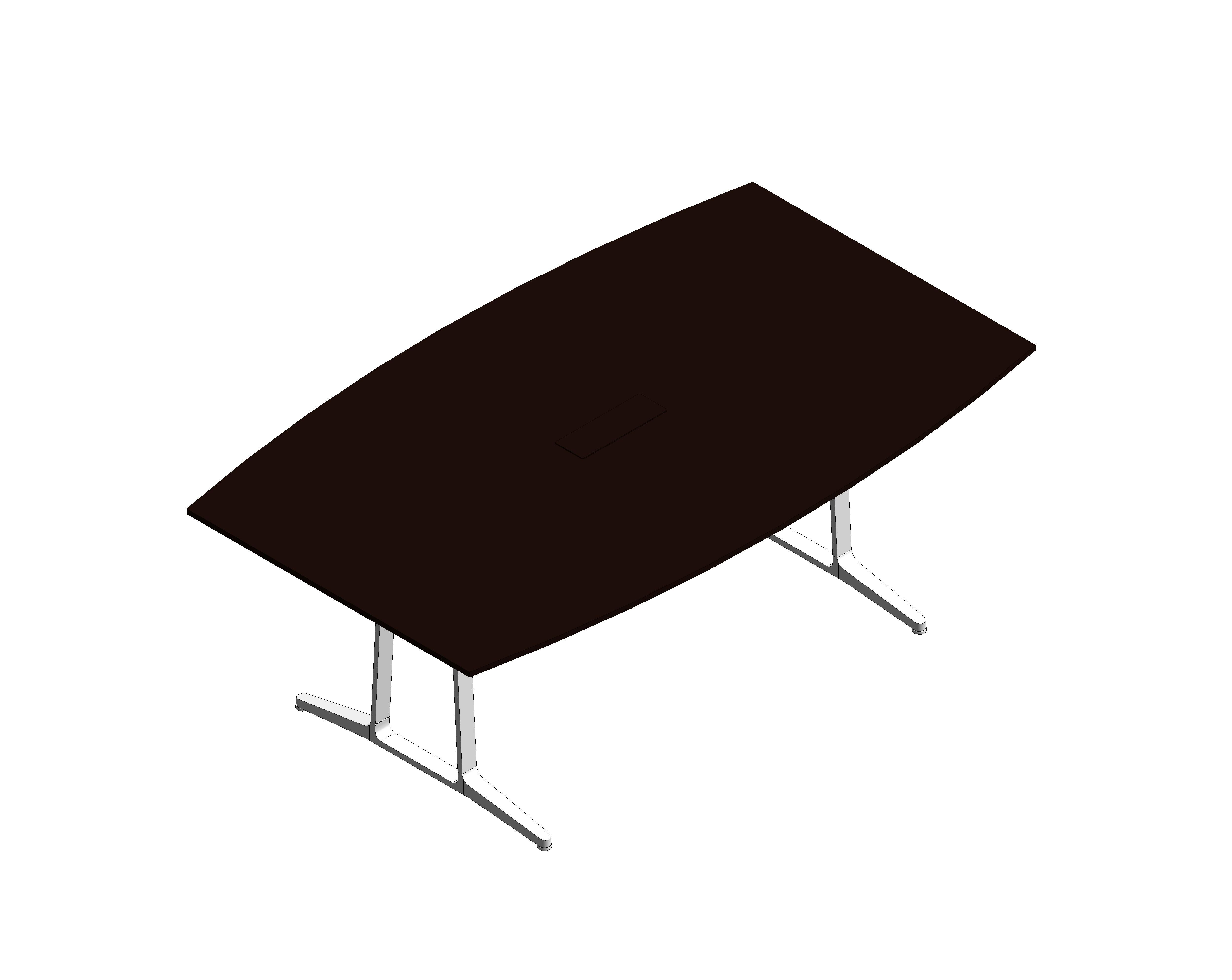

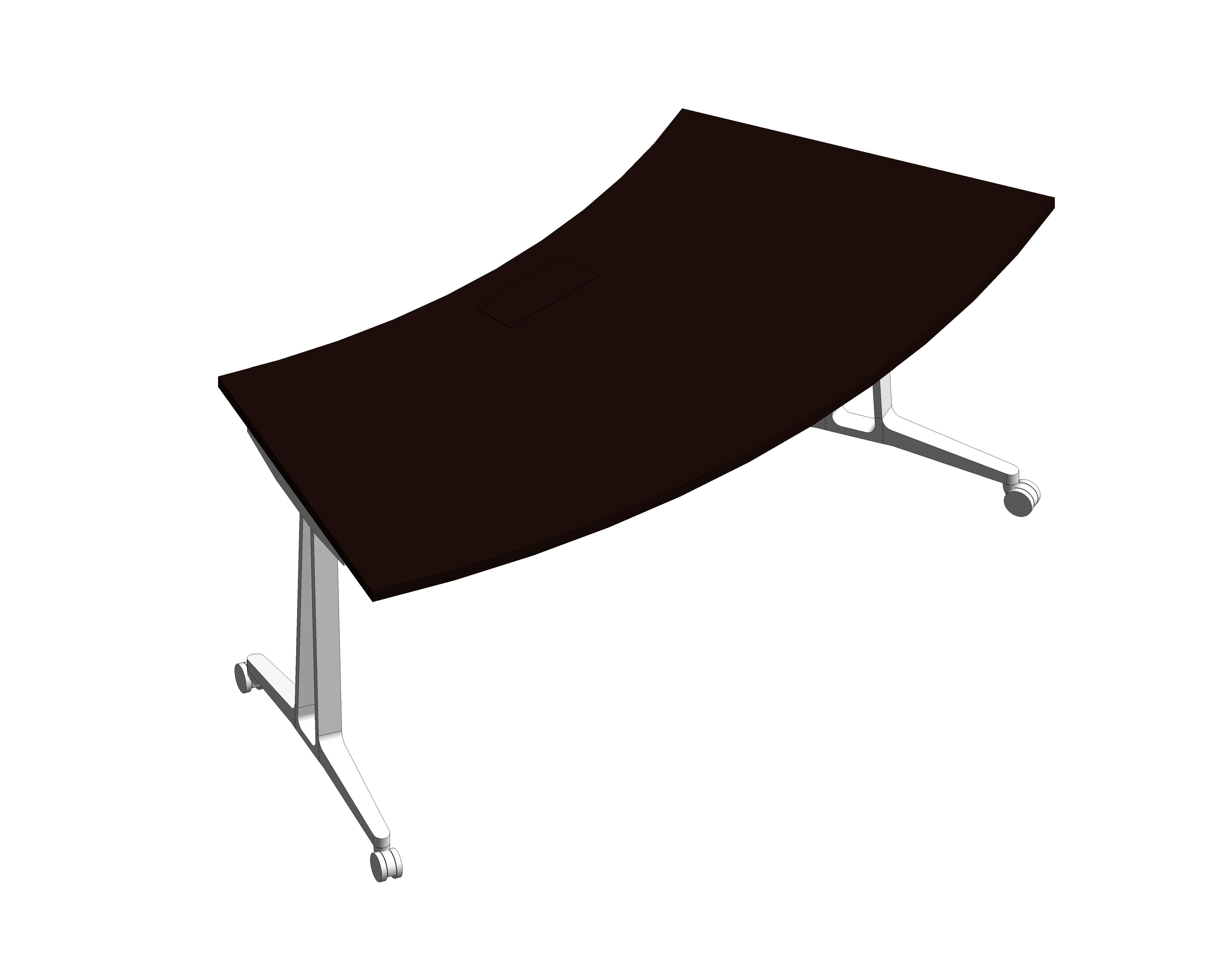

The skill mobile fliptop table system can be effortlessly adapted to rapidly changing communication scenarios. A wide variety of table formats ensures there is always the perfect solution for a broad range of applications – from an “O”-shape for conferences, to a “U”-shape for seminars and trainings and a “block” for workshops. In addition to numerous different fliptop table top formats, there are three elegant frame versions available with V, T and C legs.

Accessibility Performancen/a
Assembly CodeE2020200
Asset TypeMovable
AuthorWiesner Hager Ltd
BIM Object NameWiesnerHager_Furniture_Skill_Conference_Round
CategoryPr_40_50_21_15: Conference tables
Code Performancen/a
ColorDefined by material specified
Constituentsn/a
Contact Email Addresslondon@wiesner-hager.com
Contact Fax Numbern/a
Contact Telephone Number+44 (20) 7490 3627

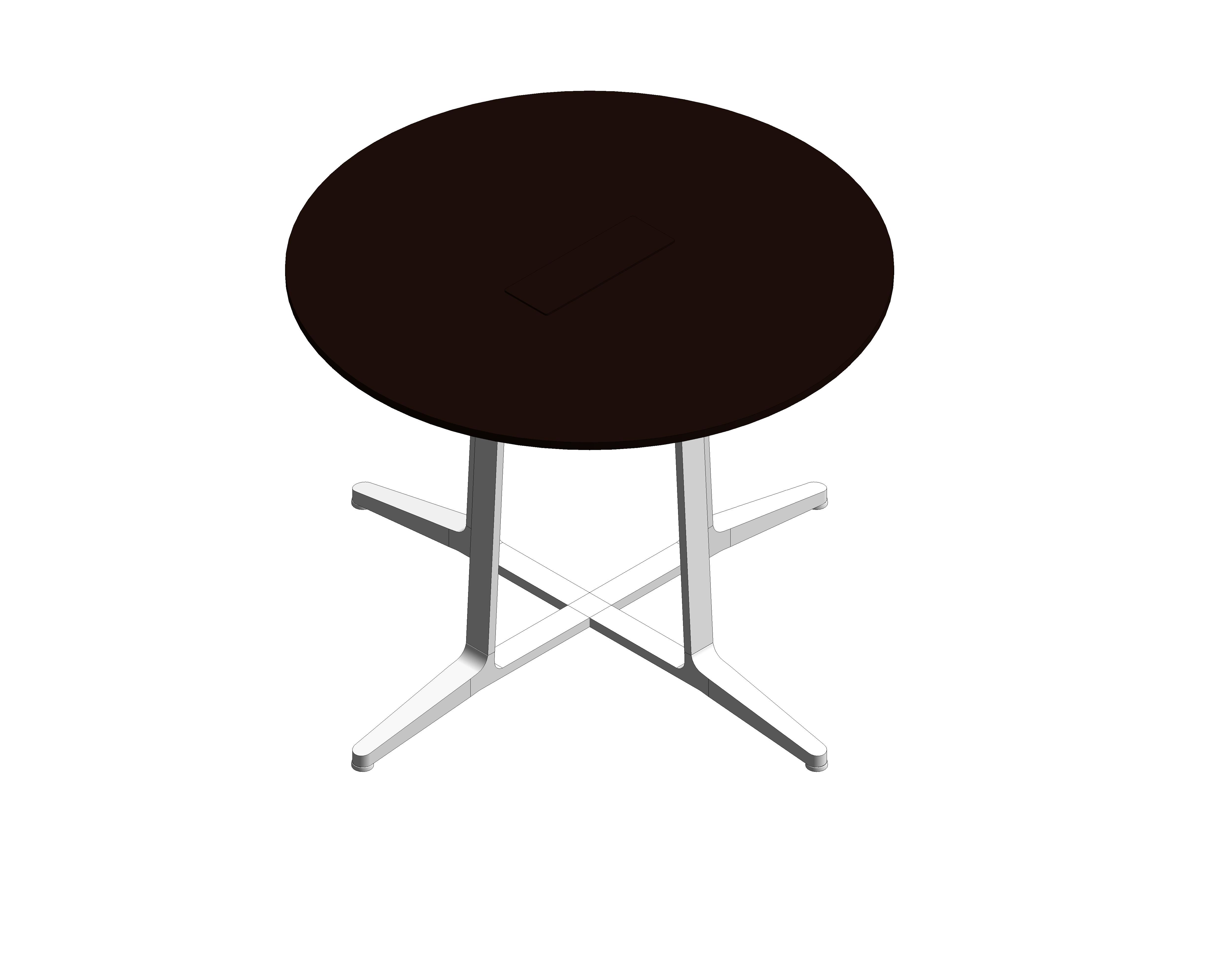

DescriptionConference Table Round 1000mm x 1000mm
Duration UnitYears
Expected Life5
FeaturesThe table system skill is designed to adapt to the quickly changing requirements of communication. For static meeting rooms the table system has been extended to include conference tables with a fixed base frame. Featuring a light appearance and the same elegant design as the mobile flip-top tables, even large table top formats can be implemented. A sophisticated cable management with invisible cable guides and easy plugging in at table top level enables perfect media integration.
FinishChoice of laminate (MFC) or HPL Fenix top with seamless, moisture resistant laser edge (ABS edge) or MDF board with standard veneers or premium veneers (walnut, zebrano) and laminated wood edge (straight part of the edge).
Graden/a
Ifc Export AsIfcFurnishingElementType
Ifc Export TypeOffice Tables
KeynotePr_40_50_21_15
Main ColorDefined by material specified
ManufacturerWiesner Hager Ltd
Manufacturer Address UKFourth Floor, 104-110 Goswell Road, London, EC1V 7DH
Manufacturer NameWiesner Hager Ltd
Manufacturer URLwww.wiesner-hager.com/en/
MaterialChoice of laminate (MFC) or HPL Fenix top, steel frame top support, powder-coated in black, die-cast aluminium cantilever foot, aluminium column.
Model3487-120
Model Number3487-120
Model ReferenceConference Table Round 1000mm x 1000mm
NameOfficeTables_Skill_Conference_Round_WiesnerHager
NBS DescriptionOffice Tables
NBS Office Master Tagn/a
NBS Reference45-35-20/335
NBS Type IDn/a
Nominal Height740 mm
Nominal Length1000 mm
Nominal Width1000 mm
Product Informationwww.wiesner-hager.com/en/products/table-systems/skill-conference-314/
Radius500 mm
Replacement Cost0.00
Revisionn/a
ShapeRound
Size(w) 1000mm x (d) 1000mm x (h) 740mm
Stylen/a
Sustainability PerformanceWiesner-Hager provides Environmental Product Declarations acc. to ISO 14025 for all product variants.
Type CommentsConference Table Round 1000mm x 1000mm
Uniclass 2015 DescriptionConference tables
Uniclass 2015 ReferencePr_40_50_21_15
Uniclass 2015 VersionProducts v1.3
URLwww.wiesner-hager.com/en/
Version1
Warranty DescriptionWarranty and Guarantee acc. to Wiesner-Hager General Terms for Sales and Deliveries
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborlondon@wiesner-hager.com
Warranty Guarantor Partslondon@wiesner-hager.com
