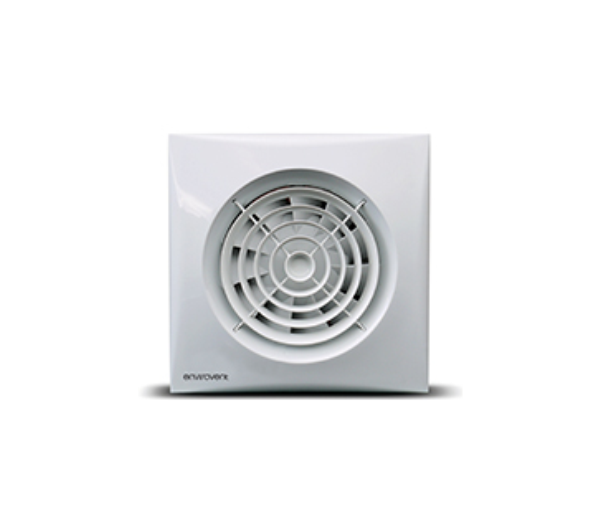

The Silent 100 is a 100mm domestic axial powerful bathroom extractor fan for wall or ceiling installations, designed to solve ventilation problems in WC’s and bathrooms.

The Silent 100 fan features an adjustable run-on timer. In automatic mode, the over-run timer calculates the amount of time to operate, depending on how long the fan has been running for.

Fitted with motors mounted on silent elastic blocks, the Silent 100 extractor fan delivers incredibly quiet running and exceptional performance with stylish features.

Key Features

  • Quiet Operation
  • Backdraught Shutter
  • Adjustable Run-On Timer
  • 5 Year Warranty

Numerous Quality Features

Fitted with pilot light, backdraught shutter and airflow guide vanes as standard to improve pressure development and performance, the Silent 100 extractor fan is also available with numerous quality features including optional timer, humidity sensor, SELV and PIR models.

The extractor fan also comes in either white or silver.

Intelligent Timer

In automatic mode, the over-run timer calculates the amount of time to operate, depending on how long the fan has been running for. (Alternatively it can be manually set to 5, 20 or 30 minutes run-on time).

Adjustable Timer

After disconnection, the shut off time can be delayed between 1 and 30 minutes.

Adjustable Humidity Sensor

The level of humidity for the bathroom can be chosen from between 60% and 90% Relative Humidity (RH). The extractor fan will continue to work long enough to reach the selected level.

PIR

Automatically starts up when the fan detects movement at a maximum of 4 metres.

Back Draft Shutter

To prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.

Product Codes

Product Code

Product Name

Product Description

SIL100SSilent 100Standard
SIL100TSilent 100Adjustable Timer
SIL100ITSilent 100Intelligent Timer
SIL100HTSilent 100Adjustable Humidity Sensor
SIL100PIRSilent 100PIR
SIL100SSSilent 100Silver, Standard
SIL100STSilent 100Silver, Adjustable Timer
SIL100S12VSilent 100Standard, SELV
SIL100T12VSilent 100Adjustable Timer, SELV
SIL100P12VSilent 100Pull-cord, SELV
SIL100TP12VSilent 100Adjustable Timer, Pull-cord, SELV
SIL100HTP12VSilent 100Adjustable Humidity Sensor, Adjustable Timer, Pull-cord, SELV
