The SD170 self drive work platform combines the best of our self-propelled and trailer mounted ranges.

It offers the same impressive reach capabilities as the Nifty 170 but with the versatility of a robust yet very lightweight drivable base.

This allows the operator to manoeuvre, set up and operate the SD170 self drive work platform without leaving the platform, especially on uneven surfaces.

Rough terrain tyres and 4WD as standard allow the SD170 self drive work platform to manoeuvre easily over a wide range of site conditions and its outstanding reach makes it ideal for tree care or construction site work.

For more information regarding the SD170 or any other self drive work platform, including the SD120T and SD210 4x4x4, please contact us.



SD170 4x4 Features

Weight Saving Design

Low cost transportation and better fuel economy on site

Hydraulic Outriggers

Quick & easy to set up

Telescopic Upper Boom

Greater accuracy when positioning the platform

Fully Proportional Hydraulic Controls

Simple, reliable & easy to maintain

Bi-Energy Available

Optimising utilisation

Platform Rotation

Better access to applications

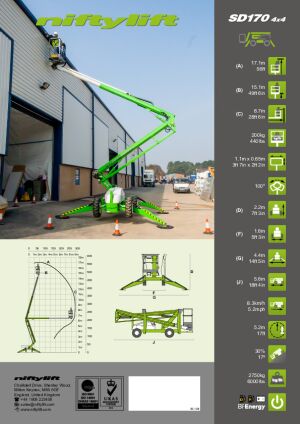

SD170 4x4 Specifications

Working Height (A)

17.1m (56ft)

Working Outreach (C)

8.7m (28ft 6in)

Platform Height (B)

15.1m (49ft 6in)

Machine Width (F)

1.6m (5ft 3in)

Machine Height (D)

2.2m (7ft 3in)

Machine Length (J)

5.6m (18ft 4in)

Working Width (G)

4.4m (14ft 5in)

Travel Speed

8.3km/h (5.2mph)

Gradeability

30%

Gradeability

17°

Turning Radius

5.2m (17ft)

Minimum Weight

2750kg (6000lbs)

Safe Working Load

200kg (440lbs)

Cage Rotation

100°

Cage Width

1.1m (3ft 7in)

Cage Depth

0.65m (2ft 2in)

Power Options

Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)





Keywords: MEWP, Mobile Elevating Work Platform, Cherry Picker, Boom Lift, Work Platform, Aerial Work Platform
