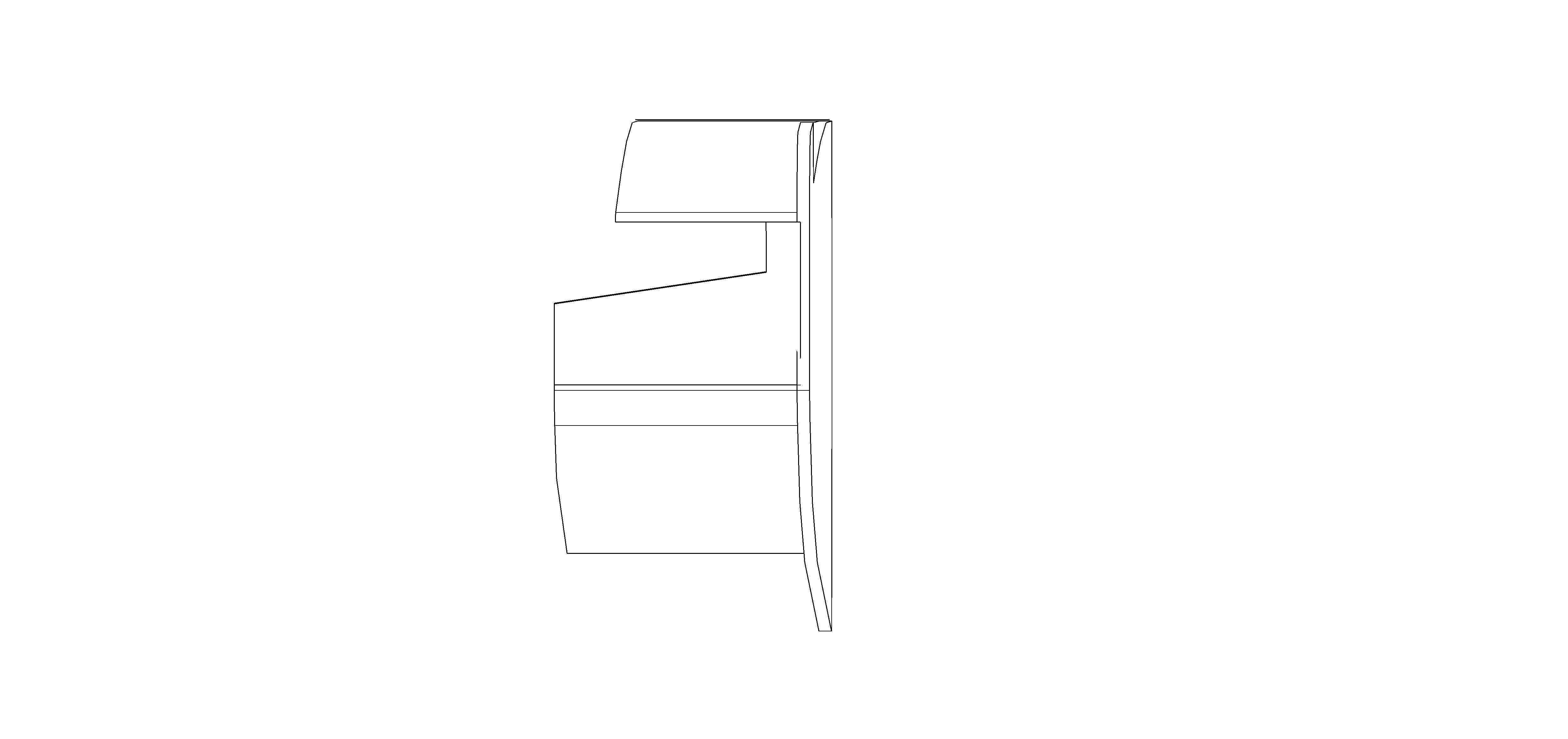

Bute3 - Verge Tile

Description

Bute3® is a revolutionary new concrete roof tile, combining 3 Traditional Plain Tiles with a standard interlocking roof tile format.

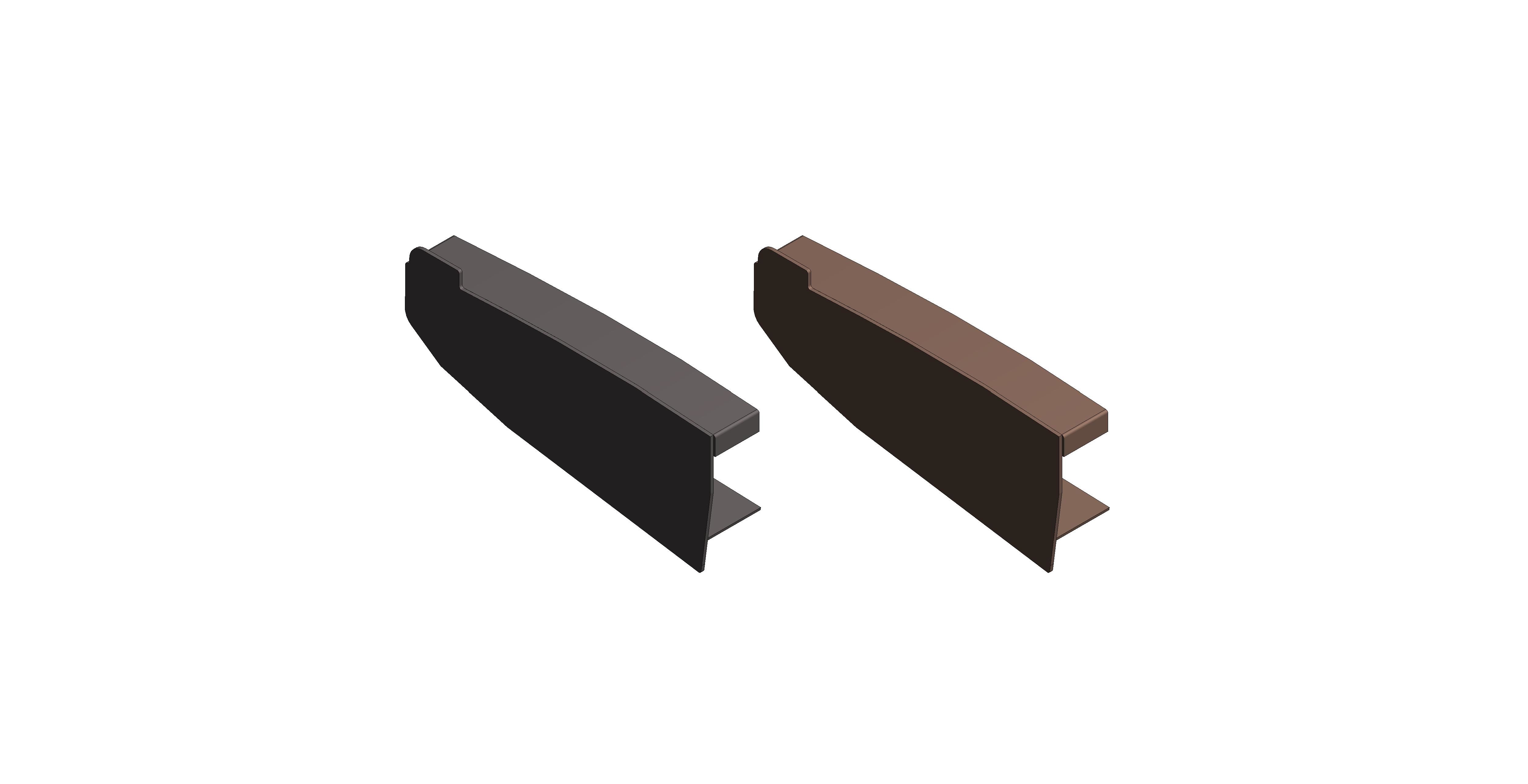

This download is for the Bute3 Range of Verge Tile components and includes the following types;

Brown
Grey
Left Hand & Right hand option

Click here to visit the product page on Russell Roof Tiles

Object Data

1 Revision

Last Updated

21/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

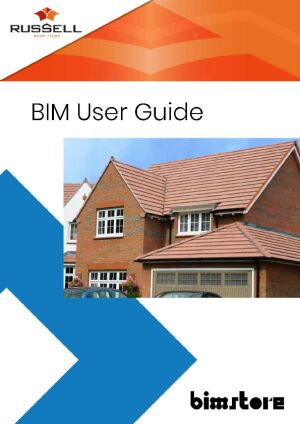

Object User Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/russell-roof-tiles-bute3-verge/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameRussellRoofTiles_DryVerge_Bute3
Classification NameUniclass2015
Classification ValuePr_35_90_93_30
Code Performancen/a
ColorBrown
Constituentsn/a
Created Bysalesenquiries@russellrooftiles.com
Created On2024-09-01T09:00:00
Default Elevation0 mm
DescriptionBute3 Dry Verge is a high-quality mechanically fixed verge unit which does not require the use of mortar
Documentation Certificateswww.bimstore.co/products/russell-roof-tiles-bute3-verge/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/russell-roof-tiles-bute3-verge/document/installation-guide
Documentation Literaturewww.bimstore.co/products/russell-roof-tiles-bute3-verge/document/product-literature
Documentation Maintenancewww.bimstore.co/products/russell-roof-tiles-bute3-verge/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/russell-roof-tiles-bute3-verge/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH65/405
ManufacturerRussell Roof Tiles
Manufacturer NameRussell Roof Tiles
Materialn/a
ModelBute3 Dry verge tile
Model NumberBrown
Model ReferenceBute3 Dry verge tile
NBS DescriptionDry fixing verges
NBS Object NameRussell Roof Tiles - Dry fixing verges
NBS Office Master Tagn/a
NBS Reference45-80-90/378
Nominal Depth60 mm
Nominal Height112 mm
Nominal Length280 mm
Primary MaterialRussell Roof Tiles - Brown
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size280 (W) x 112 (H) x 60 (D)
Spare Partsn/a
Type CommentsBrown
Type NameBrown
URLwww.russellrooftiles.com/
Verge Offset From Roof10 mm
Verge Overlap50 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsalesenquiries@russellrooftiles.com
Warranty Guarantor Partssalesenquiries@russellrooftiles.com
