Reverse Rinsing Actuator (RR)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

This object includes:

RR11S
RR74S

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

15/11/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

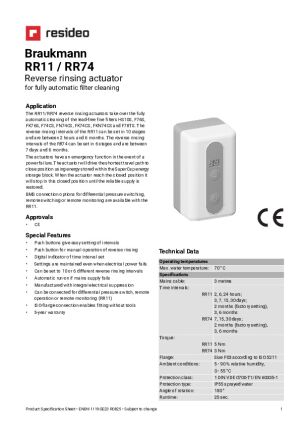

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/reverse-rinsing-actuator-RR11S/document/object-user-guide
Accessibility Performancen/a
Ambient Temperature0 … 60 °C
Assembly CodeD20
Asset TypeFixed
Backup Batteries6.0 Vdc +5/-20 % (4xbattery LR6-1.5 V-Mignon/AA size alkali-manganese batteries)
BIM Object NameResideo_ReverseRinsingActuator_RR11S
Classification NameUniclass2015
Classification ValuePr_75_50_02_94
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-07-04 T09:00:00
Default Elevation0.0 mm
DescriptionAUTOM.REV.RINS.ACTUATOR 230V
Documentation Certificateswww.bimstore.co/products/reverse-rinsing-actuator-RR11S/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/reverse-rinsing-actuator-RR11S/document/installation-guide
Documentation Literaturewww.bimstore.co/products/reverse-rinsing-actuator-RR11S/document/product-literature
Documentation Maintenancewww.bimstore.co/products/reverse-rinsing-actuator-RR11S/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/reverse-rinsing-actuator-RR11S/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.USERDEFINED
KeynoteS
ManufacturerResideo
Manufacturer NameResideo
MaterialSynthetic material
Maximum Media Temperature70 °C
ModelRR11S-A
Model NumberRR11S-A
Model ReferenceAUTOM.REV.RINS.ACTUATOR 230V
NBS DescriptionValve actuators
NBS Noten/a
NBS Object NameResideo - Valve actuators
NBS Office Master Tagn/a
NBS Reference90-65-50/310
Nominal Depth134.0 mm
Nominal Height130.0 mm
Nominal Length70.0 mm
Power Consumption10 W
Primary MaterialResideo - Plastic - White
Production Year2025
Protection ClassIP55
Referenced Standardn/a
Replacement Costn/a
Reverse Rinsing Interval Adjustable4 minutes to 3 months
Shapen/a
Size70mm (L) x 130mm (H) x 134mm (D)
Spare Partsn/a
Supply Voltage230 Vac
Type CommentsAUTOM.REV.RINS.ACTUATOR 230V
Type NameRR11S-A
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
