ProTec Plus 70 Cascade Boiler
Description
The high output ProTec Plus range has been designed with siting flexibility in mind. All the boilers are compatible with our open or concentric push-fit flue systems.
- 3 year guarantee. Stainless steel heat exchanger.
- 2m flying mains lead. Suitable for single unit or cascade installations.
- Open or concentric push-fit flue systems. Built-in plume management.
- Easy access for servicing. Built-in commissioning and fault finding.
Object Data
1 Revision
Last Updated
04/07/2019
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorIan Holmes
- _Authorized ByRyan Lashley
- _Bim Spec Guid0
- _BS Bible Version16
- _Created Bywww.bimstore.co
- _Current Revision1
- _Distributed Bywww.bimstore.co
- 6 MonthlyWater sample
- Access Clearance Bottom400 mm
- Access Clearance Front500 mm
- Access Clearance Left10 mm
- Access Clearance Rear0 mm
- Access Clearance Right10 mm
- Access Clearance Top300 mm
- Accessibility Performancen/a
- Additional Technical Detailswww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Air Inlet Connection Size80 mm
- AlertError
- AnnuallyService
- Assembly CodeD3020100
- Asset TypeFixed
- Bespoke Timeframe0
- BIM Object NameAlphaInnovation_MechanicalEquipment_CascadeBoiler_ProTecPlus
- BMS LinksYes
- Boiler Height From Level716 mm
- Boiler Lid MaterialPVC, Unplasticized
- Boiler MaterialSteel, Paint Finish, Ivory, Matte
- Bracket MaterialStainless Steel, Polished
- Building Regulations Seasonal Efficiency105.3
- Burner Control TypeModulating
- CE ApprovalYes
- Classification NameUniclass2015
- Classification ValuePr_60_60_08_34
- Code Performancen/a
- ColorWhite
- ColourWhite
- Condensate Drain Size22 mm
- Condensate Drain TypePlain

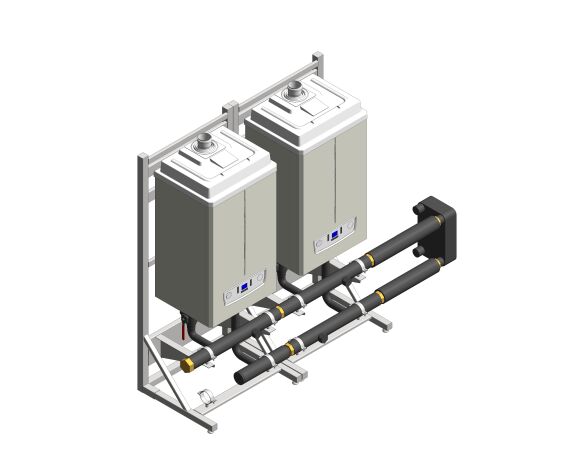

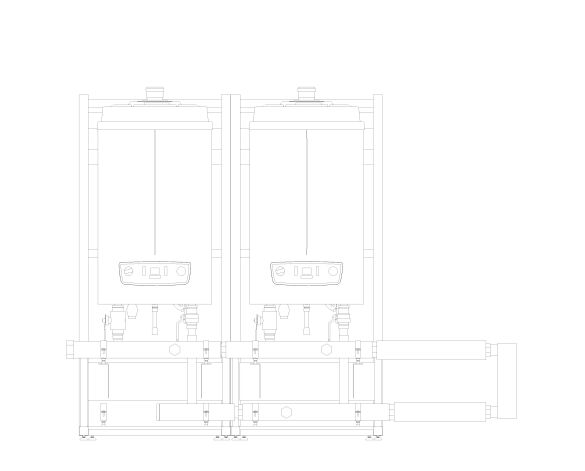

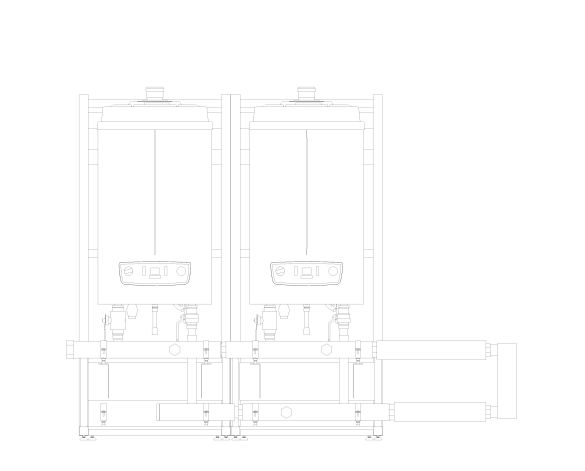

- ConfigurationTwo Boilers
- Constituentsn/a
- Control TypeOn/Off, Weather compensation, OpenTherm, 0-10V
- Created Byinfo@alpha-innovation.co.uk
- Created On2019-06-20T09:00:00
- Daily0
- DescriptionThe high output ProTec Plus range has been designed with siting flexibility in mind. All the boilers are compatible with our open or concentric push-fit flue systems.
- Documentation Certificateswww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236

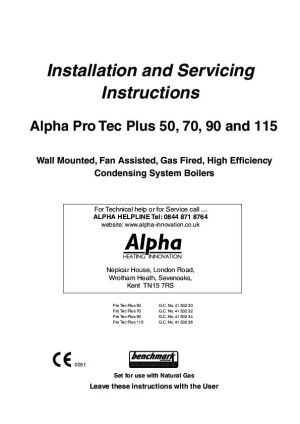

- Documentation Installation Guidewww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Documentation Literaturewww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Documentation Maintenancewww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Documentation Technicalwww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Drain Connection Size19 mm
- Drain Connection Typen/a
- Duration UnitYears
- ErP Energy LabelA
- ErP Rated Efficiency At Full Load97.3
- ErP Rated Efficiency At Part Load109.0
- ErP Seasonal Efficiency92
- Expected Life0
- External MaterialSteel
- Features3 year guarantee. Stainless steel heat exchanger. 2m flying mains lead. Suitable for single unit or cascade installations. Open or concentric push-fit flue systems. Built-in plume management. Easy access for servicing. Built-in commissioning and fault finding.
- Feet MaterialStainless Steel, Polished
- FinishSatin
- Flow And Return Connection Size38 mm
- Flow And Return Connection TypeThreaded
- Flue Connection Size80 mm
- Flue Or Air Intake ClassificationB23, C63
- Frame Height1817 mm
- Frame MaterialStainless Steel, Polished
- Frequency50
- Fuel Connection Size28 mm
- Fuel Connection TypeThreaded
- Full Load Current1.7
- Fuse Rating5A
- Gas Consumption Rate91.36
- Graden/a
- Gross Weight203.00 kg
- Heater OperationCondensing
- Heat Exchanger MaterialStainless Steel
- Hydraulic Resistanceat 11 C Temperature Differential0
- Hydraulic Resistanceat 20 C Temperature Differential0
- Ifc Export AsIfcBoilerType
- Ifc Export TypePset_BoilerTypeCommon
- IK RatingIEC 62262:2002
- InterlocksYes
- IP RatingIP X5D
- KeynoteT32
- Maintenance Required 0-300hrs0
- Maintenance Required 1001-2000hrs0
- Maintenance Required 2001-4000hrs0
- Maintenance Required 301-600hrs0
- Maintenance Required 4001-8000hrs0
- Maintenance Required 601-1000hrs0
- Maintenance Required 8001-12000hrs0
- ManufacturerAlpha
- Manufacturer NameAlpha
- MaterialSteel
- Maximum Gas Inlet Pressure22
- Maximum Oil Inlet Pressure0
- Maximum Operating Pressure3.5 bar
- Maximum Power Consumption390 W
- Minimum Flow Rate At 11 C Temperature Differential0
- Minimum Flow Rate At 20 C Temperature Differential0
- Minimum Gas Inlet Pressure18
- Minimum Oil Inlet Pressure0
- Minimum Operating Pressure0.5
- Minimum Power Consumption10 W
- ModelProTec Plus
- Model NumberProTec Plus - 2 Boiler
- Model ReferenceProTec Plus
- Monthly0
- MountingWall Mounted
- NBS DescriptionGas fired condensing boilers
- NBS Object NameAlpha Innovation - Gas fired condensing boilers
- NBS Office Master Tagn/a
- NBS Reference90-40-05/340
- No Boiler Calc2
- Nominal Depth660 mm
- Nominal Gas Inlet Pressure20
- Nominal Height1858 mm
- Nominal Length2280 mm
- Nominal Oil Inlet Pressure0
- No Of Boilers2
- NOx Emissions25
- O&M Manualwww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Oil Consumption Rate0
- Optional FuelGas - LPG
- Overall Length2280 mm
- Overall Height1858 mm
- Overall Width660 mm
- Pipe Kit MaterialPVC, Unplasticized, Black
- Pipe Kit Nut MaterialBrass, Soft Yellow
- Pipe Kit Red Handle MaterialPVC, Unplasticized, Red
- Primary FuelGas - NG
- Production Year2019
- Product Literaturewww.alpha-innovation.co.uk/products/Commercial+Products/Commercial+Products/ProTec+Plus+system+boilers/2696313236
- Product Model NumberProTec Plus - 2 Boiler
- Product RangeProTec Plus
- Quaterly0
- Rated Criteria60/80 ͦC
- Rated Output68kW
- Referenced Standardn/a
- Reference Standardn/a
- Replacement Costn/a
- Safety Valve Connection Size0 mm
- Safety Valve Connection TypeThreaded
- ShapeRectangular (Horizontal)
- Shipping Weight203.00 kg
- Single Boiler Length800 mm
- Sizen/a
- Sound Pressure Level18
- Spare Partsn/a
- Starting Current0
- Supply Phase1
- Turndown Ratio1:10
- TypeSpace heating
- Type CommentsProTec Plus - 2 Boiler
- Type NameProTec Plus
- URLwww.alpha-innovation.co.uk/
- Voltage240
- Warranty DescriptionParts and Labour
- Warranty Duration Labor3
- Warranty Duration Parts5
- Warranty Duration UnitYears
- Warranty Guarantor Laborinfo@alpha-innovation.co.uk
- Warranty Guarantor Partsinfo@alpha-innovation.co.uk
- Warranty IDParts and Labour
- Water Content4
- Water Treatment RequiredYes
- Weekly0
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
