Polar Centre Pivot Roof Window – PCP

by Keylite Roof Windows

Download Add to collection

Description

Our most versatile window, suitable for single or multiple applications in any roof with a pitch of 15°-90°. Keylite Polar White PVC roof windows' long life bright white finish is guaranteed by the use of only premium grade PVC materials ensuring that Polar remains maintenance free with only the occasional rub with a damp cloth required to retain its appearance. The opening handle is conveniently placed at the top of the window and also controls ventilation, giving the option of fresh air flow even when the window is locked and secure.

Click here to visit Keylite Roof Windows for more information.

Object Data

2 Revision

Last Updated

22/05/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision33
_Distributed Bywww.bimstore.co/

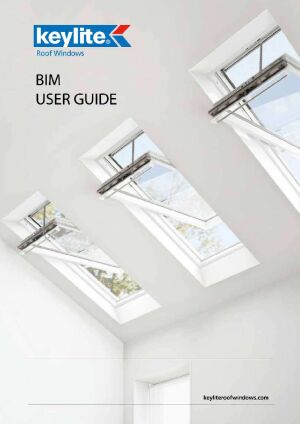

_Object User Guidewww.bimstore.co/products/polar-pvc-centre-pivot/document/object-user-guide
2D Detailwww.keyliteroofwindows.com/architects/cad-drawings/
Accessibility Performancen/a
Acoustic Performance32
Air PermeabilityClass 3
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_PolarPVCCentrePivot
Classification NameUniclass2015
Classification Valuen/a
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@keylite.co.uk
Created On03-08-2020T09:00:00
Define Thermal Properties bySchematic Type
DescriptionPolar White PVC Roof Window
Documentation Certificateswww.bimstore.co/products/polar-pvc-centre-pivot/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/polar-pvc-centre-pivot/document/installation-guide
Documentation Literaturewww.bimstore.co/products/polar-pvc-centre-pivot/document/product-literature
Documentation Maintenancewww.bimstore.co/products/polar-pvc-centre-pivot/document/maintenance-information

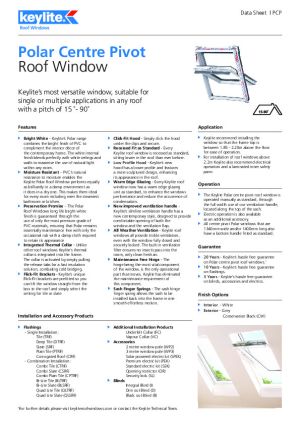

Documentation Technicalwww.bimstore.co/products/polar-pvc-centre-pivot/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesSingle Window Installation
FinishInterior: PVC Exterior: Powder Coated Aluminium
Graden/a
Height1180 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceClass 2
Keylite AccessoriesAluminium
Keylite Construction WoodPine
Keylite External PartsAluminium
Keylite Internal PartsPine
Keylite ProfilePolystyrene
Keylite Thermal CollarPine
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
MaterialLaminate, PVC, Aluminum
ModelPolar PVC Centre Pivot
Model NumberPCP 08
Model ReferencePolar PVC Centre Pivot
NBS DescriptionPVC frame roof window units
NBS Object NameKeylite - PVC frame roof window units
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth1180 mm
Nominal Height0 mm
Nominal Length1140 mm
Offset From Roof65 mm
Picture Typehhttps://www.keyliteroofwindows.com/products/roof-windows/combination-window-options/
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Resistance To Snow Load4H-20, Ar-4TM
Resistance To Wind LoadClass C4
Rough Height1180 mm
Rough Width1140 mm
ShapeSquare
Size1140(W) x 1180(H)
Solar Factor G0.65
Spare Partsn/a
Thermal Transmittance Of Glass1.1
Thermal Transmittance Of Window1.3
Type CommentsPCP 08
Type NamePCP 08
URLwww.keyliteroofwindows.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keylite.co.uk
Water TightnessE1050
Width1140 mm
