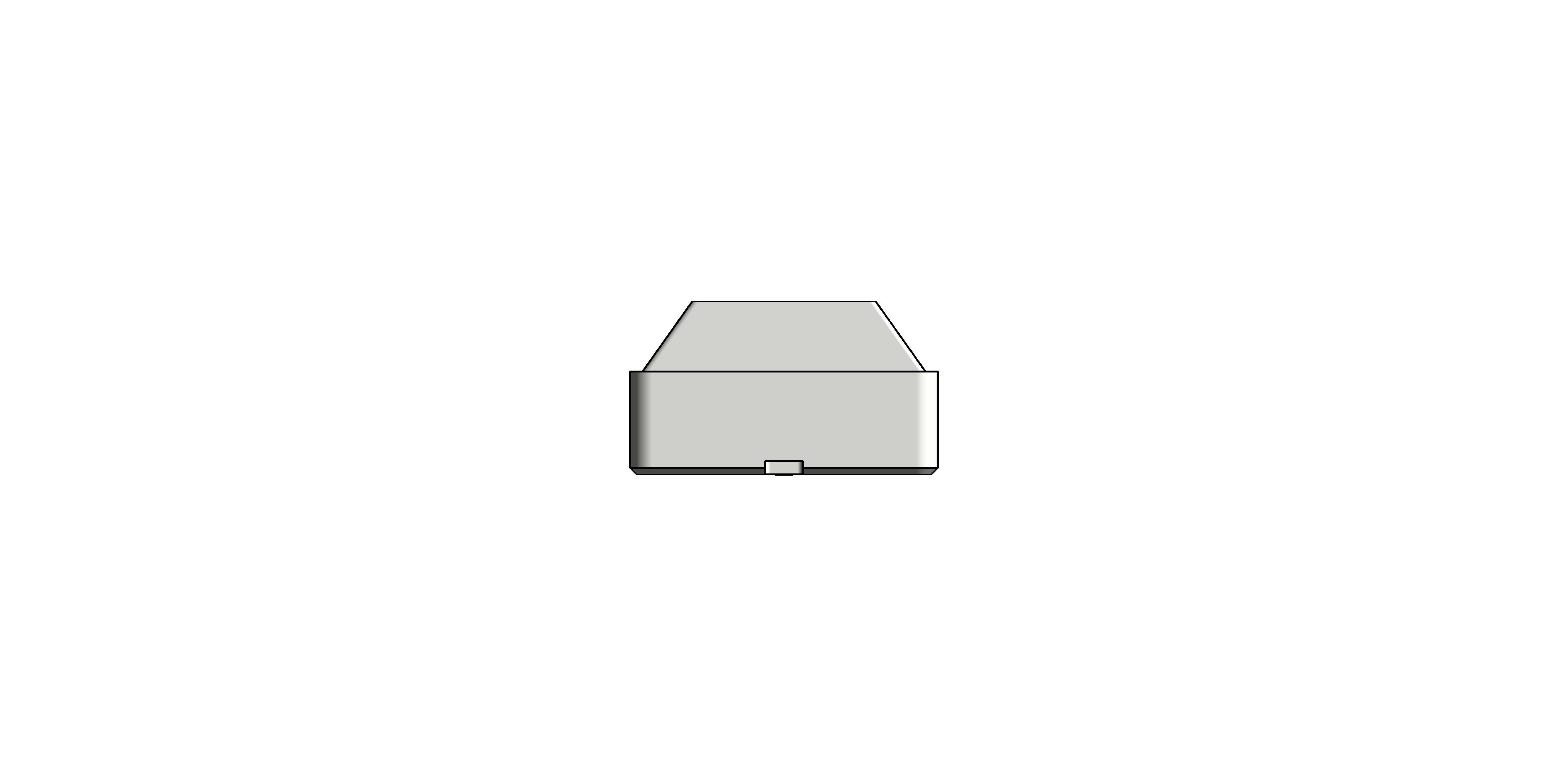

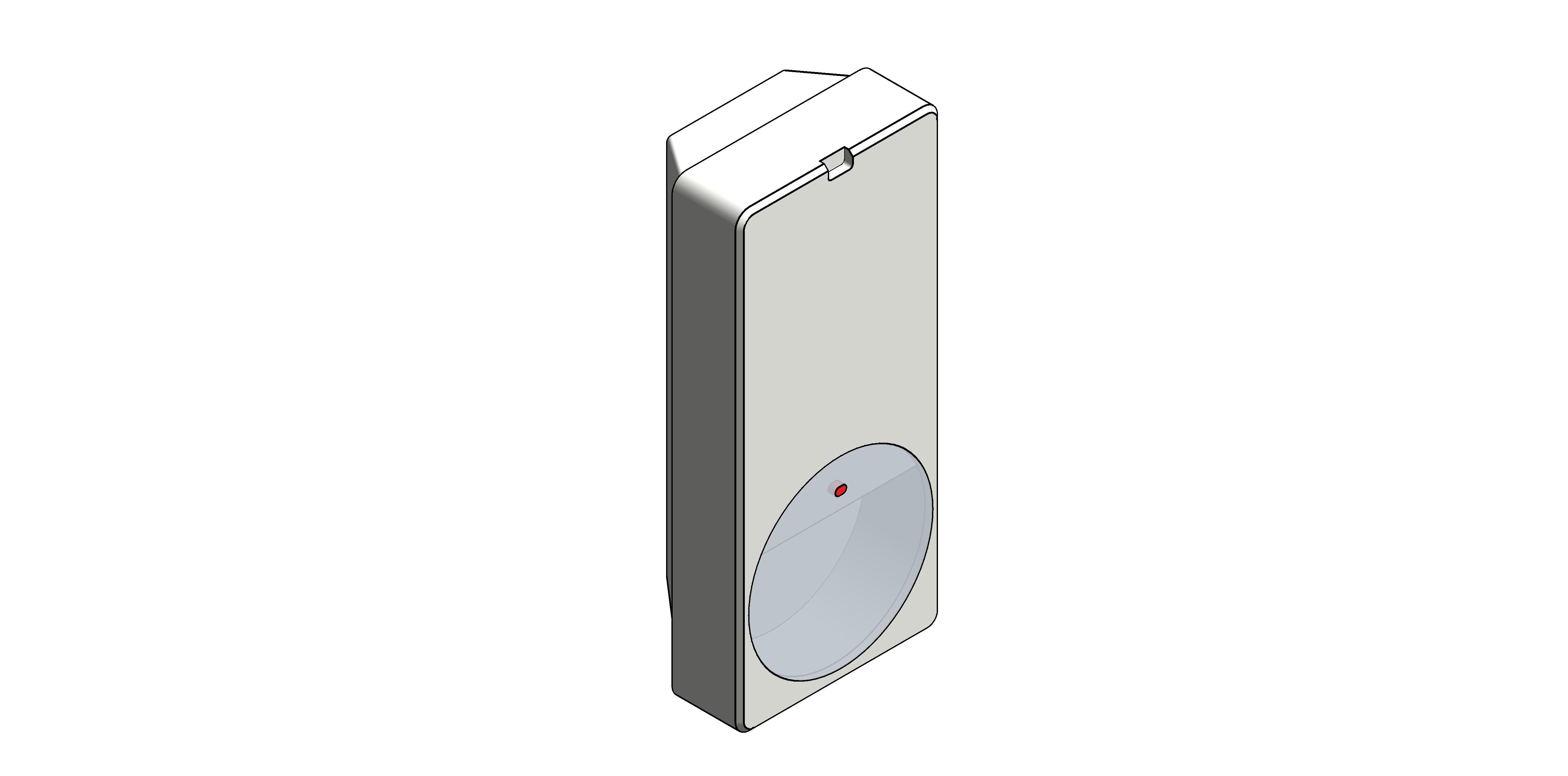

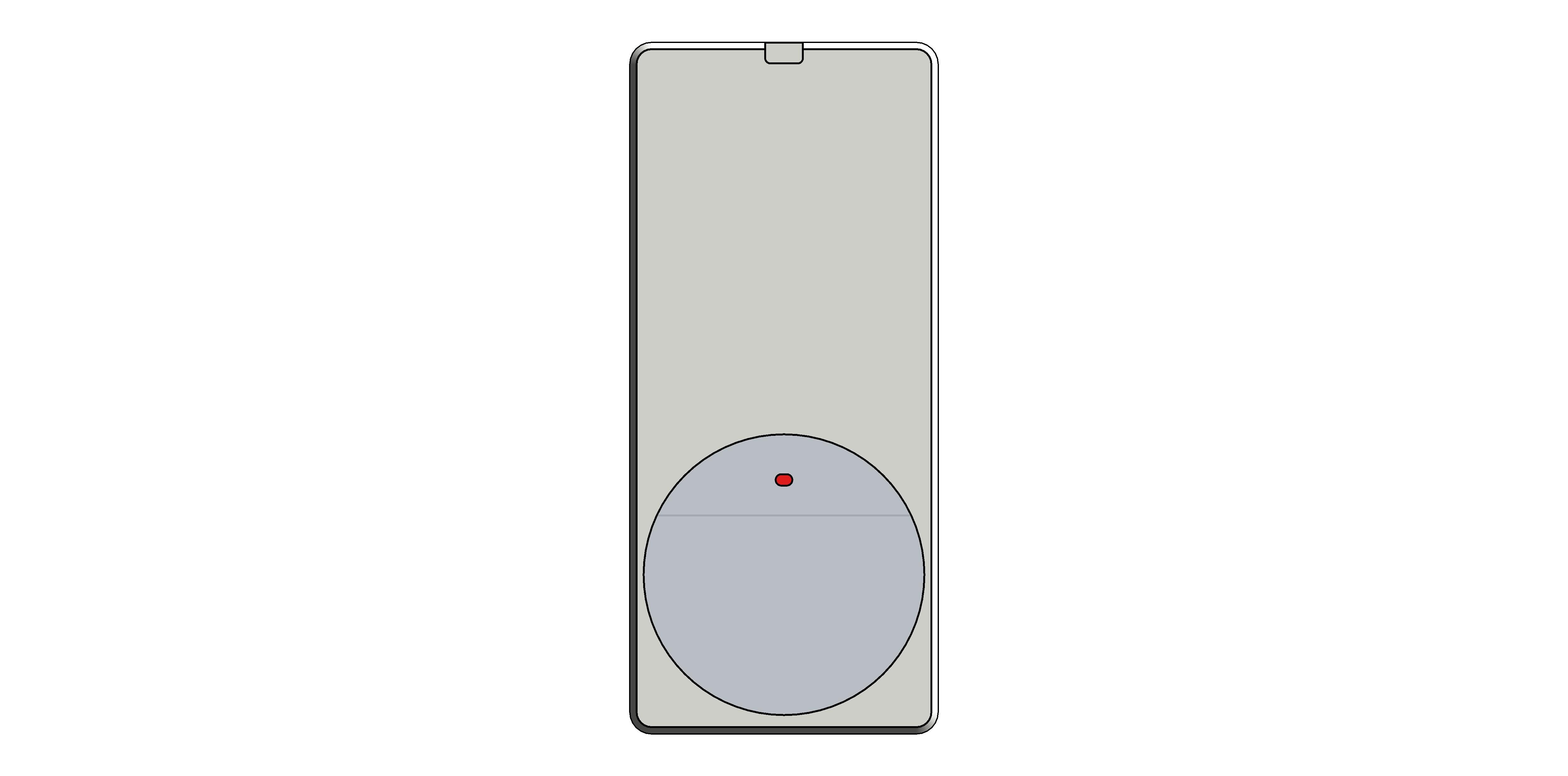

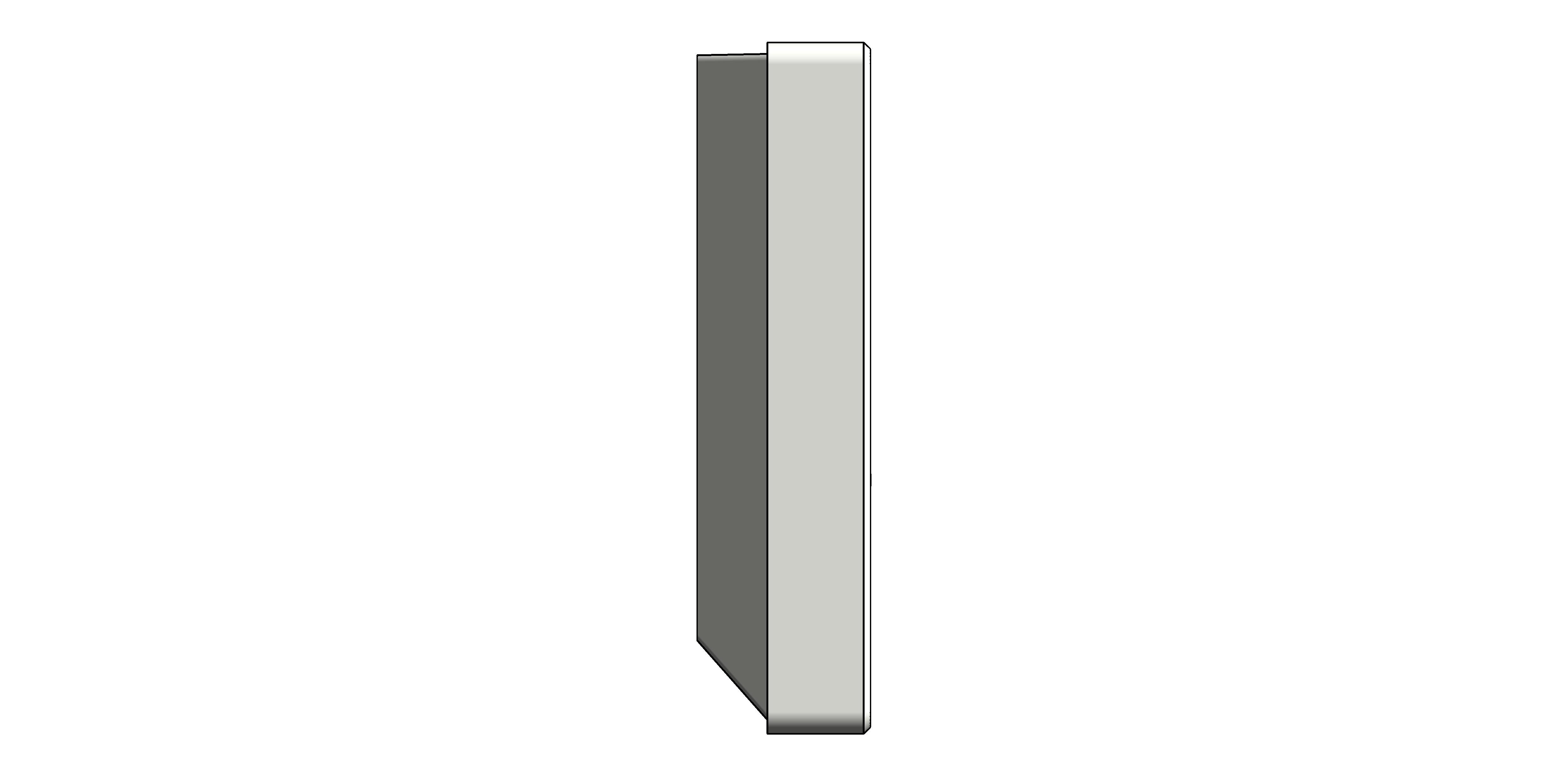

bimstore - Vanderbilt - PDM-IXA12T Dual AM Detector 10.525GHz

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/object-user-guide
Accessibility Performancen/a
AccessoriesPO-C20 Curtain set (4pcs) for PDM-I12 PZ-MBG2 Mounting bracket G2 for PDM PZ-CA 1/4" Adap. f. camera bracket 4pcs PO-CL Pet-Clip for PDM-I12 (10 pcs) PO-FM Flush Mount Housing Base PDM-I12 PO-MHB12 Metalliz. Housing Base PDM-I12 PO-PA01 EOL PCB 4k7,2k2,2k2 (100pcs) PO-PA02 EOL PCB 2k2,4k7,2k2 (100pcs) PO-PA03 EOL PCB 12k,1k,1k (100pcs) PO-PA04 EOL PCB 12k,6k8,4k7 (100pcs) PO-PA05 EOL PCB 1k,3k3,3k3 (100pcs) PO-PA06 EOL PCB 48k,16k2,16k2 (100pcs) PO-PA07 EOL PCB 48k,48k,48k (100pcs)
AdditionalEOL resistor: RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW Walk test input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ Set/unset input: LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ Storage temperature: - 20° ... + 60°C Optical system: MAGIC mirror
Air Humidity(EN 60721) < 95% RH, non-condensing
Anti MaskYes
Assembly CodeD5030800
Asset TypeFixed
Audion/a
BIM Object NameVanderbilt_MotionDetector_PDMIXA12T
Card Capacityn/a
Card Compatibilityn/a
Card Read Distancen/a
Card Technologyn/a
Case MaterialVanderbilt_White_RAL9003
CategoryMotion Detection 12M Dual Technology with Anti-mask
Classification NameUniclass2015
Classification ValuePr_75_80_42_16
Code Performancen/a

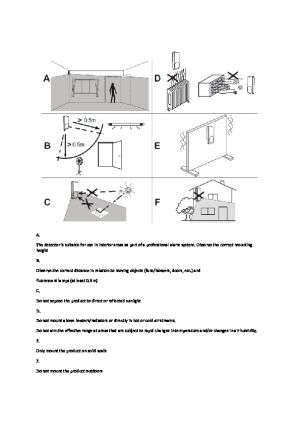

Collision Spacewww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/collision-space
ColorWhite RAL9003
Constituentsn/a
Created Bysupport.uk@vanderbiltindustries.com
Created On2022-07-28T09:00:00
Default Elevation0 mm
Depth32 mm
DescriptionThe PDM motion detectors utilize the patented MAGIC Mirror technology, which sets new standards in detection sensitivity and enables an extremely compact design. The innovative dual mirror design increases the focal length, which gives the detectors more homogeneous detection sensitivity, especially for wider areas. A new white-light filtering system reduces false alarms caused by external light sources such as car headlights or lamps. Offering anti-mask, pet immunity and dual technology options to combine infrared and microwave.
Detection Characteristics RangeVolumetric / 12 m
DisplayNo
Documentation Certificateswww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/product-certificates

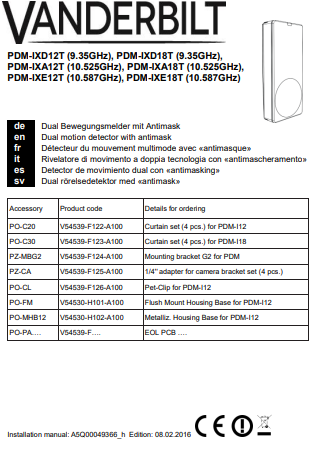

Documentation Installation Guidewww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/installation-guide

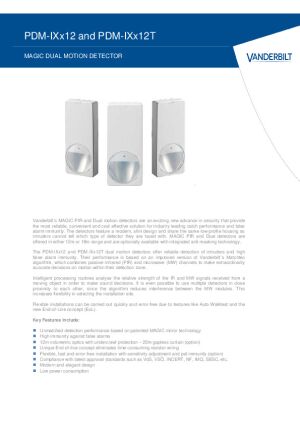

Documentation Literaturewww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/product-literature
Documentation Maintenancewww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/technical-data-sheet
Door Capacityn/a
Duration UnitYears
Ean Upc Code4025515470489
Ecology CertificatesRoHS, REACH
EnvironmentIndoor
EOL Resistorn/a
Expected Life0
FeaturesUnmatched detection performance based on patented MAGIC mirror technology. High immunity against false alarms. 12m volumetric optics with undercrawl protection – 20m gapless curtain (option). Unique End-of-line concept eliminates time-consuming resistor wiring. Flexible, fast and error-free installation with sensitivity adjustment and pet immunity (option). Compliance with latest approval standards such as VdS, VSÖ, INCERT, NF, IMQ, SBSC, etc. Modern and elegant design. Low power consumption. The integrated anti-mask function reliably detects any potential covering of the detector.
Finishn/a
Graden/a
Height128 mm
Housing ProtectionIP41 / IK02
Ifc Export AsIfcAlarm
Ifc Export TypeIfcAlarmType
IndicatorsLED
InterfaceStandard interface supporting pre-fitted End-of-Line (EoL) resistors
KeynoteW
LanguagesGerman, English, French, Spanish, Italian, Dutch
ManufacturerVanderbilt
Manufacturer NameVanderbilt
MaterialABS
Metadatan/a
Microwave10.525 GHz
ModelPDM-IXA12T
Model NumberV54531-F116-A100
Model ReferencePDM-IXA12T
MountingWall
NBS DescriptionCombined passive infrared and microwave detectors
NBS Noten/a
NBS Object NameVanderbilt - Combined passive infrared and microwave detectors
NBS Office Master Tagn/a
NBS Reference90-75-40/330
Nominal Depth32 mm
Nominal Height128 mm
Nominal Length57 mm
Number Of On Board Relaysn/a
Number Of On Board Zonesn/a
Offset32 mm
Operating Current6.3 mA (rms) 10.5 mA (max peak)
Operating Temperature- 10° ... + 55°C
Outputs30 VDC / 100 mA, NC
Pet ImmunityYes (option)
Production Year2022

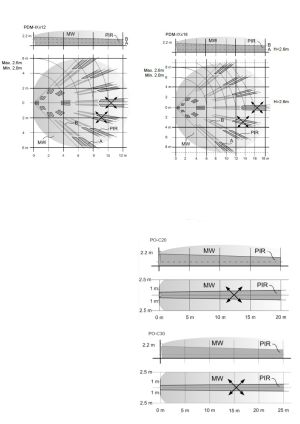

Rangewww.bimstore.co/products/pdm-ixa12t-dual-am-detector-10-525ghz/document/range
Referenced StandardCE (EU), EN (EU), VDS B/C (DE), IMQ (IT), NF A2P (FR), INCERT (BE / NR), FCC (US), UL (USA), RCM (Aus), EAR (Ru), SBSC (SE), F & P (DK), FG (No), (FI), SE, CS, VSO (AT), SES (CH), CA (UK). Refer to: https://vanderbiltindustries.com/compliance-documents
RegionsEurope +
Relay Outputsn/a
Replacement Costn/a
Screen MaterialVanderbilt_Screen
Sensitivity Evaluation Mode6 settings
Sensor MaterialVanderbilt_Sensor
ShapeRectangle
Size57mm(W) x 128mm(H) x 32mm(D)
Spare Partssupport.uk@vanderbiltindustries.com
Supply Voltage'9 ... 16 VDC (12 V nom.)
Tamper ProtectionYes
TitlePDM-IXA12T Dual AM detector 10.525GHz
Type CommentsV54531-F116-A100
Type NameV54531-F116-A100
URLvanderbiltindustries.com/
Verificationn/a
Videon/a
Walking Speed0,1 ... 4,0 m/s / 0,1 ... 4,0 m/s
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborsupport.uk@vanderbiltindustries.com
Warranty Guarantor Partssupport.uk@vanderbiltindustries.com
Weight0.1Kg
Width57 mm
