OW80+ Tilt and Turn

Description

Experience flexible ventilation and effortless operation with the Origin Tilt and Turn Window. Its intelligent dual-opening design tilts inwards from the top for secure, controlled airflow or opens fully inwards for easy access and cleaning. Made bespoke in the UK from premium-grade aluminium, it combines exceptional thermal performance, dependable security and refined aesthetics to deliver lasting comfort and versatility.

The following configurations are available for download:

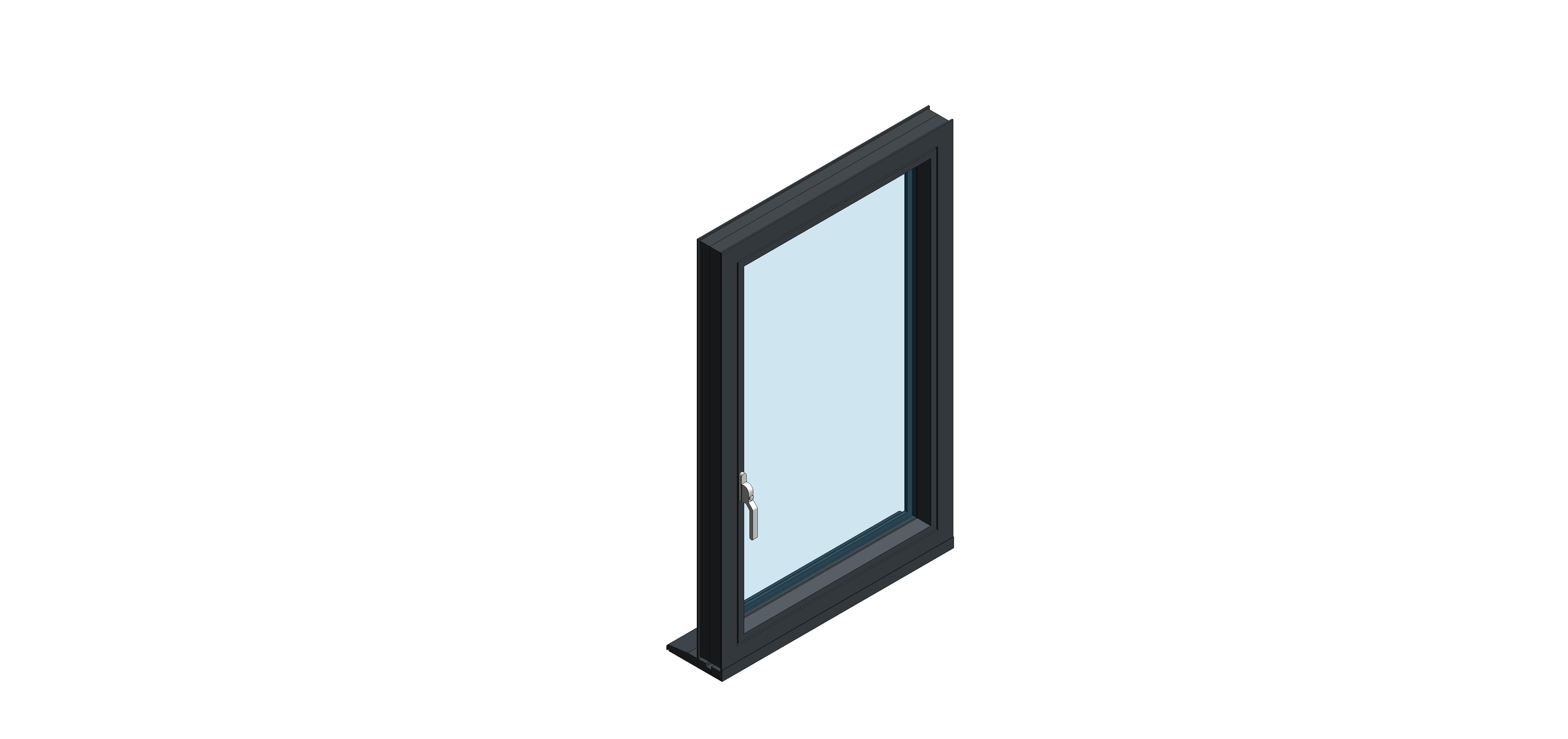

Single Casement

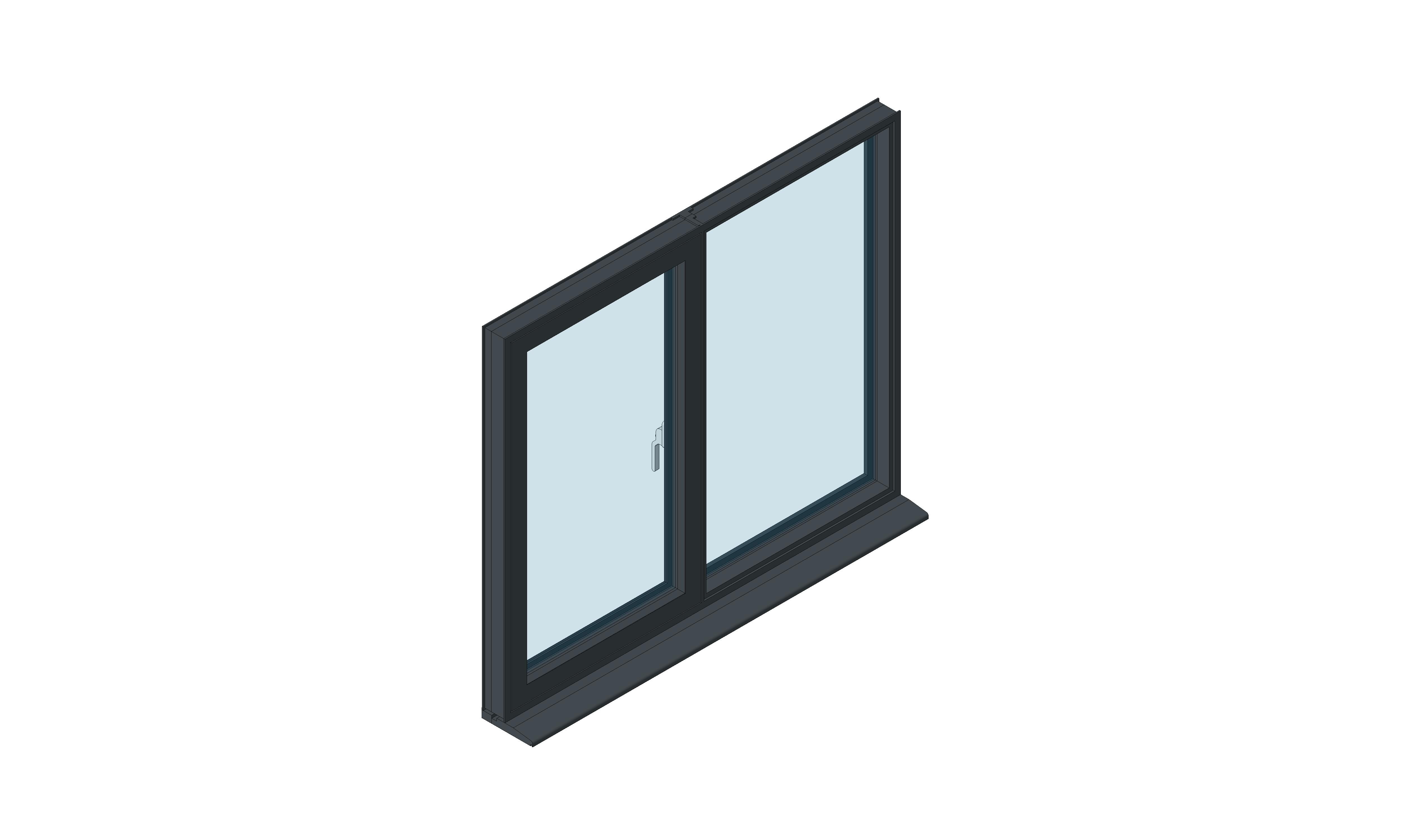

Single + Fixed

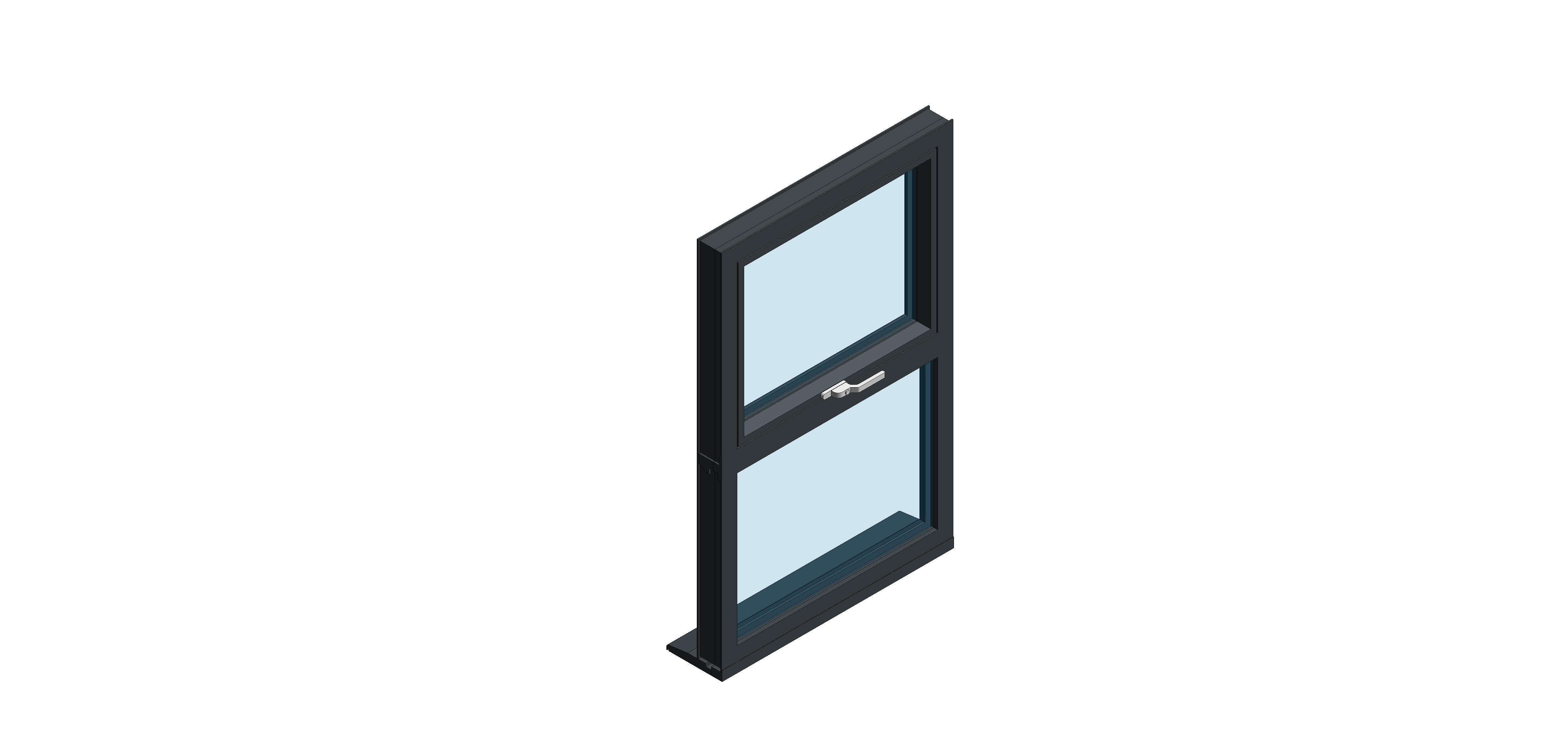

Top + Bottom Fixed

Object Data

1 Revision

Last Updated

07/09/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

Technical Data Sheet

Product Data Sheet

Product Literature

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/fa1f4c39-a8e5-4dcf-bc19-d323d196f15c/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB2020110
Asset TypeFixed
BIM Object NameOriginGlobal_Window_Aluminium_OW80_TiltTurn_Single_Fixed
Classification NameUniclass2015
Classification ValuePr_30_59_98_02
Code PerformanceBS EN 1670:2007 Grade 4 / BS EN 10088-2 Grade Certified
ColorAvailable in over 150 RAL colours
Constituentsn/a
Created Byenquiry@origin-global.com
Created On2026-07-16T09:00:00
Default Cill Height800 mm
Depth80 mm
DescriptionModernising the design of traditional 19th Century timber windows, the Origin Premium Window is a highly durable and blissfully functional solution that’s perfect for the 21st Century.
Documentation Certificateswww.bimstore.co/products/fa1f4c39-a8e5-4dcf-bc19-d323d196f15c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fa1f4c39-a8e5-4dcf-bc19-d323d196f15c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fa1f4c39-a8e5-4dcf-bc19-d323d196f15c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fa1f4c39-a8e5-4dcf-bc19-d323d196f15c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fa1f4c39-a8e5-4dcf-bc19-d323d196f15c/document/technical-data-sheet
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcWindow
FeaturesAccommodates double and triple glazing, with unit sizes of 28mm, 32mm or 44mm
FinishAluminium
Glass Offset_EXT22 mm
Glass Offset Fixed_EXT39 mm
Glass Thickness4 mm
Glazing Thickness28 mm
GradeHigh grade Aluminium
Head Tolerance0 mm
Height1200 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Internal Reveal Thickness25 mm
Jamb Tolerance0 mm
KeynoteL10/330
ManufacturerOrigin Global
Manufacturer NameOrigin Global
MaterialHigh grade aluminium
ModelOW-80
Model NumberOW-80
Model ReferenceTilt Turn - Single / Fixed
NBS DescriptionAluminium window units
NBS Noten/a
NBS Object NameOrigin Global - Aluminium window units
NBS Office Master Tagn/a
NBS Reference45-25-99/310
Nominal Depth80 mm
Nominal Height1200 mm
Nominal Length1400 mm
Production Year2026
Referenced StandardPAS 24:2016 (Document Q Compliant) and Secured by Design
Rough Height1200 mm
Rough Width1400 mm
Sash Width669 mm
ShapeRectangle
Size1400mm (w) x 1200mm (h)
Spare Partsn/a
Structural Opening Area1.68 m²
Type CommentsTilt Turn - Single / Fixed
Type IFC Predefined TypeIfcWindowTypeEnum.WINDOW
Type NameTilt Turn - Single / Fixed
URLorigin-global.com/
Wall ClosureBy host
Warranty DescriptionUp to a 20-year guarantee (Guarantee based on location of where the windows will be installed. Full terms and conditions can be found on the Origin website - origin-global.com/terms-and-conditions).
Warranty Duration Laborn/a
Warranty Duration Parts20
Warranty Duration UnitYears
Warranty Guarantor Laborenquiry@origin-global.com
Warranty Guarantor Partsenquiry@origin-global.com
Width1400 mm
