300 – Tile / Resin / Concrete – with Liquid Membrane

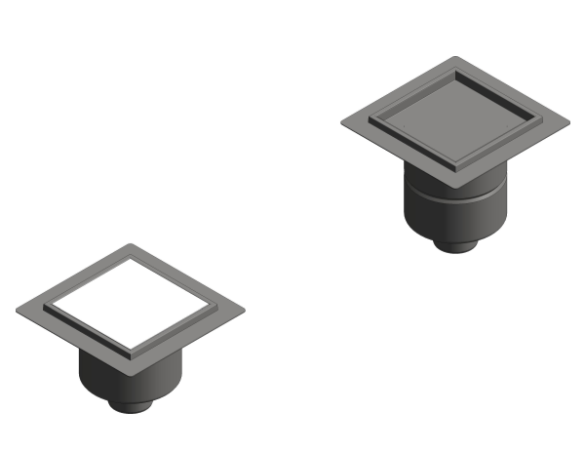

This Download Contains the BLÜCHER® Industrial One-part drain – size 300 mm, with liquid membrane. Flow rate up from up to 7.8 ltr/sec.

Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.

  • Horizontal and Vertical outlet, 110 and 160 mm
  • For concrete, tiled and resin floors
  • Square model
  • Drains 761.403
  • The product is made from 1.5 mm acid-pickled stainless steel.
  • 4 Grating options load class up to 10.000 kg
  • Designed in accordance with EN1253.

Key Component Features:

  • User selectable Drain
  • User selectable Gratings
  • User selectable Watertrap
  • User selectable Filter Basket
  • Automated product codes
  • Pre-selected concrete cut out / base concrete slab option for installation purpose

Products: 761.403.110, 767.403.110, 767.403.160
