bimstore - Mount Lighting - T-Line 100mm Suspended Lighting

334
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

14/12/2022

Download BIM

Add to collection

Available for:

Our T-Line range uses an opal tubular polycarbonate diffuser with a hidden aluminium spine to suspend the luminaire. The fitting is supplied with a 1.5 metre clear flex as standard. The aluminium end caps are white as standard but can be finished in RAL colours of your choice.

Key Features

Available in multiple lengths
Colour options in 3000K/4000K/5000K
Custom shapes available subject to design
Incorporates European-branded LED drivers
Up to 134 lumens per circuit watt
Opal polycarbonate diffuser
Tuneable white and RGBW options available
Dimmable and emergency options available
CRI>80, 50,000 hours of life
End caps can be finished in your choice of RAL colour

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/mount-lighting-t-line-100mm-suspended-lighting/document/object-user-guide
3 KNo
5 KNo
Accessibility Performancen/a
Assembly CodeD5020200
Asset TypeFixed
BIM Object NameMountLighting_SuspendedLighting_TLine100mm
Classification NameUniclass2015
Classification ValuePr_70_70_48
Code Performancen/a
Colorn/a
Color Filter16777215
Constituentsn/a
Created Bysales@mountlighting.co.uk
Created On2022-10-01T09:00:00
DALINo
Default Elevation1219 mm
DescriptionOur T-Line range uses an opal tubular polycarbonate diffuser with a hidden aluminium spine to suspend the luminaire. The fitting is supplied with a 1.5 metre clear flex as standard. The aluminium end caps are white as standard but can be finished in RAL colours of your choice.
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.bimstore.co/products/mount-lighting-t-line-100mm-suspended-lighting/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/mount-lighting-t-line-100mm-suspended-lighting/document/installation-guide
Documentation Literaturewww.bimstore.co/products/mount-lighting-t-line-100mm-suspended-lighting/document/product-literature
Documentation Maintenancewww.bimstore.co/products/mount-lighting-t-line-100mm-suspended-lighting/document/maintenance-information

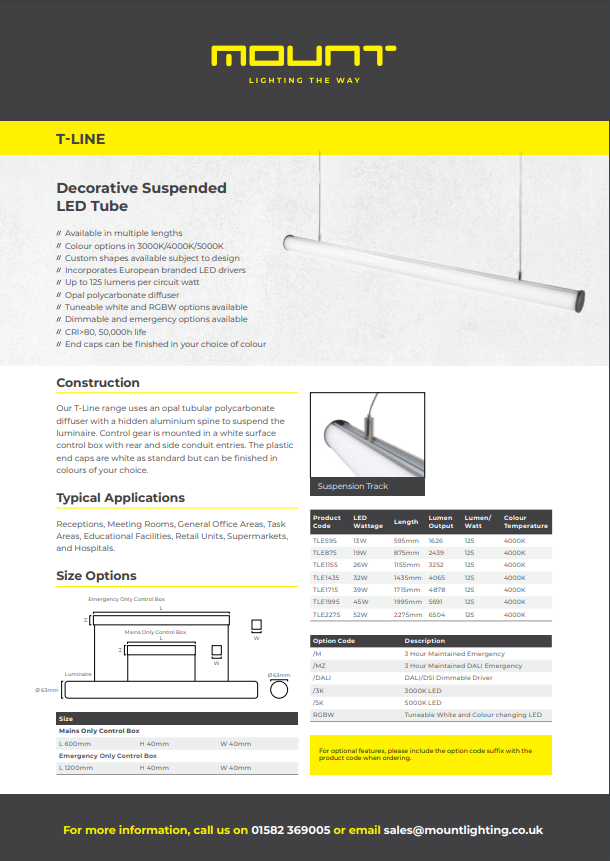

Documentation Technicalwww.bimstore.co/products/mount-lighting-t-line-100mm-suspended-lighting/document/technical-data-sheet
Duration UnitYears
Emit from Rectangle Length55 mm
Emit from Rectangle Width1145 mm
Emit Shape Visible in RenderingNo
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcLamp
Ifc Export TypeIfcLampTypeEnum
KeynoteV
MNo
ManufacturerMount Lighting
Manufacturer NameMount Lighting
Materialn/a
ModelT Line 100mm Suspended Lighting - TLE100/1155
Model NumberTLE100/1155
Model ReferenceT Line 100mm Suspended Lighting
MZNo
NBS DescriptionLuminaires, lighting track and lighting accessories
NBS Noten/a
NBS Object NameMount Lighting - Luminaires, lighting track and lighting accessories
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Photometric Web Filegeneric
Production Year2022
Referenced Standardn/a
Replacement Costn/a
RGBWNo
Shapen/a
Sizen/a
Spare Partssales@mountlighting.co.uk
Tilt Angle0.00 °
Type CommentsT Line 100mm Suspended Lighting - TLE100/1155
Type NameT Line 100mm Suspended Lighting - TLE100/1155
URLmountlighting.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@mountlighting.co.uk
Warranty Guarantor Partssales@mountlighting.co.uk
Width1155 mm
