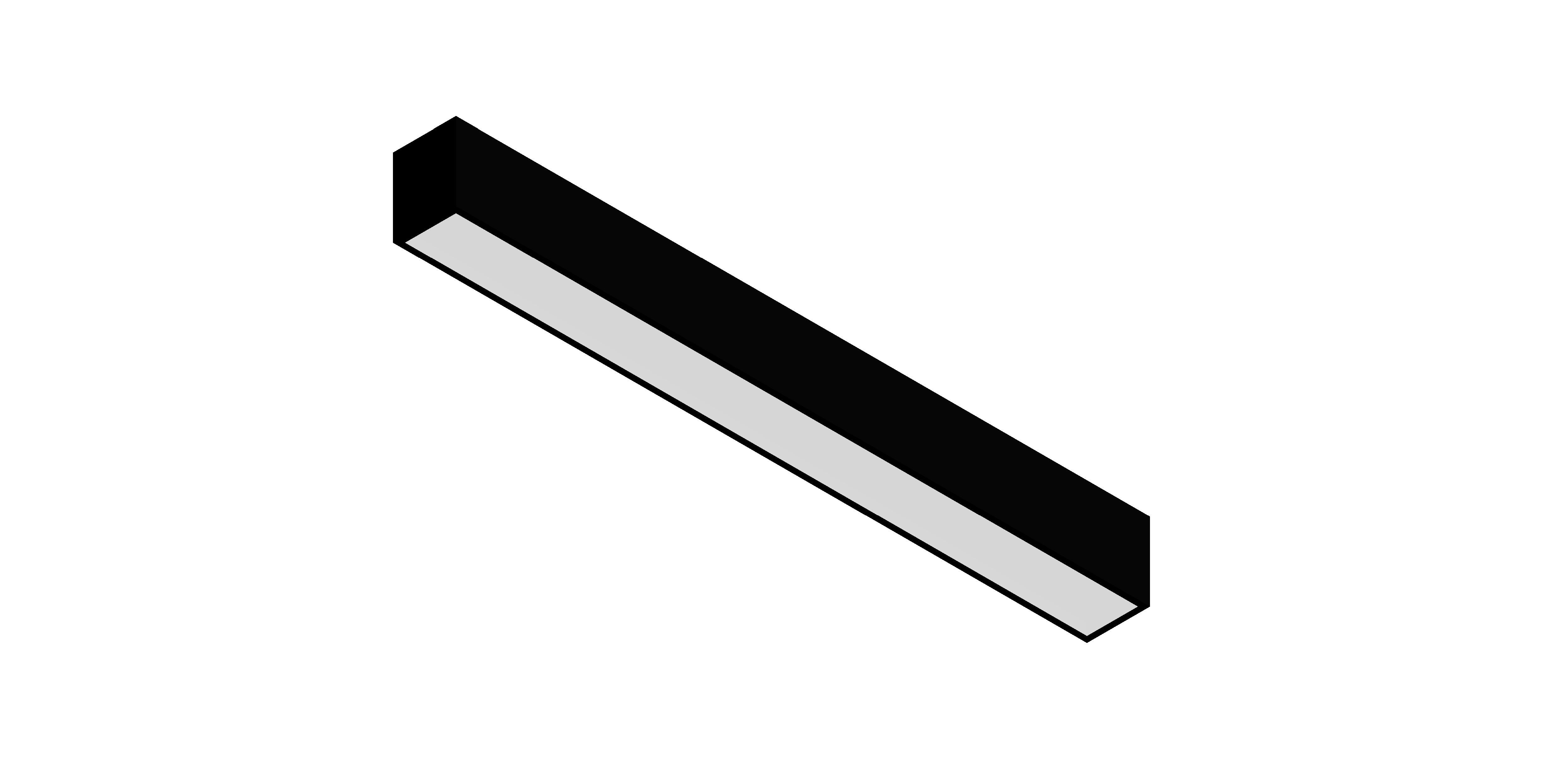

The M-Line 54 UGR19 is a surface light fitting but the profile can also be utilised for suspended mounting. This is achieved by directly fixing through the rear of the profile. Suspension is made simple using a single-point ceiling bracket with a 2m adjustable stainless steel wire system.

The linear aluminium profile is available in 15 different lengths up to 4523mm with bespoke lengths and shapes available to order upon request. The low UGR is achieved with a specialised polycarbonate diffuser.

Key Features
  • Aluminium extruded sections in 15 standard lengths
  • Bespoke lengths available in multiple increments of 560mm and 280mm
  • Colour options in 3000K/4000K
  • Custom shapes available subject to design
  • Incorporates European-branded LED drivers
  • Utilises latest generation long-life LEDs from leading manufacturers
  • Dimmable and emergency options are available
  • Compatible with Casambi wireless switching system
  • Uniform light and controlled beam with specialised diffuser
  • Low UGR
  • Energy efficient with over 150lm/W
  • Lifetime >80,000h L80 B10
  • CRI>80
  • 5-year warranty
