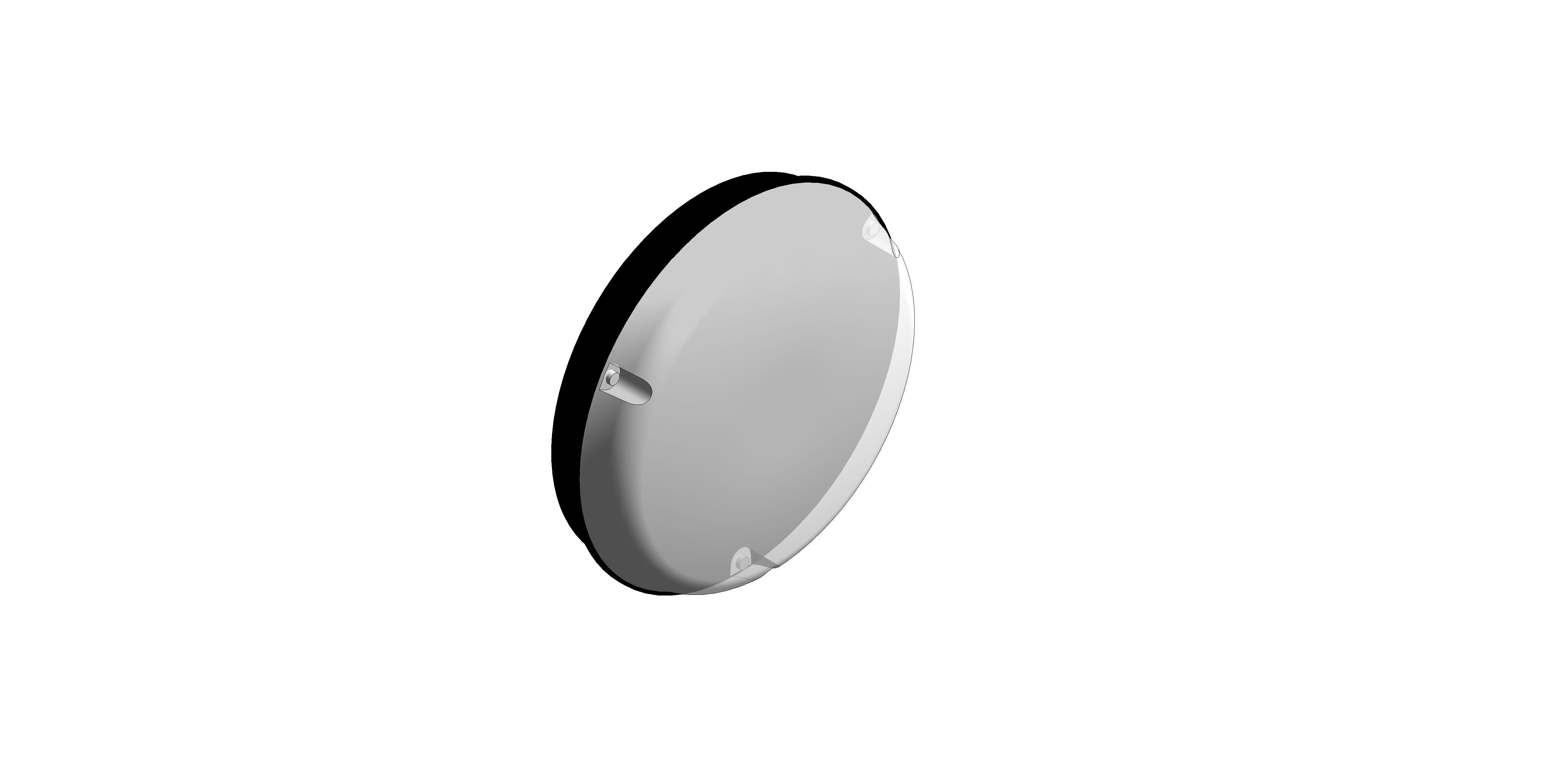

Cohort (die-cast) Bulkhead Lighting

  • Product: Cohort (die-cast) Bulkhead Lighting
  • Product: Cohort (die-cast) Bulkhead Lighting
  • Product: Cohort (die-cast) Bulkhead Lighting
  • Product: Cohort (die-cast) Bulkhead Lighting
SketchfabSketchfab
  • Views 714
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

14/12/2022

Available for:
  • Logo: Autodesk Revit

The Cohort has been manufactured to be tough and easy to install. The fitting base is manufactured using high-grade polycarbonate material and is mounted on a hinged metal gear tray for quick installation. The diffuser is made from top-quality thermoplastic polymers that have been designed to maximise the light output ratio (LOR). The 4000K standard option provides consistent, bright illumination to keep high-risk areas well lit as a deterrent and safety measure.

For additional protection in high-risk areas, the die-cast variant of the Cohort is IK10 rated, meaning it is protected against 20 joules on impact. This makes it extremely safe and vandal-proof for your peace of mind. All models are 320mm in diameter and 94mm in height and the Cohort die-cast luminaire is available in 14W and 20W models. An eyelid option of this luminaire is also available.

Key Features
  • Die-cast aluminium base
  • High performance polycarbonate diffuser
  • BESA box and conduit entries
  • Presence detection options
  • Stainless steel anti-tamper screws
  • Suitable for interior or exterior use
  • Hinged gear tray
  • IP65
  • 3000K available
  • Eyelid option available
  • IK10 Rated
