ModuLite Window System

Description

Open the Window of Opportunity with Keylite’s New ModuLite Window System

The Keylite ModuLite System offers a contemporary alternative to a traditional in roof dormer. With increased natural daylight offering and improved thermal performance amongst some of its many benefits.

Click here to visit Keylite Roof Windows for more information.

Object Data

1 Revision

Last Updated

04/07/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

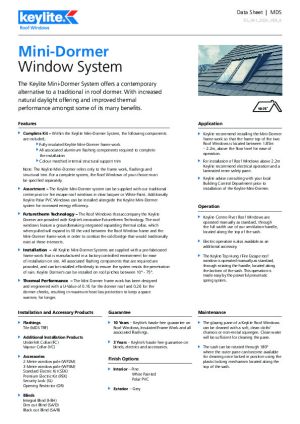

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/bb227335-dffe-4820-87ad-d38f4a3b4be8/document/object-user-guide
Accessibility Performancen/a
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_ModuLite
Classification NameUniclass2015
Classification ValuePr_30_59_98_97
Code Performancen/a
ColorInterior: White (RAL 9016) Exterior: Grey (RAL 7016)
Constituentsn/a
Created Byinfo@keyliteuk.com
Created On2025-01-28T09:00:00
Default Elevation0 mm
Define Thermal Properties bySchematic Type
Depth120 mm
DescriptionThe Keylite ModuLite System offers a contemporary alternative to a traditional in roof dormer. With increased natural daylight offering and improved thermal performance amongst some of its many benefits.
Documentation Certificateswww.bimstore.co/products/bb227335-dffe-4820-87ad-d38f4a3b4be8/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/bb227335-dffe-4820-87ad-d38f4a3b4be8/document/installation-guide
Documentation Literaturewww.bimstore.co/products/bb227335-dffe-4820-87ad-d38f4a3b4be8/document/product-literature
Documentation Maintenancewww.bimstore.co/products/bb227335-dffe-4820-87ad-d38f4a3b4be8/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/bb227335-dffe-4820-87ad-d38f4a3b4be8/document/technical-data-sheet
Duration UnitYears
Expected Life0
Features2. No CP04 Windows. Fully insulated Keylite ModuLite frame work. All associated aluminum flashing components required to complete the installation. Colour matched internal structural support trim
FinishInterior: Laquered Pine Exterior: Powder Coated Aluminium
Graden/a
Height980 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
KeynoteL10
ManufacturerKeylite
Manufacturer NameKeylite
MaterialLaminate, Pine, Aluminum
ModelMini Dormer
Model NumberMDS04
Model ReferenceModuLite
NBS DescriptionWood frame roof window units
NBS Object NameKeylite - Wood frame roof window units
NBS Office Master Tagn/a
NBS Reference45-25-99/390
Nominal Depth0 mm
Nominal Height1575 mm
Nominal Length1698 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Rough Height1575 mm
Rough Width1698 mm
ShapeRectangle
SizeWindow Size: 780x980mm (WxH) / Structural Opening Size: 1698x1575mm (WxH)
Spare Partsn/a
Type CommentsMDS04 - Window Size: 780x980mm (WxH) / Structural Opening Size: 1698x1575mm (WxH)
Type NameMDS04
URLwww.keyliteroofwindows.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keyliteuk.com
Width780 mm
Window TypeRW_CP : 780mm (W) x 980mm (H) - CP 04
