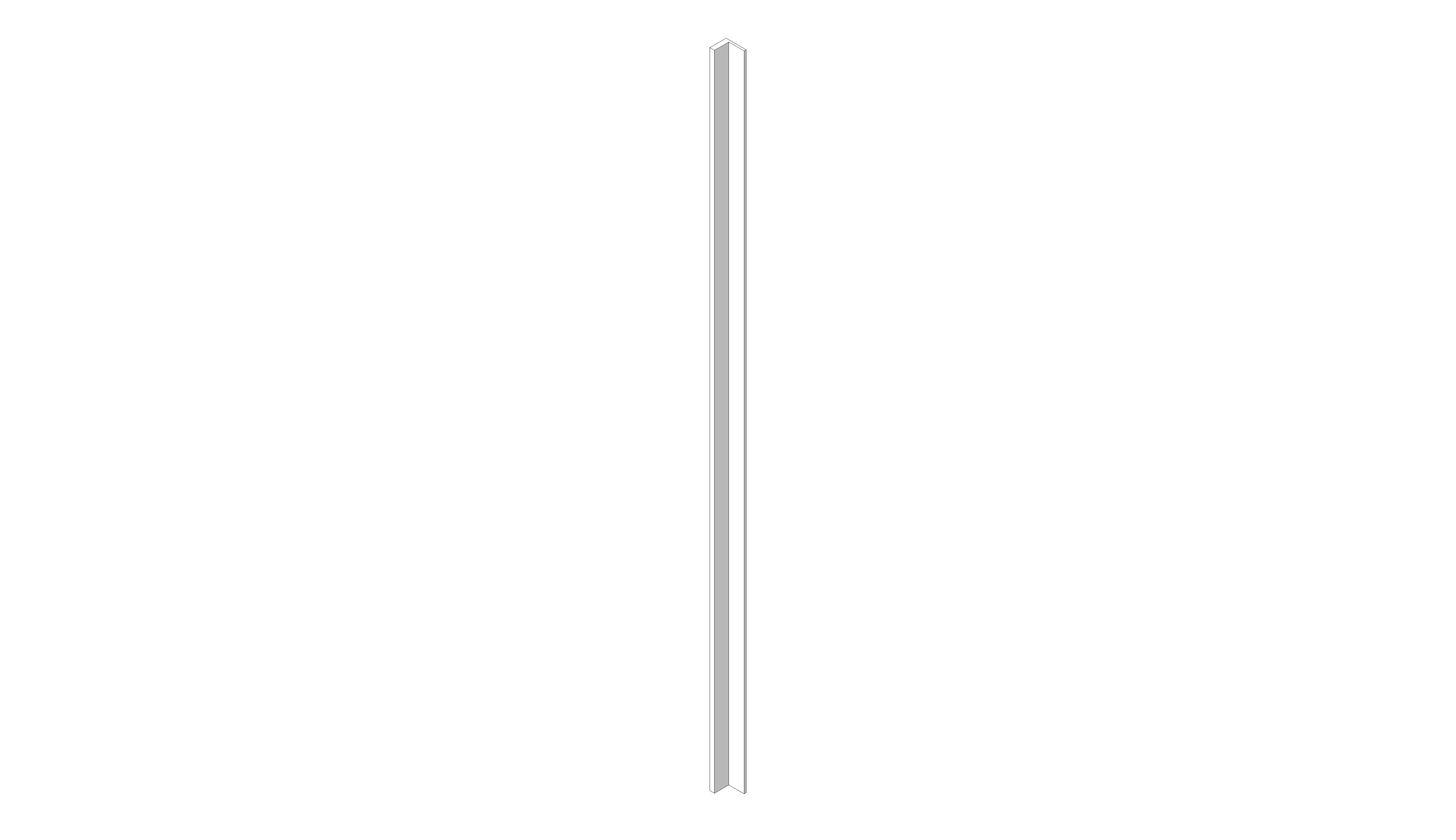

MK1A

Description

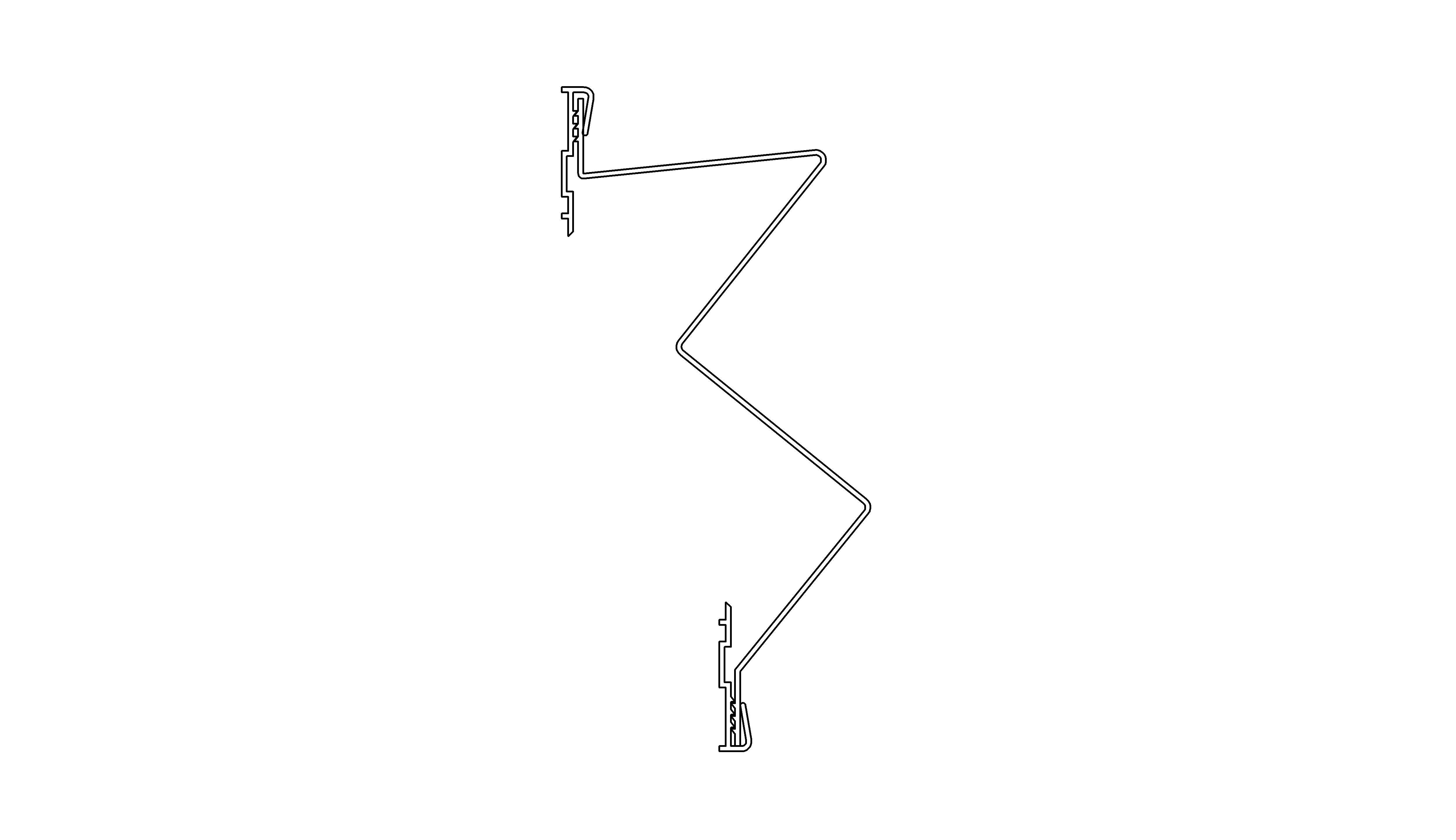

The MK1A is suitable for doors in wood, metal, aluminium, stainless steel and crittal. Allowing a full 180 degrees on butt hung doors to a maximum opening of 12.5cm(5in).

www.fingersafegroup.com/

Object Data

1 Revision

Last Updated

07/06/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/assets/__/products/documents/images/2019/05/28/6bb39ca0-ad5d-435d-9c1e-518c3e122b82.jpg
Accessibility Performancen/a
Analytic Construction<None>
Assembly CodeC1020410
Asset TypeFixed
BIM Object NameFingersafe_Doors_AntiFingerTrapStiles_MK1A
Classification NameUniclass2015
Classification ValuePr_30_36_36_04
Code Performancen/a
ColorBlack, brown, caramel, cream, dark blue, dark grey, light grey, red, white, yellow
Constituentsn/a
Created Bysafety@fingersafegb.com
Created On2019-05-24 T09:00:00
Default Elevation10 mm
DescriptionDoor safety product that ejects fingers from the opening hinge side of a door.
Documentation Certificateswww.fingersafegroup.com
Documentation Installation Guidewww.bimstore.co/assets/__/products/documents/images/2019/05/28/0a11cbf8-63ab-4be5-bca5-f42edc4783f0.jpg

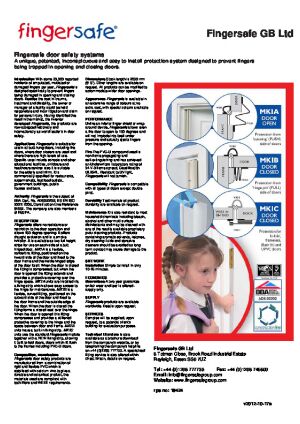

Documentation Literaturewww.bimstore.co/assets/__/products/documents/images/2019/05/28/0b81b5c7-6b35-4986-90cf-8d3773f26293.jpg
Documentation Maintenancewww.fingersafegroup.com
Documentation Technicalwww.fingersafegroup.com
Duration UnitYears
Expected Life0
Featuresn/a
Finger Guard Height1930 mm
Fingerguard MaterialFingersafe_PVC_White
FinishRigid PVC stabilized with calcium zinc
Graden/a
Height1930 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeNOTDEFINED
KeynoteN10
Length60 mm
ManufacturerFingersafe
Manufacturer NameFingersafe
MaterialPVC and TPE
ModelAnti-fingertrap stile
Model NumberMK1A
Model ReferenceAnti-fingertrap stile
NBS DescriptionAnti finger-trap stiles
NBS Object NameFingersafe Anti finger-trap stiles
NBS Office Master Tagn/a
NBS Reference45-25-42/310
Nominal Depth49 mm
Nominal Height1930 mm
Nominal Length60 mm
Production Year2019
Referenced StandardISO 9001
Replacement Cost0
Rough Height1930 mm
Rough Width49 mm
Shapen/a
Size1930mm
Spare Partsn/a
Thickness0 mm
Type CommentsMK1A
Type NameAnti-fingertrap stile
URLwww.fingersafegroup.com
Warranty DescriptionTwo year guarantee on fair wear and tear
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsafety@fingersafegb.com
Warranty Guarantor Partssafety@fingersafegb.com
Width49 mm
