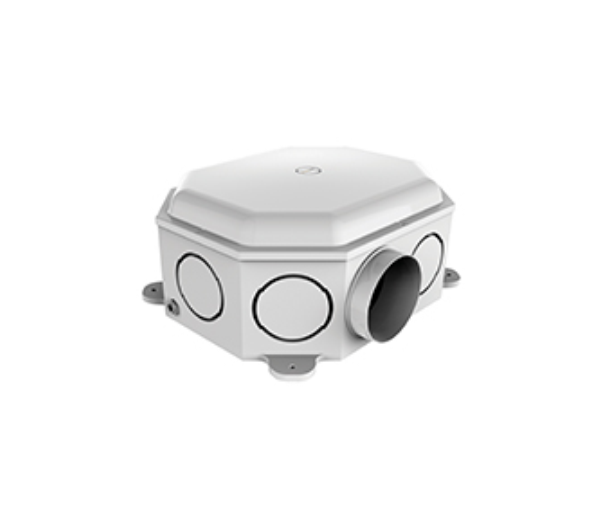

The MEV Spider from EnviroVent is a low energy, continuous mechanical extract ventilation system designed with multiple extract points to simultaneously draw moisture-laden air out of the wet rooms, whilst minimising the migration of humidity to other rooms.

Innovative and low energy, the MEV Spider has been designed to provide continuous mechanical extract ventilation in accordance with current building regulations.

Key Features

  • EC Motor (Incorporates a powerful backward curved EC motor.)
  • Made In The UK (Supporting our local economy, lowering the carbon footprint.)
  • Intellitrac Conrols (The system constantly monitors the humidity level meaning no user intervention is needed.)
  • Wireless (Available with wireless remote control.)
  • 5 Year Warranty (High quality products for peace of mind, saving time, money and hassle.)

How does it work?

The extract unit is centrally located in a cupboard or loft, with ducts running from the unit to the kitchen, bathroom, en-suite and other wet zones. Ideal for use in houses, apartments and communal residences, the unit provides high centrifugal performance with low running noise. The MEV Spider is SAP PCDB Listed and comes with a full five year warranty.

Rapid Installation

The compact size of the unit and its unique spigot configuration allows easy installation into any vertical or horizontal application and is ideal for restricted spaces. With up to nine spigot connection points the unit offers optimal versatility.

The easy push button commissioning pad enables the installer to correctly set the required airflow rate quickly and effectively.

Intellitrac® Controls

The system continuously operates at a low level to ensure that the home is correctly ventilated, providing all year round good indoor air quality. Incorporated within the MEV Spider is the unique Intellitrac® Technology as standard, which constantly monitors the humidity level, meaning no user intervention is required.

As humidity rises and falls, the motor speed rises and falls in direct correlation. This controls condensation quietly and efficiently, reducing the periods of time when the system operates on maximum speed, saving energy.

Ease of Installation

The compact size of the unit and its unique spigot configuration allows easy installation into any vertical or horizontal application and is ideal for restricted spaces.

With up to 9 spigot connection points the unit offers optimal versatility.

Control Options

The MEV Spider is supplied with a remote controlled boost switch as standard offering ultimate control to the user. The unit is fully commissionable to high and low rates to ensure optimum performance and efficiency.

Product Codes

Product Code

Product Name

Product Description

MEVS-WMEV Spider - WirelessStandard wireless unit with humidity tracker and remote control
MEVS-HMEV Spider - Hard WiredHard wired unit with humidity tracker
