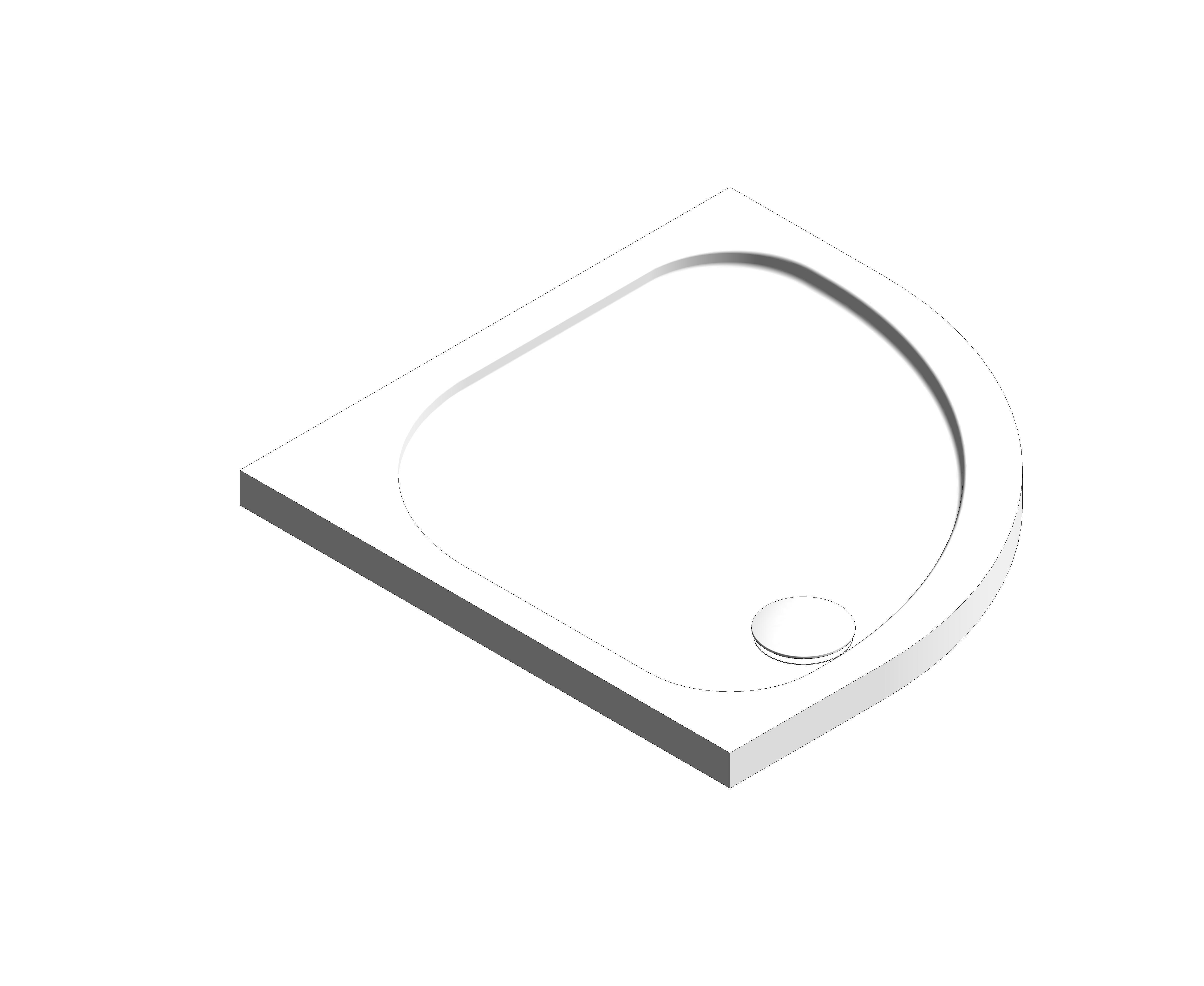

MERLYN - Slip Resistant OS Quad Tray

Description

These shower trays are rigid and strong double skin stone resin trays, ideal for low level installation and sleek and sophisticated in design. It features an anti-bacterial coating that protects against bacteria, stains and odours.

Object Data

1 Revision

Last Updated

15/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/products/merlyn-slip-resistant-os-quad-tray/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010710
Asset TypeFixed
BIM Object NameMerlyn_Casework_ShowerTray_SlipResistant_OSQuadTray
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorWhite
Connector Diameter40 mm
Constituentsn/a
Created Byspec@merlyn.ie
Created On2021-05-19T09:00:00
Depth800 mm
DescriptionOur new Slip Resistant Shower Trays are designed in a beautiful matt white finish, without the harsh surface texture sometimes experienced in an anti-slip finish.
Documentation Certificateswww.bimstore.co/products/merlyn-slip-resistant-os-quad-tray/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/merlyn-slip-resistant-os-quad-tray/document/installation-guide
Documentation Literaturewww.bimstore.co/products/merlyn-slip-resistant-os-quad-tray/document/product-literature
Documentation Maintenancewww.bimstore.co/products/merlyn-slip-resistant-os-quad-tray/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/merlyn-slip-resistant-os-quad-tray/document/technical-data-sheet
Duration UnitYears
Expected Life10
FeaturesSingle skinned with moulded solid under section. Made from Stone Resin.50mm high to achieve minimalist design. 135mm high including tray panel kit. Compatible 90mm fast flow waste also available. Available as low level or with tray panel kits for easy installation. 10 year guarantee. The anti-slip properties are part of the acrylic capped ABS surface and not added as a separate coating, giving this shower tray excellent durability with slip resistant technology that cannot be removed.
Graden/a
Height50 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
Left HandedYes
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialABS Capped ABS Sheets
Material Merlyn Shower TrayMeryln - Shower Tray - White
ModelTouchstone Offset Quadrant Tray
Model NumberS108QLASTO
Model ReferenceTouchstone Offset Quadrant Tray
NBS DescriptionShower trays
NBS Object NameMerlyn - Shower trays
NBS Office Master Tagn/a
NBS Reference45-35-70/336
Nominal Depth800 mm
Nominal Height50 mm
Nominal Length1000 mm
Product CodeS108QLASTO
Production Year2021
Referenced StandardCE Standards
Replacement Costn/a
Righ HandedNo
ShapeRectangular
Size1000mm x 800mm - Left Handed
Spare Partsn/a
Type Comments1000mm x 800mm - Left Handed
Type Name1000mm x 800mm - Left Handed
URLmerlynshowering.com/
Warranty Description10 years
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborspec@merlyn.ie
Warranty Guarantor Partsspec@merlyn.ie
Waste Position A350 mm
Waste Position B130 mm
Width1000 mm
