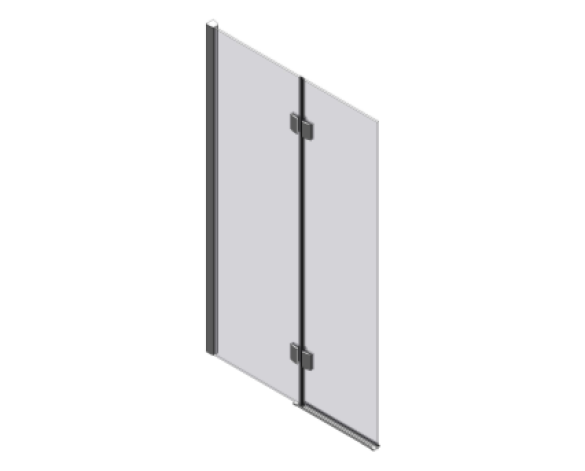

MERLYN - MB7 Bathscreen

Description

The signature piece of the Merlyn Bath Screen collection, this striking Two Panel Hinged Bath Screen with 8mm toughened safety glass is the ultimate in in-bath showering.

By means of a secure 180 degree inwards swing, you can position the glass to deflect any shower spray.

This download is for the MB7 Bathscreen Range created by bimstore.co.uk for Merlyn.

Object Data

1 Revision

Last Updated

02/11/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

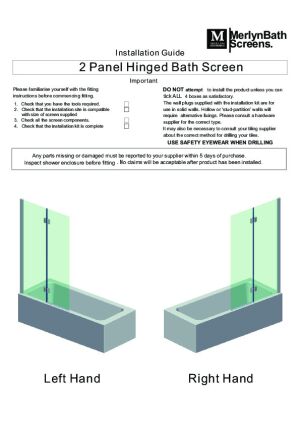

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/products/merlyn-mb7-bathscreen/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameMerlyn_Casework_Bathscreen_MB7
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Byinfo@merlyn.ie
Created On2016-09-01-T00:00:00
Depth0 mm
DescriptionThe signature piece of the Merlyn Bath Screen collection, this striking Two Panel Hinged Bath Screen with 8mm toughened safety glass is the ultimate in in-bath showering.
Documentation Certificateswww.bimstore.co/products/merlyn-mb7-bathscreen/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/merlyn-mb7-bathscreen/document/installation-guide
Documentation Literaturewww.bimstore.co/products/merlyn-mb7-bathscreen/document/product-literature
Documentation Maintenancewww.bimstore.co/products/merlyn-mb7-bathscreen/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/merlyn-mb7-bathscreen/document/technical-data-sheet
Duration UnitYears
Expected Life30
FeaturesMershield Stayclear protected glass, 500mm fixed panel & 400mm moving panel, 180 degree hinged moving panel, built in stop mechanism prevents contact between moving panel and fixed panel in a closed position, Left or right handed, Lifetime Guarantee.
Glass Thickness8 mm
Graden/a
Height1500 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
Left HandedYes
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
ModelMB7L Bathscreen
Model NumberMB7L
Model ReferenceMB7L Bathscreen
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Nominal Depth0 mm
Nominal Height1500 mm
Nominal Length900 mm
Product CodeMB7L
Production Year2016
Referenced StandardCE Standards
Replacement Costn/a
Right HandedNo
ShapeRectangular
Size1500mm x 900mm
Spare Partsn/a
Swing Zone RNo
Type CommentsMB7L - Two Panel Hinged Bath Screen - Left Handed
Type NameMB7L - Two Panel Hinged Bath Screen - Left Handed
URLwww.ionicbymerlyn.com
Warranty DescriptionLifetime
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@merlyn.ie
Warranty Guarantor Partsinfo@merlyn.ie
Width900 mm
